ESS CON BLACK+BLACK WITH 50SQMM/250AMP/450MM

ESS CON BLACK+BLACK WITH 50SQMM/250AMP/450MM

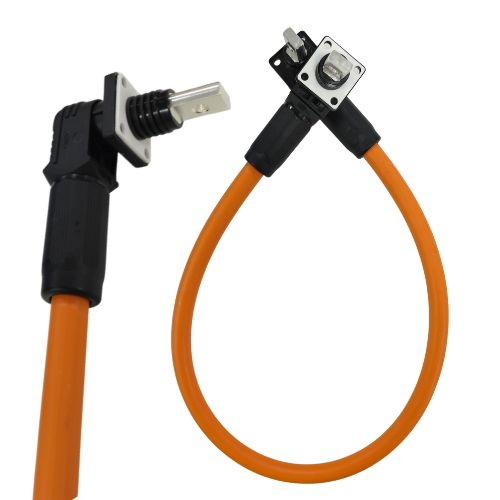

The ESS CON BLACK+BLACK WITH 50SQMM/250AMP/450MM is a pre-assembled high-current ESS battery interconnect identified with black connector ends, 50 sq mm cable, a 250A current-class reference and a 450 mm finished length. It is intended for energy-storage and battery-cabinet power wiring where a ready-made connector-and-cable assembly can reduce fabrication time and improve repeatability. Search terms include 50 sq mm ESS cable, 250A battery connector cable, 450 mm battery interconnect, high-current energy storage cable and black ESS connector harness.

The 50 sq mm conductor size provides a heavy cross-section for demanding DC systems, while the 450 mm length is suited to short battery-module, busbar or inverter connections when the physical layout matches. The 250A figure in the SKU is a system/component current-class reference; safe continuous current depends on conductor material, insulation temperature rating, connector contacts, termination quality, ambient temperature and duty cycle. The complete cable assembly should therefore be evaluated as one current path.

High-current DC assemblies are sensitive to resistance at every interface. Cable resistance creates voltage drop along the conductor, while poor crimps or partially seated contacts can create concentrated heating at the ends. During installation, both connector engagement and cable routing matter: the cable should not be twisted, sharply bent or forced to carry the mechanical load of the connector housing.

Black-to-black identification can support consistent cable organization in battery cabinets, but color alone should not be used to determine polarity. Confirm positive and negative routing from the battery and equipment drawings and verify with a meter before connection. In parallel battery systems, each branch should be protected and sized so current sharing remains within the intended limits; this cable assembly does not replace fuses, breakers or BMS protection.

Match the harness to the mating ESS connector, cable cross-section, current duty, battery voltage, terminal orientation and required 450 mm routing distance. Confirm that the connector system is compatible with the equipment panel or battery module and that the cable exits in the correct direction without excessive bending. For replacement work, compare both connector ends and conductor length with the original harness.

Applications

• ESS battery cabinet and module interconnections.

• Solar storage and inverter battery power wiring.

• UPS, telecom and industrial backup battery systems.

• High-current lithium battery banks and DC distribution assemblies.

• Battery manufacturing, testing and service where a pre-terminated 50 sq mm lead is required.

Installation Guide

De-energize the battery system before fitting the harness and verify polarity at both ends. Fully seat and lock each connector, support the cable so its weight does not pull on the contacts and keep the lead away from sharp metal edges. Do not bend the cable tightly at the connector exit. After commissioning, apply load gradually and inspect both connector ends and the cable for abnormal temperature rise. Recheck the installation after initial thermal cycling or vibration if the equipment operates in a demanding environment.
