ESS CON 250A DUAL PORT ORANGE

ESS CON 250A DUAL PORT ORANGE

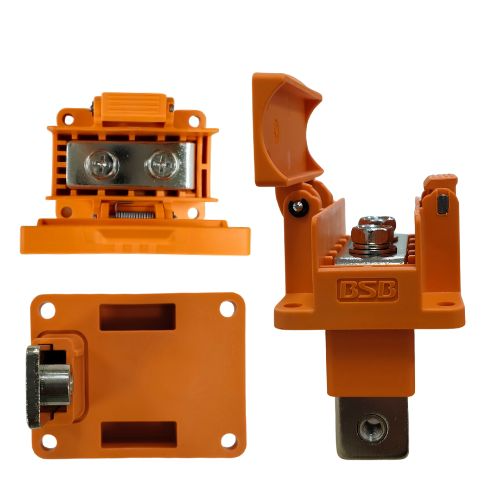

The ESS CON 250A DUAL PORT ORANGE is a high-current dual-port ESS connector identified for a 250A current class and orange housing. It is intended for battery and energy-storage power interconnection where a compact, serviceable connector interface is preferred over a permanently fixed cable joint. Relevant buyer searches include 250A ESS connector, dual-port battery connector, energy storage connector, lithium battery power connector and high-current DC battery connector.

The dual-port format is useful in battery cabinets and modular storage systems where power connections may need to be distributed, paralleled or routed through a repeatable connector interface. The 250A figure is a product current-class reference rather than a guarantee that every cable, terminal and installation can safely operate at 250A continuously. System current capability is limited by the complete path, including contacts, conductor cross-section, crimp quality, mating condition, enclosure temperature and duty cycle.

High-current DC connections depend on low contact resistance and stable mechanical engagement. Even a small increase in resistance at a connector interface can create significant heating as current rises, so contact surfaces, cable terminations and mating force matter. The connector should be used only with compatible mating hardware and correctly sized conductors, and the cable termination method should follow the contact design rather than being improvised.

The orange housing supports visual identification in multi-cable battery systems, but color must not be treated as the only polarity control. Polarity should be confirmed from the wiring diagram and measured before connection. When a dual-port connector is used for parallel battery modules or power distribution, every branch must be engineered for current sharing, fuse protection and fault isolation. A connector does not replace a properly rated fuse, breaker or BMS.

Match this connector to the intended mating connector, contact size, cable cross-section, operating current, battery voltage and enclosure geometry. Check whether the installation requires finger-safe protection, keyed polarity, panel mounting, locking hardware or a specific cable-exit direction. For replacement work, compare the housing profile and contact arrangement with the existing connector rather than selecting by the 250A marking alone.

Applications

• Lithium battery and LiFePO4 battery cabinet power interconnections.

• Solar and stationary energy-storage systems using high-current DC bus connections.

• Inverter, UPS and telecom battery installations with compatible connector hardware.

• Modular battery banks and parallel pack architectures engineered for the required current.

• EV, industrial DC and battery-test systems where the connector geometry is compatible.

Installation Guide

De-energize the battery circuit before fitting or removing high-current connectors. Verify polarity with a meter, use the correct crimping or termination tooling and inspect the contact for full insertion and locking. Route cables without sharp bends or continuous side-load on the housing. After commissioning, check for abnormal temperature rise under realistic load and re-inspect the connection after initial thermal cycling. Do not mate or unmate the connector under load unless the exact connector system is specifically rated for that operation.
