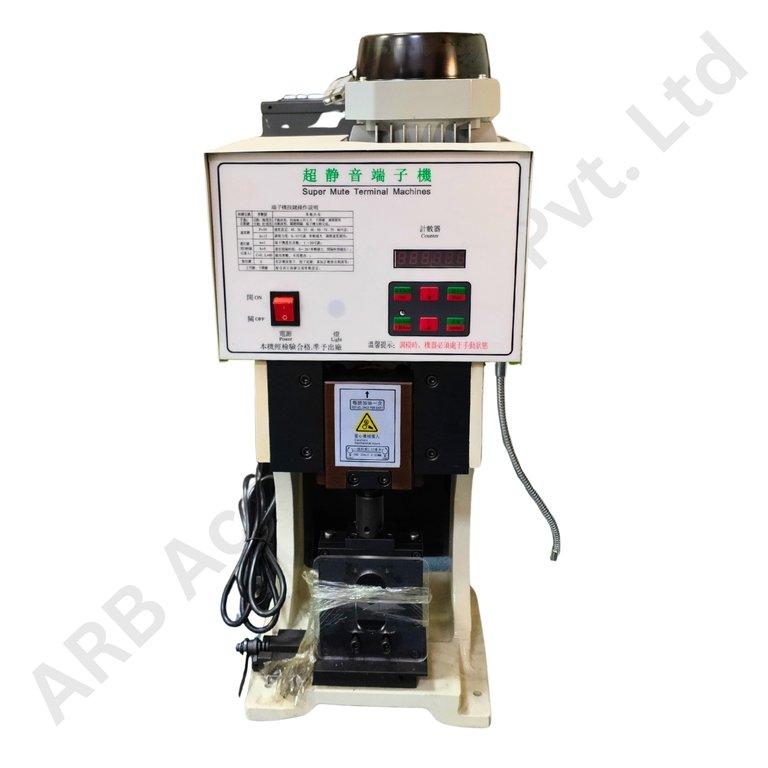

ELECTRIC TERMINAL CRIMPING PRESS MACHINE 4 TONS

ELECTRIC TERMINAL CRIMPING PRESS MACHINE 4 TONS

The Electric Terminal Crimping Press Machine 4 Tons is a bench-style production press designed to create repeatable mechanical and electrical crimps on compatible wire terminals using a matched applicator or die set. A 4-ton press class is commonly used in wire-harness, battery-pack, automotive, EV and industrial electrical assembly where manual hand-crimping becomes too slow or inconsistent for repeated production work. The machine provides controlled press force through a fixed crimping cycle, allowing operators to prepare larger batches of terminals with better repeatability.

Crimp quality depends on the complete tooling system: press, applicator, terminal, conductor size, strip length and setup height. The machine therefore works as a production platform rather than as a universal die that automatically fits every terminal.

The 4-ton rating refers to the press-force class available at the crimping mechanism. That force gives the machine the mechanical capacity to form many common open-barrel, closed-barrel and loose-piece terminals when the correct applicator is installed. In production, the objective is not simply maximum force; the goal is a controlled crimp profile that compresses the conductor and terminal barrel to the dimension required by the terminal design.

Electric crimping presses are valued for cycle repeatability and operator productivity. The motor-driven press performs the crimp stroke in a consistent motion, while foot-pedal or switch activation on many machines lets the operator position the wire and terminal before each cycle. Tool alignment, shut height, die condition and terminal feed are the factors that determine whether a 4-ton press produces a reliable crimp.

Select applicators and dies specifically for the terminal family being processed. Confirm that the required crimp force is within the 4-ton machine class and that the applicator mounting style matches the press. Wire cross-section alone does not determine compatibility; terminal material, barrel geometry, insulation support and crimp profile also matter. For battery and EV harnesses, validate finished crimps using the required pull-force, crimp-height or electrical-resistance checks defined by the production quality plan.

Applications

1. Battery pack wire-harness terminal crimping

2. EV and automotive wiring production

3. Connector and cable assembly lines

4. Industrial control-panel harness manufacturing

5. Appliance and electronics cable production

6. Workshop or OEM terminal preparation

Installation Guide

Install the press on a rigid workbench and secure it according to the machine instructions. Fit the approved applicator or die, set the crimp height/shut height using the tooling procedure and test the setup using sample terminals and the actual production wire. Check conductor strip length and insertion position before running a batch. Keep hands outside the crimp area, use the fitted guard and emergency controls, and never adjust tooling while the machine is energized. Inspect applicators, fasteners and moving parts regularly and revalidate crimp quality after any tooling change or maintenance work.
