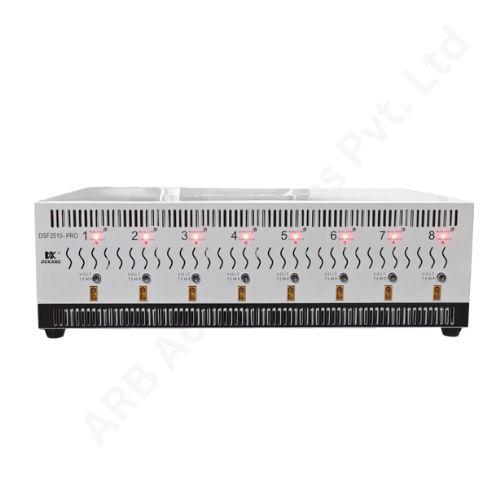

DK BATTERY TESTERS DT2020-8 5V20A

DK BATTERY TESTERS DT2020-8 5V20A

The DK BATTERY TESTERS DT2020-8 5V20A is a battery test instrument intended for measurement, evaluation and quality-control work on individual cells and low-voltage battery modules. It is relevant to battery production lines, service workshops, cell grading, pack maintenance and R&D environments where decisions should be based on measured voltage, resistance, capacity or charge/discharge behavior rather than visual inspection alone. The exact function set depends on the model, so buyers should match the tester to the voltage range, current range, number of channels and battery format required by their workflow.

Battery test data is only useful when the measurement method is repeatable. Contact resistance at probes, clamps or fixtures can distort low-resistance readings, while incorrect current ranges or unstable connections can affect charge/discharge results. For production use, the test fixture, cable resistance, calibration interval, ambient temperature and software settings should be controlled so measurements from different batches remain comparable.

DK catalogue material identifies DT2020-8 as an 8-channel tester with charge, discharge, automatic cycling, balance maintenance, internal-resistance testing, capacity grading/matching and data analysis. Each channel is specified for 1-5V operation with charge current from 0.05A to 20A, using LAN communication and software control. Supported battery types listed include LiFePO4, ternary lithium, LiCoO, NiMH and NiCd. These values provide the primary selection envelope for the highlighted model. For resistance or voltage testing, Kelvin or four-wire measurement should be used where the equipment provides it, because separating current-carrying and voltage-sensing paths reduces the effect of lead resistance. For charge/discharge testers, voltage and current cut-off conditions should be programmed to match the exact cell chemistry and manufacturer limits.

Testing should not be used to force an unsafe or visibly damaged battery through a cycle. Cells with swelling, leakage, severe corrosion, punctured insulation or abnormal open-circuit voltage should be quarantined according to the workshop's safety procedure. When multiple channels are available, confirm whether they are fully independent and whether each channel has its own current/voltage control before planning throughput.

Select this tester by confirming the maximum battery voltage, charge/discharge current, number of channels, supported chemistries, fixture style, communication method and required software environment. If the purpose is cell matching, define acceptance bands for voltage, internal resistance and capacity before testing begins. If the purpose is pack maintenance, confirm that the tester's maximum voltage and insulation rating are sufficient for the complete pack rather than only the individual cells.

Applications

• Battery production quality control and incoming-cell inspection.

• Capacity grading, matching and comparative performance testing where supported.

• EV, energy-storage and portable-power battery service workshops.

• R&D, prototype evaluation and long-term battery performance studies.

• Diagnostic testing before battery-pack assembly or repair decisions.

Installation Guide

Install the tester in a dry, ventilated area with the specified AC supply and protective earth. Use only correctly rated probes, clamps and fixtures. Verify polarity before connection and start with conservative current settings. Configure voltage and current limits for the battery chemistry before beginning an automated cycle. Monitor temperature during high-current testing and keep combustible materials away from the test area. Save test data with clear sample identification so results can be traced back to the correct cell or pack batch.
