DK BATTERY TESTERS DSF2010-8 20V 10A

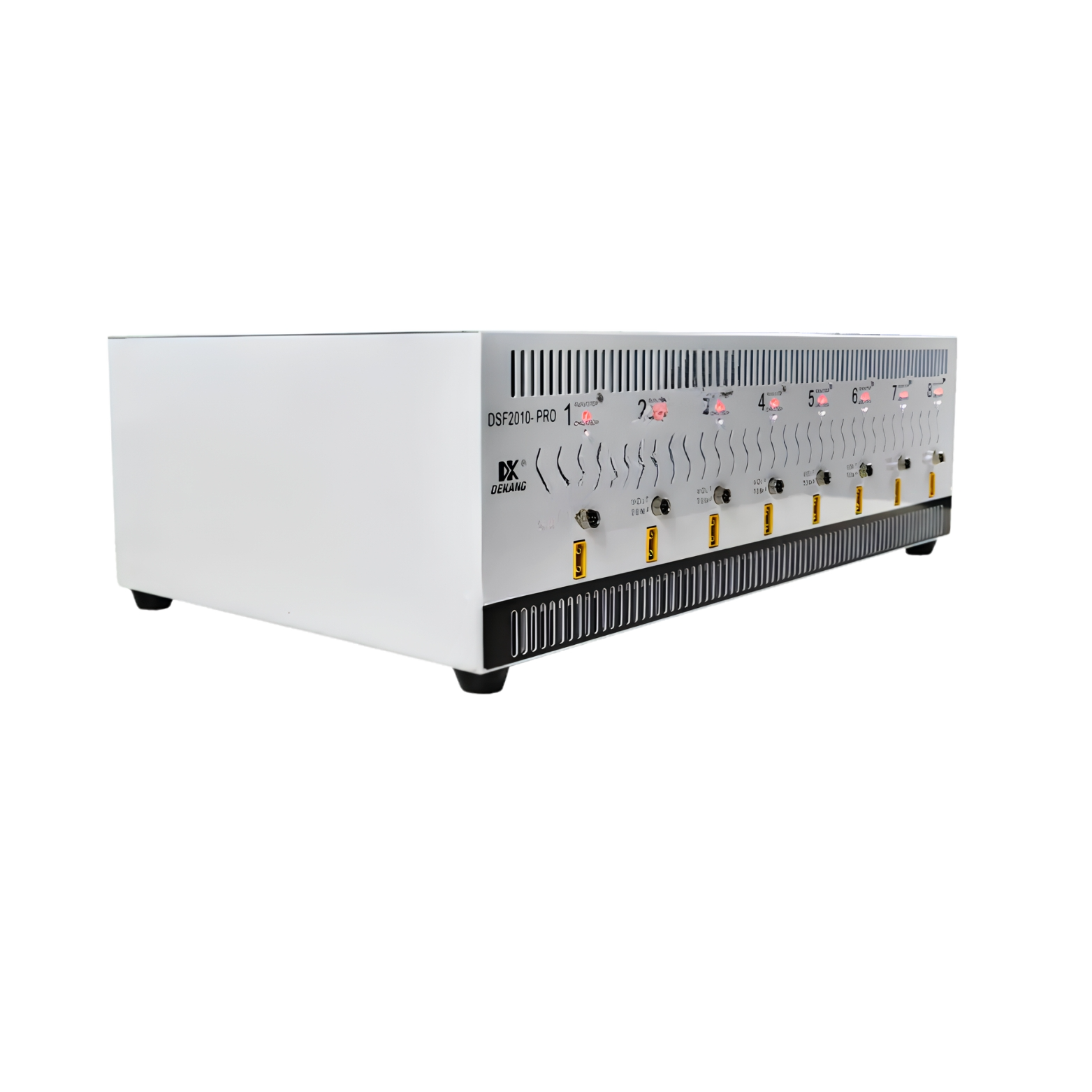

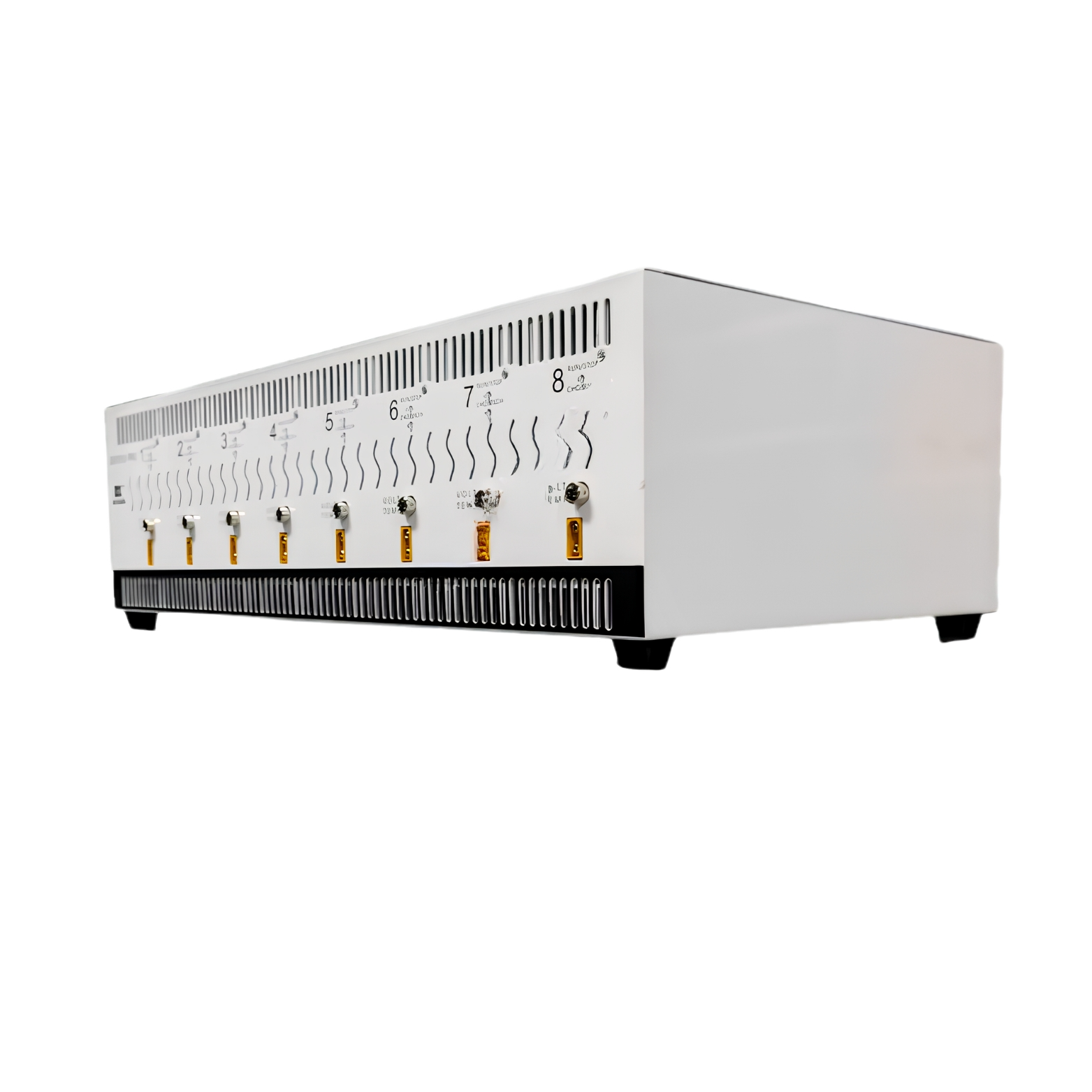

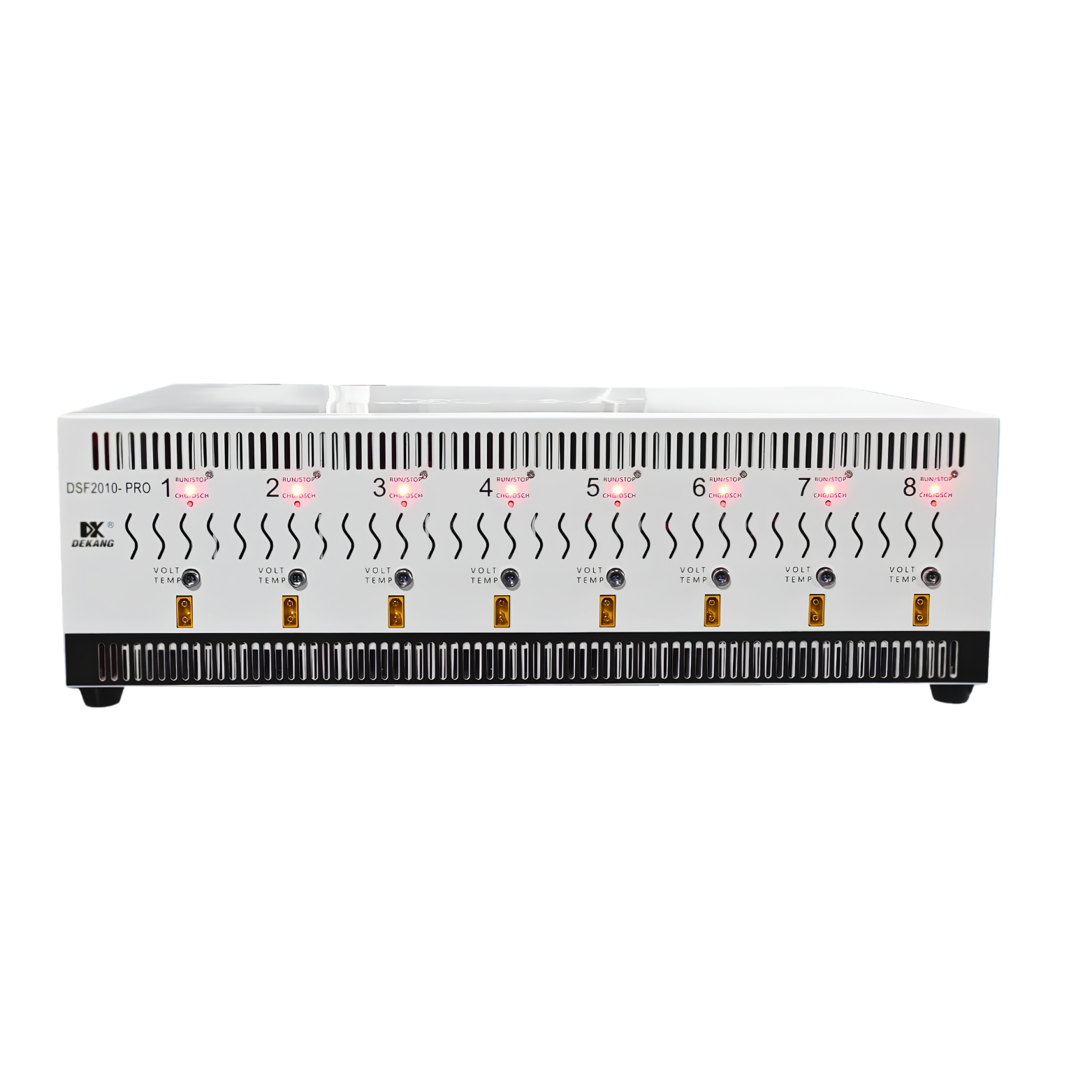

DK DSF2010-8 20V 10A Eight-Channel Battery Module Tester

The DK DSF2010-8 is an eight-channel battery module tester for controlled charge-discharge evaluation. Its 20V 10A class is intended for appropriately matched low-voltage modules and batteries, not direct connection of a complete high-voltage traction pack to one channel.

For module comparison, separate channel records are especially useful. They allow a technician to evaluate identified samples under the same method and investigate differences without losing track of the original module position. The objective is a defensible test result, not simply a large number of simultaneous connections.

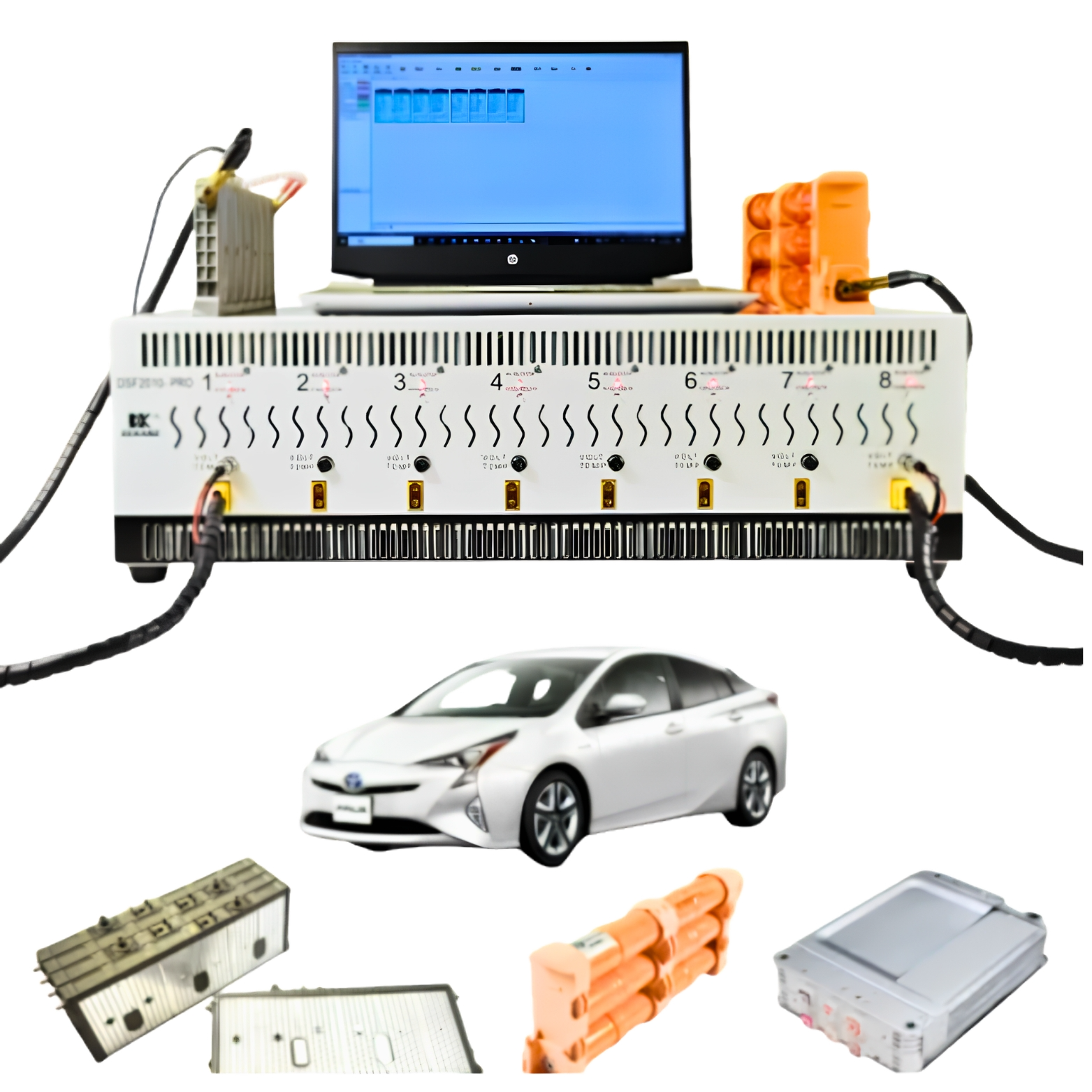

The documented DSF2010 platform provides independent isolated channels, charge-discharge cycling, capacity comparison and DC internal-resistance testing. LAN-connected software supports procedure setup, recorded curves and test-result review. Temperature monitoring is part of the described platform and must be commissioned with the correct sensing arrangement.

A 20V voltage class and 10A current class are equipment limits, not default settings for every module. Match the selected voltage, current and termination conditions to the module specification. DC resistance should be compared at similar temperature and charge condition. A mismatch between capacity and resistance results may justify further investigation rather than an immediate decision to reuse or replace the module.

Confirm the exact DSF2010-8 revision and minimum operating voltage before finalising a procedure. Check whether the module is lithium, nickel-based or lead-acid and use the appropriate charge-termination strategy. A familiar nominal voltage does not establish that the same recipe is suitable for another chemistry.

Channel isolation does not make access to a high-voltage battery assembly risk-free. Qualified personnel must establish the isolation, access and connection method approved for the task. Specify suitable fixtures, temperature sensors and cable routing, and arrange the required computer and network connection. Keep module identification linked to its original assembly position when investigating a returned battery.

Applications

• Capacity comparison of compatible low-voltage modules.

• Controlled battery-module charge-discharge cycling.

• Module-level investigation in qualified service facilities.

• DC resistance and performance comparison.

• Recording module test curves for engineering review.

Installation Guide

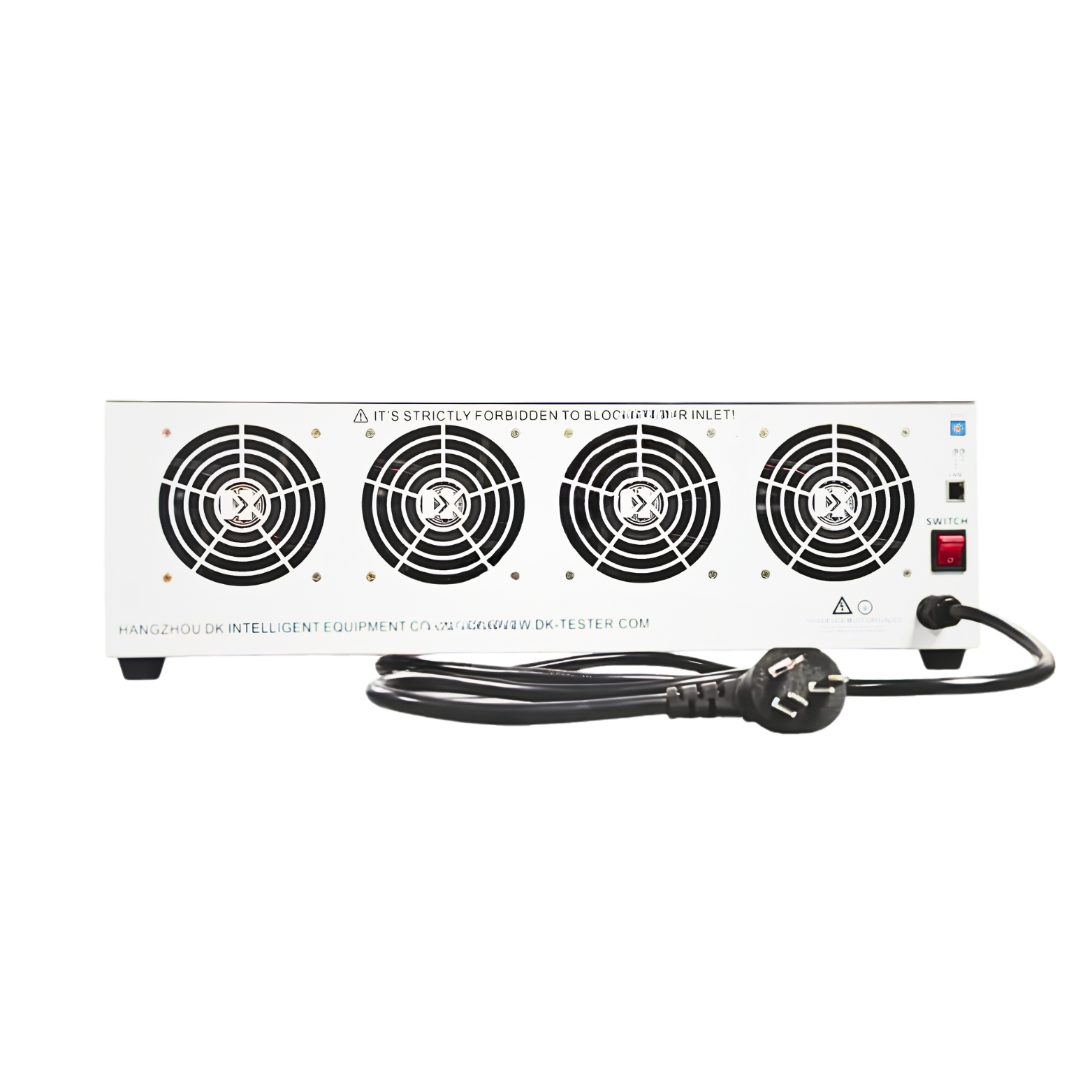

Install the tester with the specified mains service and clear ventilation. Check channel labels, fixture insulation and sensing connections before attaching test samples. Have trained personnel verify the module-voltage limits and approved procedure, particularly when modules originate from a larger battery assembly.

Commission one reference module first, then validate the remaining channels before batch testing. Confirm that software records, channel identifiers and temperature information correspond to the correct physical sample. Stop for abnormal heating, protective interruption or unstable connection. Retain the original test and any later retest as separate records, and inspect leads and fixtures regularly so equipment wear is not mistaken for a change in module condition.
