DIGITAL DISPLAY DC VOLTAGE TESTING MACHINE PS-305D

DIGITAL DISPLAY DC VOLTAGE TESTING MACHINE PS-305D

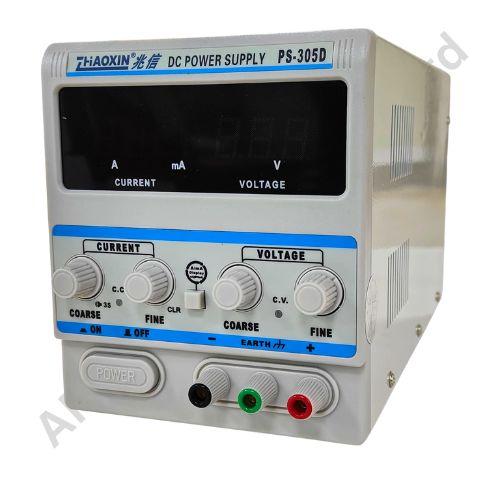

The PS-305D is a digital adjustable DC bench power supply designed to provide a controlled DC voltage and current source for electronics testing, battery-component work and technical service benches. Its regulated 0-30V, 0-5A output range makes it suitable for controlled powering, current-limited troubleshooting and low-voltage circuit testing.

A bench supply is useful whenever a technician needs to energize a circuit without relying on a fixed battery or charger. The operator can set the required voltage, apply a current limit and observe the output on the front display. This makes the PS-305D practical for checking BMS accessories, low-voltage modules, relays, control boards, LEDs and many other DC devices within the supply's operating range.

The PS-305D is a regulated DC bench power supply with an adjustable output range of 0-30V and 0-5A, giving a maximum output-power class of approximately 150W. It operates in constant-voltage and constant-current modes, allowing the user to set a target voltage while also limiting the maximum current available to the connected circuit. Digital voltage and current displays make it practical for electronics development, battery-component testing and service-bench work.

Constant-current limiting is particularly useful during troubleshooting because it helps control fault current when a circuit draws more than expected. The supply can transition from constant-voltage operation into current limiting as the load approaches the selected current threshold. This makes the PS-305D useful for controlled powering of boards, modules and low-voltage circuits where the technician needs both adjustable voltage and visible current feedback.

Use the PS-305D for devices that need 30V DC or less and no more than the supply's 5A output capability. It is not suitable as a direct power source for 48V, 60V or 72V battery systems. For battery charging, only use the unit when the charging method, voltage limit and current limit are appropriate for the exact battery chemistry and when the operator understands the required charge profile. A general bench supply should not be treated as an automatic smart charger.

Applications

1. BMS and battery accessory testing

2. Electronics repair benches

3. DC motor, relay and solenoid testing within rating

4. LED and control-board development

5. Educational and R&D laboratory work

6. Prototyping and troubleshooting low-voltage DC systems

Installation Guide

Set the input-voltage selector correctly, where fitted, before connecting the unit to AC power. Begin with the output voltage turned down, set a suitable current limit and confirm output polarity before connecting the load. Use correctly rated test leads and avoid loose strands at the binding posts. Keep ventilation openings clear, reduce load if the unit overheats and disconnect sensitive devices before changing voltage ranges significantly. For repeatable work, record voltage and current settings as part of the test procedure.
