DALY SOC DISPLAY K-TYPE

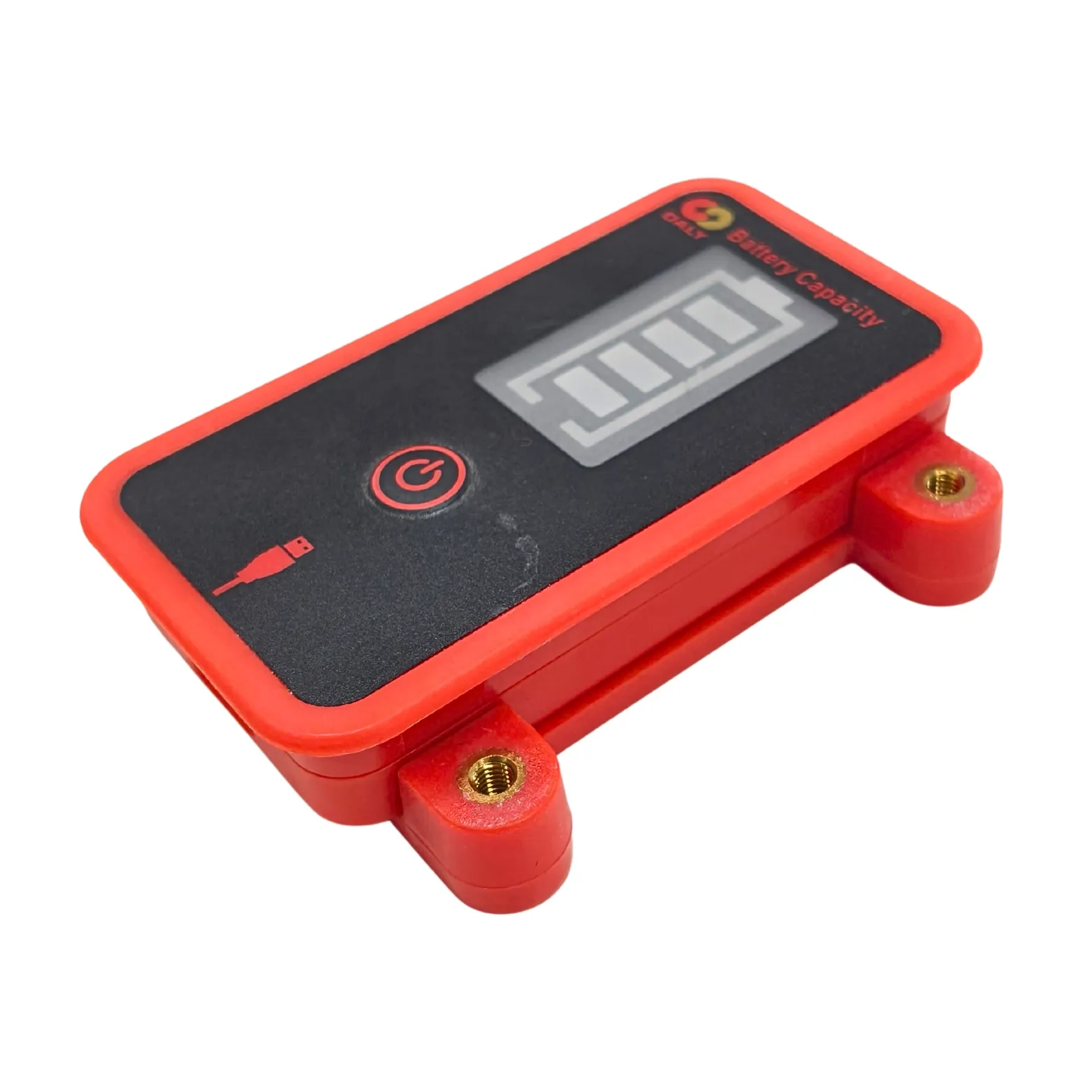

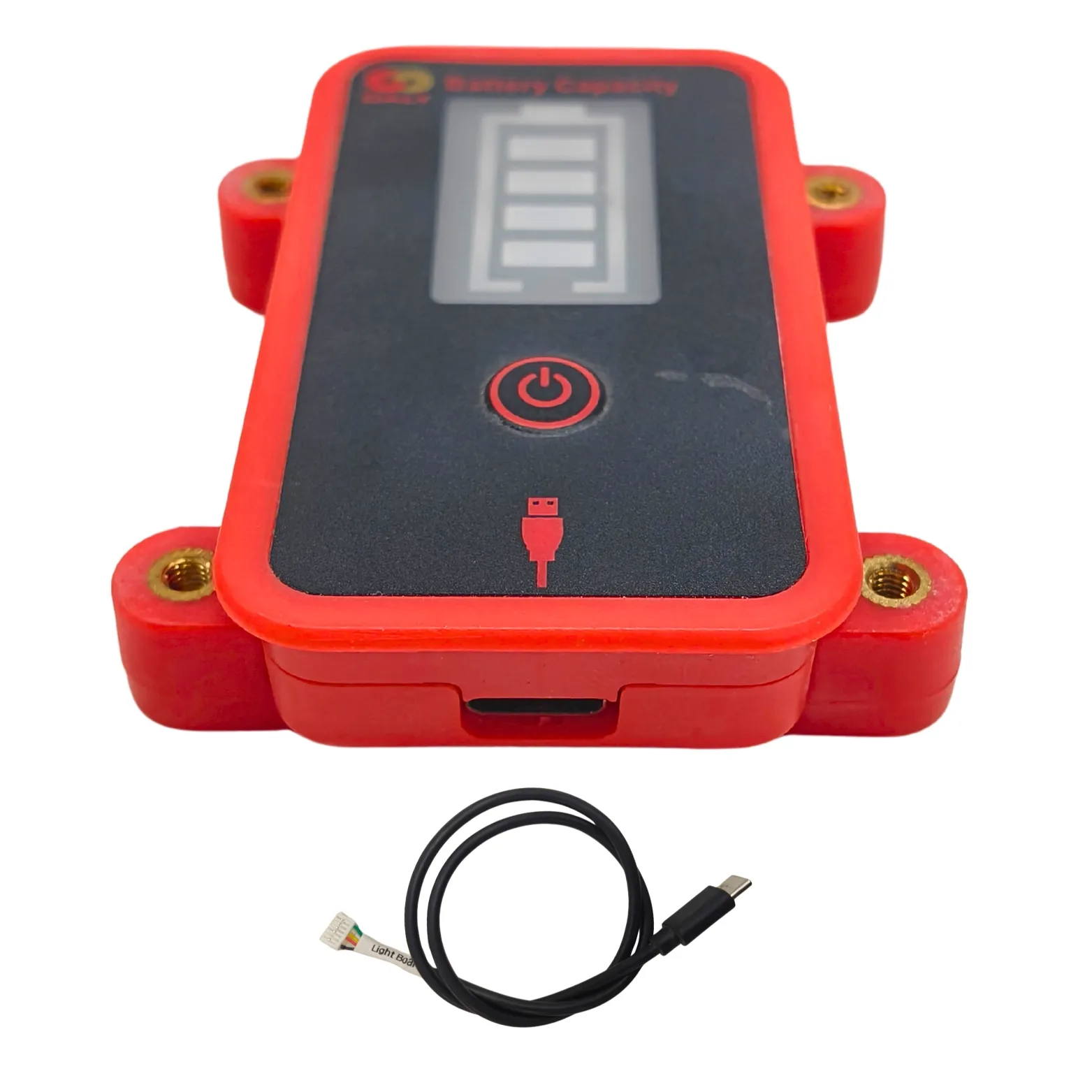

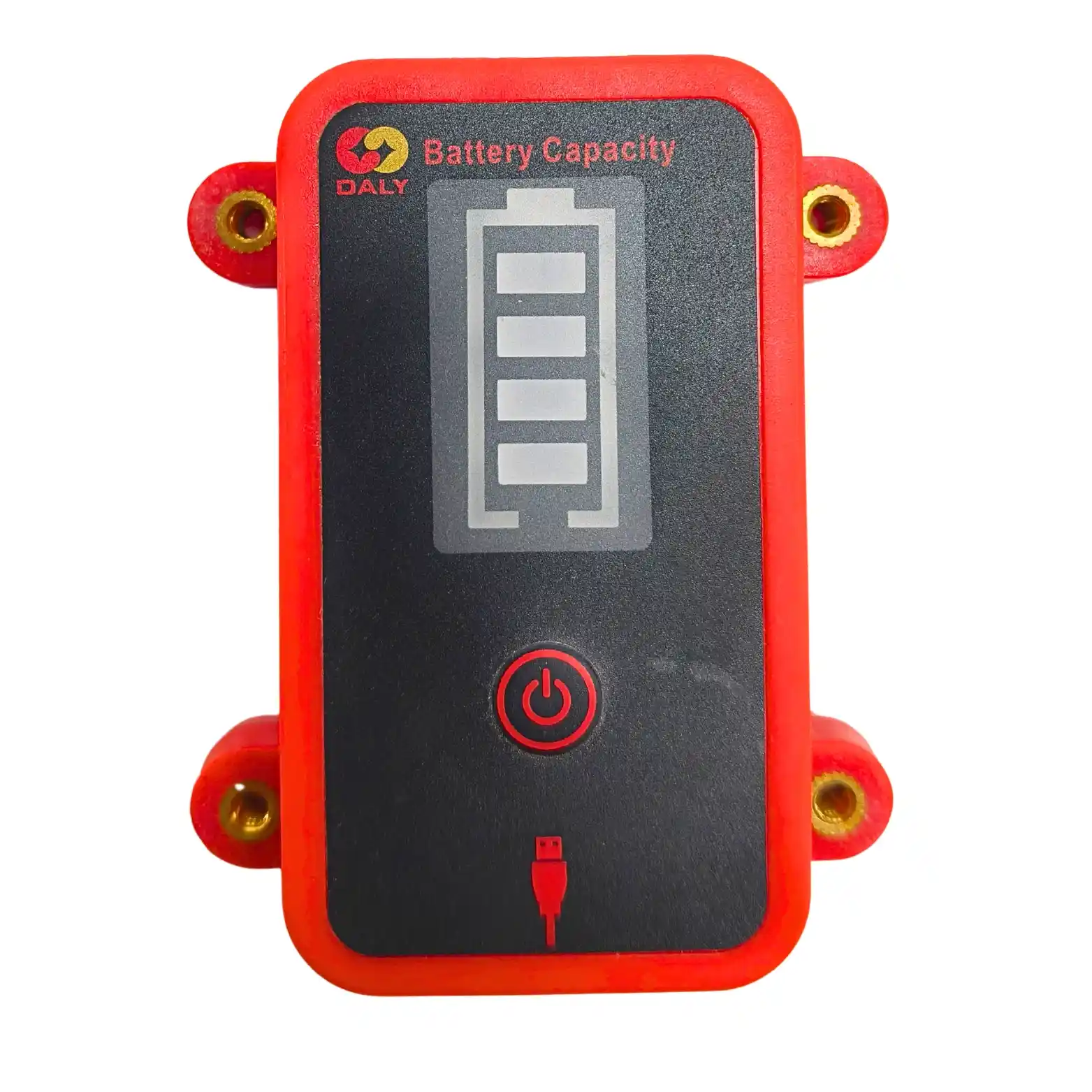

DALY K-Type Battery SOC Display

The DALY K-Type Battery SOC Display provides a local charge-status interface for a compatible DALY battery-management system. The K-Type designation identifies the requested accessory variant and should be matched to the intended BMS and harness.

A local display is useful when users need to check the battery at the equipment rather than connect a separate monitoring device for every routine enquiry. It also creates a defined user interface for battery-box projects, with the display specification recorded alongside the board and enclosure.

Technical Performance & Engineering Details

The information shown by a BMS-linked SOC display originates in the battery-management system. The screen is therefore one part of a monitoring chain, not an independent guarantee of remaining energy or runtime. Correct battery-capacity settings and normal BMS operation remain important to interpreting the charge estimate.

Display selection should distinguish a board's accessory support from its power-circuit capability. A BMS can have a suitable current rating for the battery while still requiring a particular screen or communication configuration. Likewise, installing a screen does not add cell balancing, raise the discharge-current rating or change the protection functions of the board.

Provide the full DALY BMS model and its revision when selecting the K-Type display. Compare the screen label, connector and approved cable against the board documentation. A shared brand name or a connector that appears to fit is not enough to establish electrical and protocol compatibility.

Plan the readout location around the enclosure and the operator's normal access point. Check mounting clearance, cable exit direction and the route to the BMS. For existing equipment, record the original display identity before replacing it; do not substitute the square, round or larger-screen option solely because it is also described as a DALY SOC display.

Applications

• Local SOC indication on a matched DALY battery system.

• Battery-enclosure projects specifying the K-Type accessory.

• Replacement of an identified equivalent K-Type screen.

• Battery-pack assembly and interface verification.

• Equipment designs requiring operator-accessible charge status.

Installation Guide

Isolate the battery while installing the display and preparing the cable route. Follow the instructions for the exact display and board combination, checking the supply arrangement separately from communication connections. Keep low-current accessory wiring protected from exposed busbars, moving parts and sharp metal edges.

Commission the screen by comparing its charge reading with the BMS's reported value. Verify that the information updates and that any expected wake or restart behaviour is consistent with the approved configuration. Treat a missing reading as a possible supply, connection or protocol issue rather than immediately deciding the battery is empty. Retain the successful model and cable combination in the build record.

Why Choose ARB Accessories?

ARB Accessories supplies DALY battery-management accessories within a wider lithium-battery component catalogue. Include the BMS identification, required display style and installation drawing in your enquiry. Coordinating the screen with its intended board, wiring and enclosure gives procurement teams a clearer specification than selecting a display solely because the front panel looks familiar.
