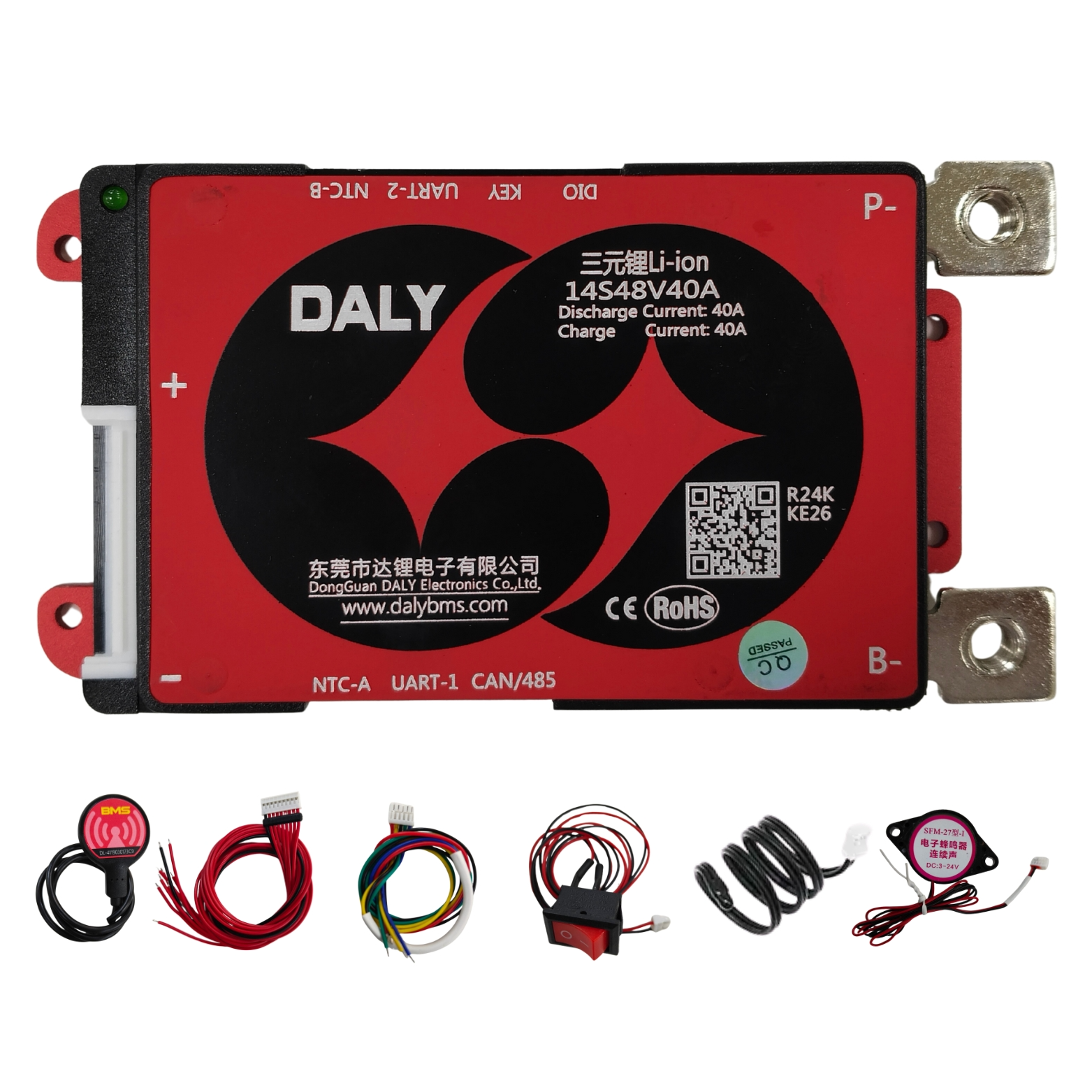

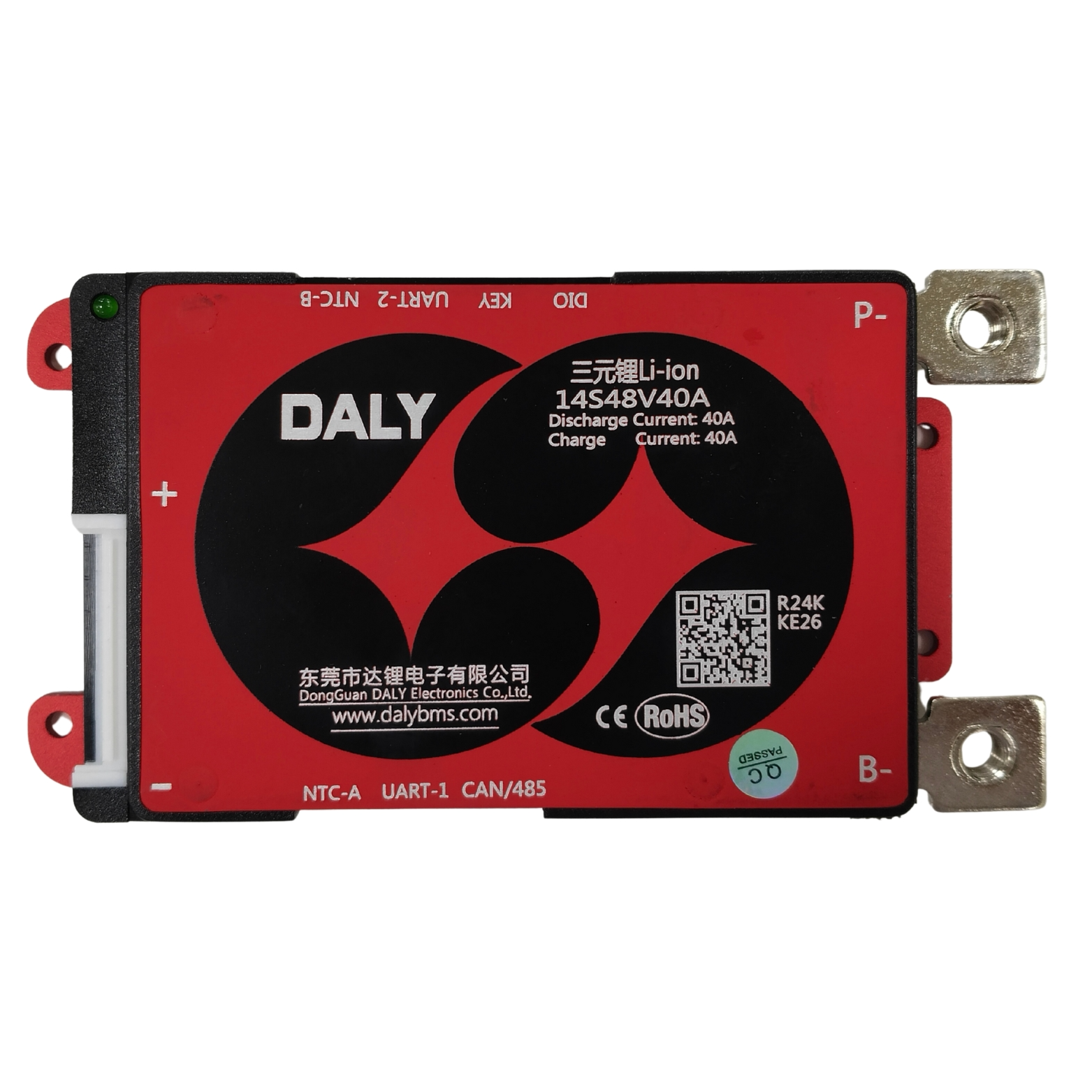

DALY SMART BMS NMC 14S 60A

The DALY BMS NMC 14S 60A SMART CAN is an advanced Battery Management System (BMS) engineered for 14S lithium-ion (NMC) battery configurations. It provides a 60A continuous charge/discharge capacity, CAN/UART/RS485 smart communication, and intelligent safety features, making it ideal for e-mobility, solar energy storage, and industrial lithium battery packs.

Key Features

• Model: NMC 14S 60A Smart BMS
• Battery Chemistry: Lithium-ion (NMC - Nickel Manganese Cobalt)
• Configuration: 14S (51.8V nominal)
• Charge/Discharge Current: 60A Continuous
• Protection Features: OVP, UVP, SCP, OCP, OTP

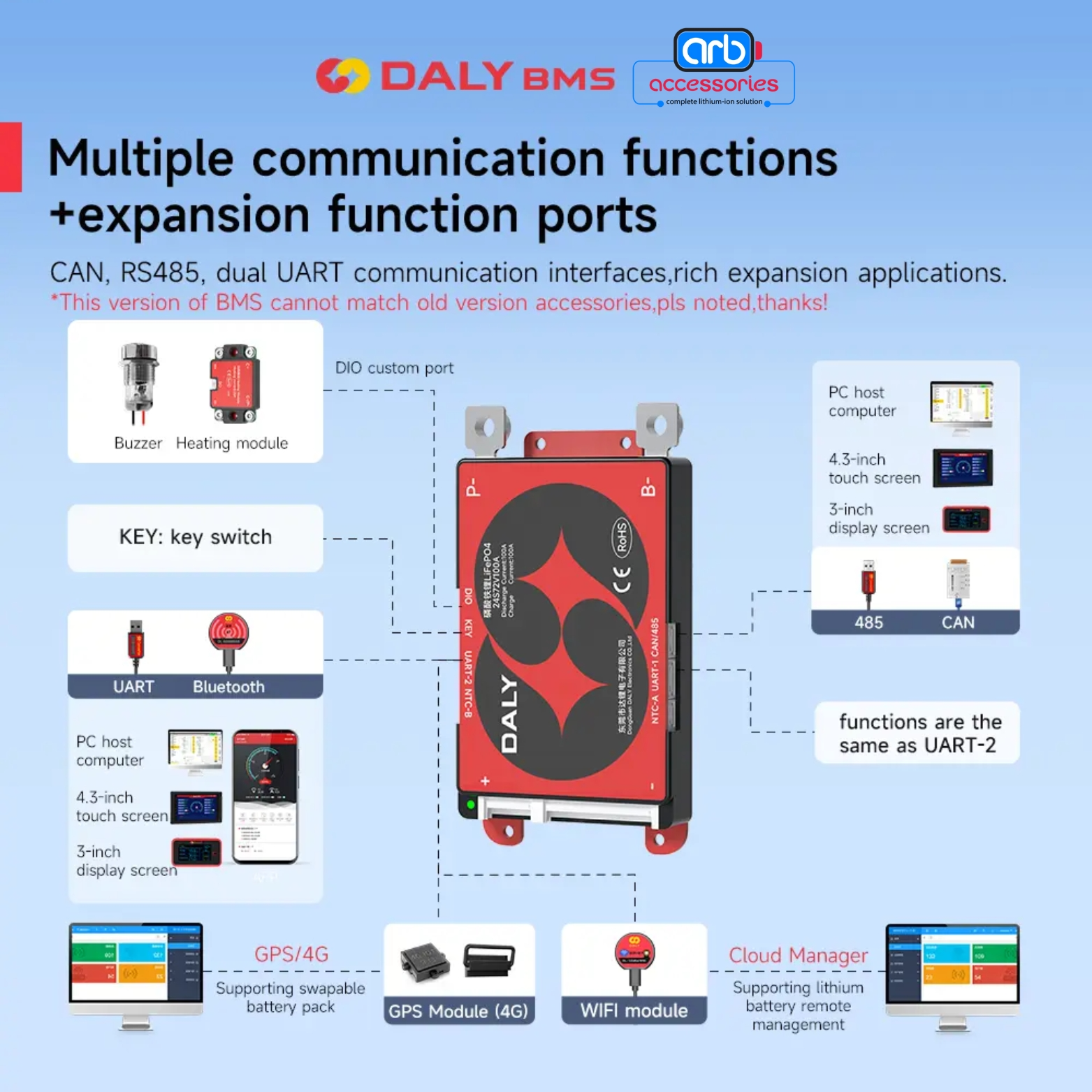

• Communication: CAN Bus, UART, RS485 (Multi-protocol support)
• Balancing: Passive balancing for uniform voltage levels
• Temperature Monitoring: Integrated NTC sensor interface

Applications

Perfectly suited for:

• Electric Scooters / Bikes / Motorcycles
• Solar Inverters and Power Storage
• Industrial Energy Systems
• Custom Battery Packs and Robots
• Marine and Off-Grid Power Systems

With the wide application of lithium battery in Lithium Battery Industry, high performance, high reliability and high cost performance are required for battery management system. This product is designed specifically for lithium-ion batteries in BMS, it can collect, process and store the information data of the battery in real time, and ensure the safety, availability and stability of the battery.

Professional high current wiring design &workmanship, thus can withstand the shock of high current high. The appearance is sealed by injection molding process to improve moisture-proof and oxidation-proof components and prolong the service life of the products. dust proof, shockproof, anti-squeezing and other protective functions. There is a complete over-charge, over-discharge, over-current, short-circuit, balance function. With the integrated design, the collection, management, communication and other functions are integrated."
