Key Feature
DALY BMS : The DALY BMS NMC 14S 48V 40A provides Overcurrent,Overcharge,Overdischarge,Short circuit, Temperature protection.DALY BMS maximizes optimizes the lithium battery performance, and extends the battery lifetime to a large extent.
Double Protection: Double protection by injection patent technology and patent shell.Waterproof,dustproof,shockproof and anti-static;High-quality components, pressure-resistant and durable material, high acquisition accuracy.
Smart BMS: Check battery status and modify parameters at any time through Bluetooth app or PC Software.Support BT, UART, RS485, CAN communication.
Note: Please check the Product data sheet on store dot arbaccessories dot in.
Easy to install - Easy to plug and unplug, which allows you to effortlessly create an electrical connection between the battery pack and the BMS.
₹2,298.00

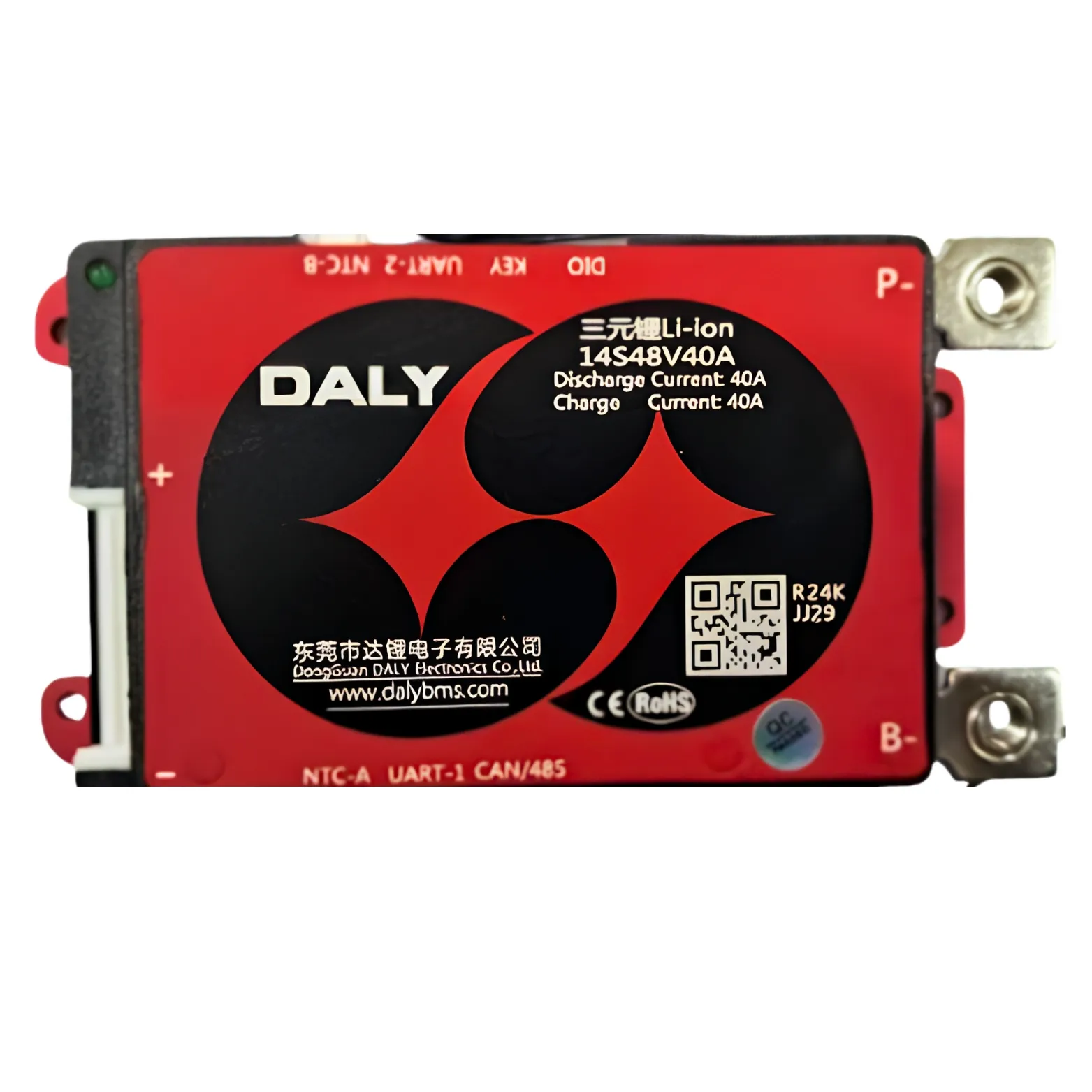

The DALY BMS NMC 14S 40A SMART CAN is a reliable, compact, and intelligent Battery Management System (BMS) designed specifically for 14 series Lithium-ion (NMC) battery packs (51.8V nominal). Built with smart CAN/UART communication and high-quality components, it offers real-time protection, optimized charge/discharge management, and communication features for EVs, energy storage, and industrial battery applications.
Key Features
- Model: DALY Smart BMS 14S 40A
- Battery Type: Lithium-ion (NMC)
- Series: 14S (14 cells in series)
- Nominal Voltage: 51.8V
- Continuous Charge/Discharge Current: 40A

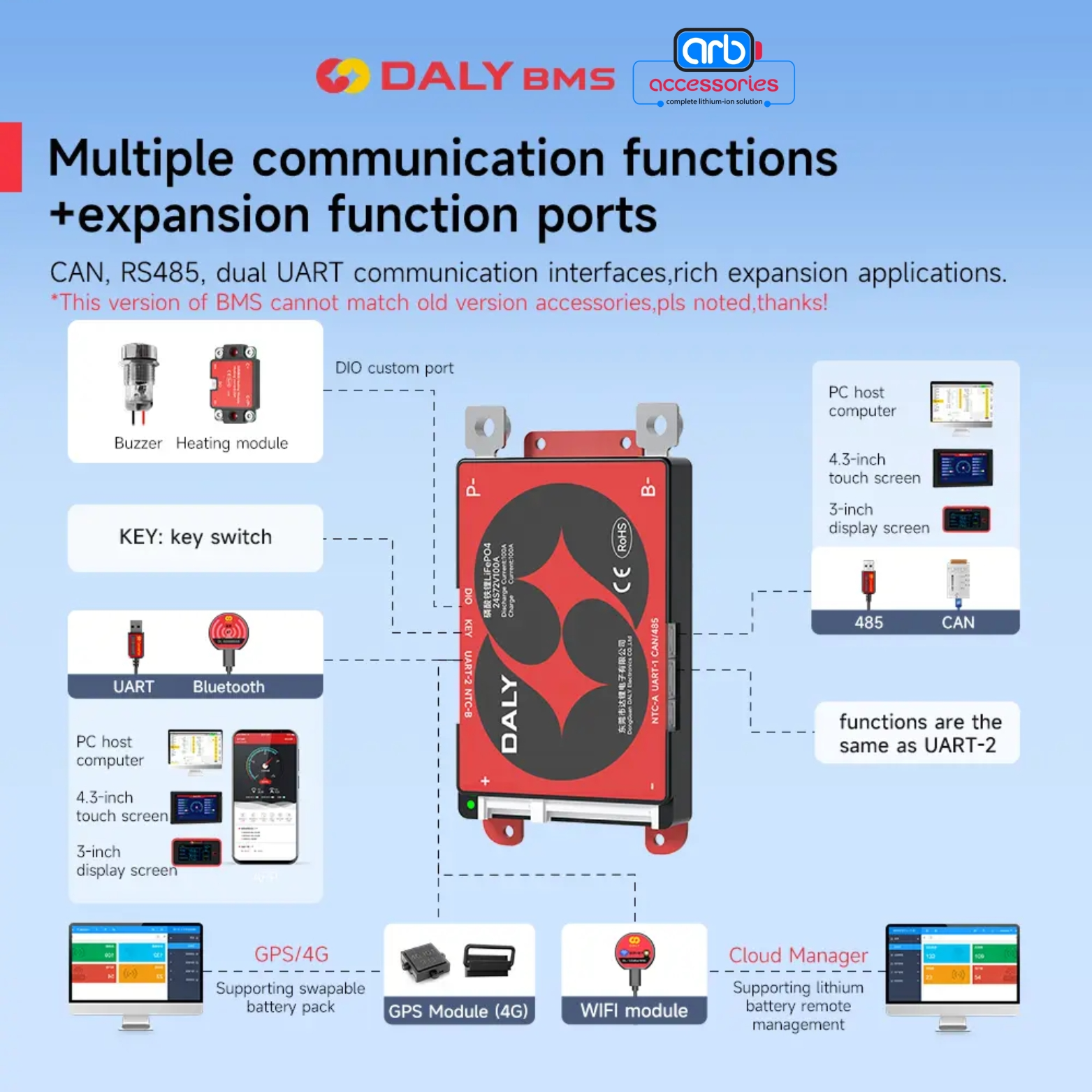

- Communication Protocol: CAN/485 & UART
- Build: Industrial-grade compact red aluminum casing
- Protection Functions: Overcharge, Over-discharge, Overcurrent, Short Circuit, Temperature
- Smart Interface: PC communication via CAN/UART
- Passive Balancing Current: Approx. 60mA
- Cooling: Passive with heat-dissipating shell (no fans)
Applications
- E-Scooters, E-Bikes, and Lightweight EVs
- Lithium Battery Packs for Portable Power
- Solar Energy Storage Systems
- Industrial Backup Batteries
- DIY Lithium Projects
With the wide application of lithium battery in Lithium Battery Industry, high performance, high reliability and high cost performance are required for battery management system. This product is designed specifically for lithium-ion batteries in BMS, it can collect, process and store the information data of the battery in real time, and ensure the safety, availability and stability of the battery.
Professional high current wiring design &workmanship, thus can withstand the shock of high current high. The appearance is sealed by injection molding process to improve moisture-proof and oxidation-proof components and prolong the service life of the products. dust proof, shockproof, anti-squeezing and other protective functions. There is a complete over-charge, over-discharge, over-current, short-circuit, balance function. With the integrated design, the collection, management, communication and other functions are integrated."
Product overview
The DALY BMS NMC 14S 40A SMART CAN is a reliable, compact, and intelligent Battery Management System (BMS) designed specifically for 14 series Lithium-ion (NMC) battery packs (51.8V nominal).
- SKU
- 26000341
- Category
- Smart BMS
- Brand
- Daly
- Unit
- PCS
- Minimum order
- 1 PCS
- Availability
- In Stock
Review key features and technical specifications before ordering. Contact ARB Accessories if you need compatibility or bulk-order guidance.
