DALY SMART BMS LFP 24S 100A

DALY SMART BMS LFP 24S 100A

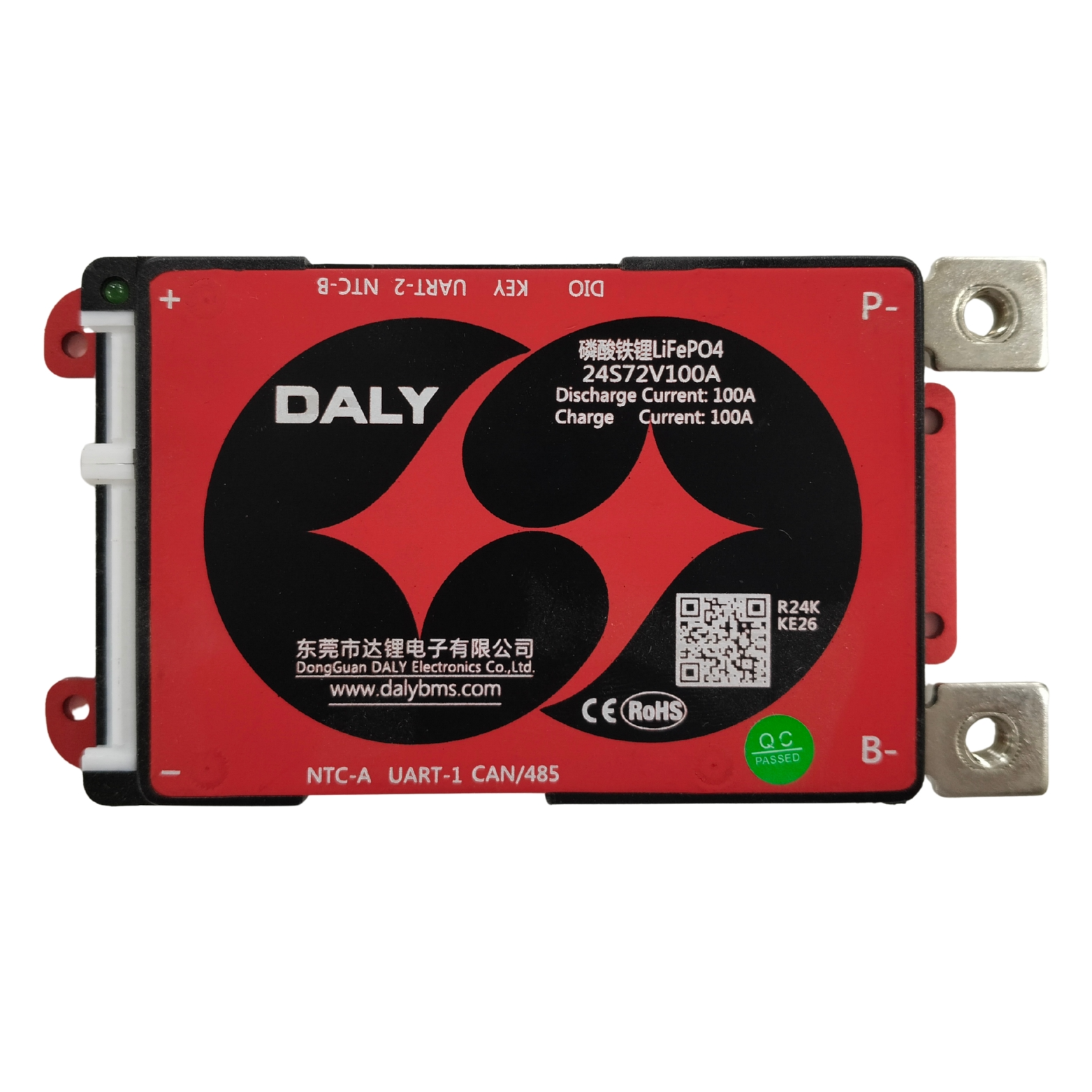

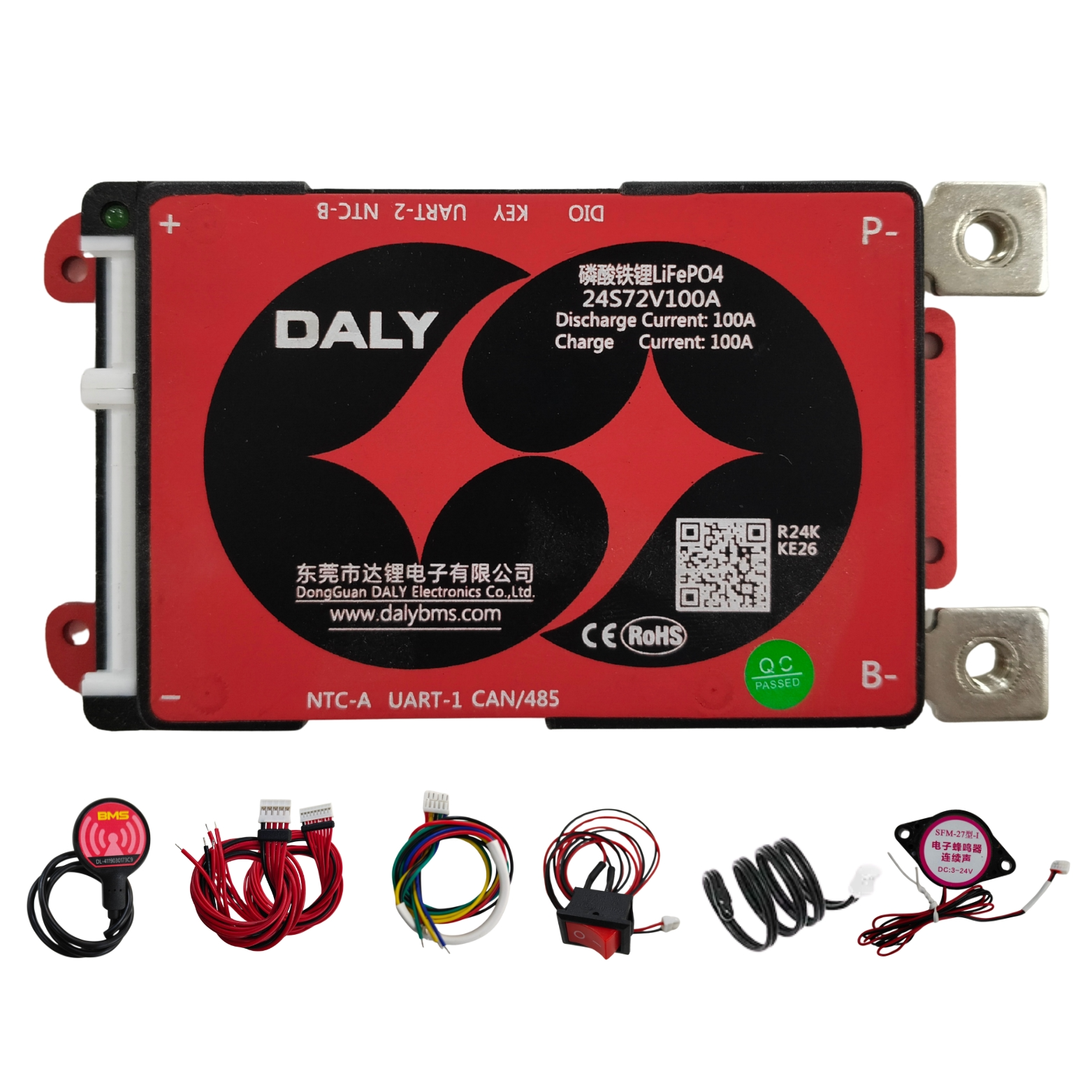

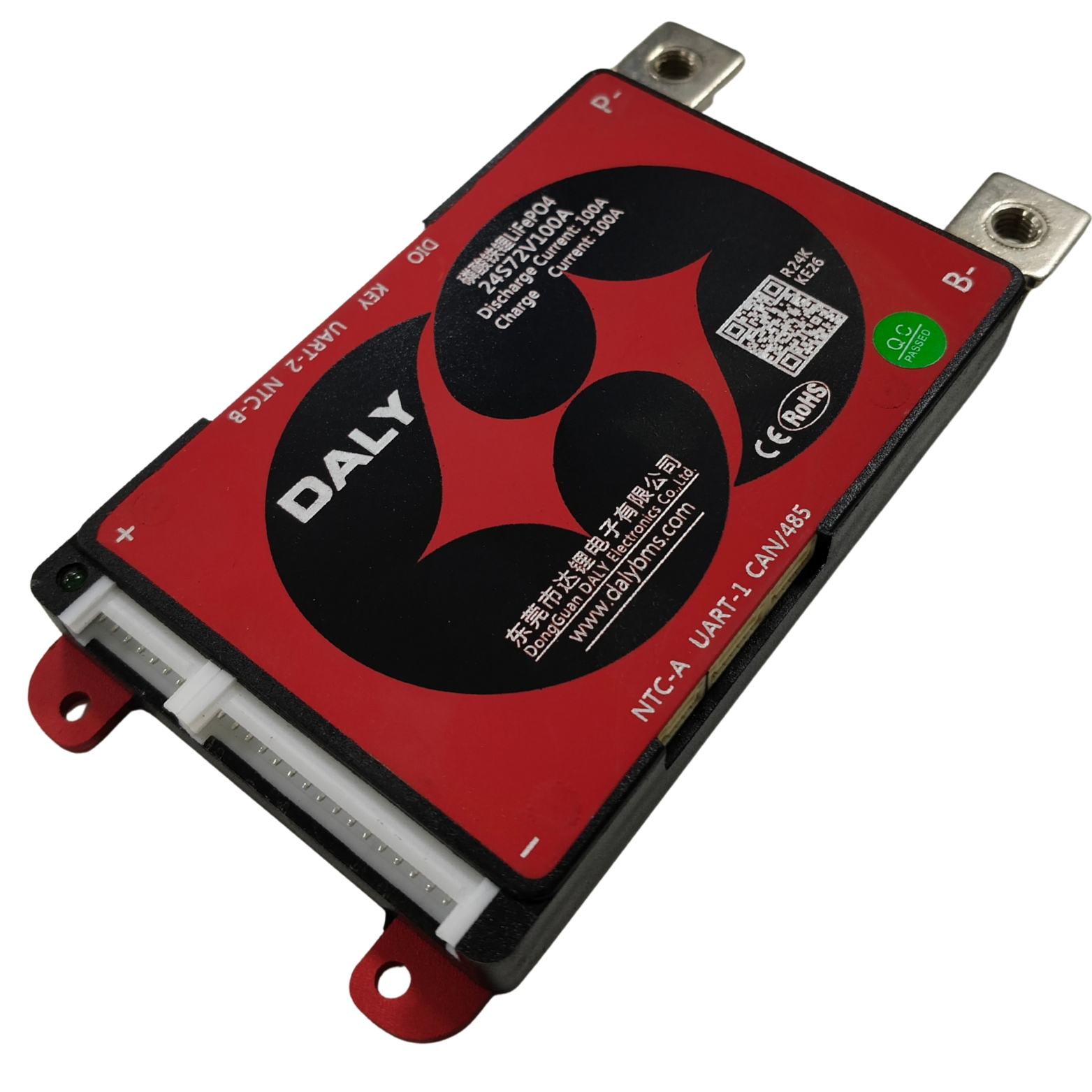

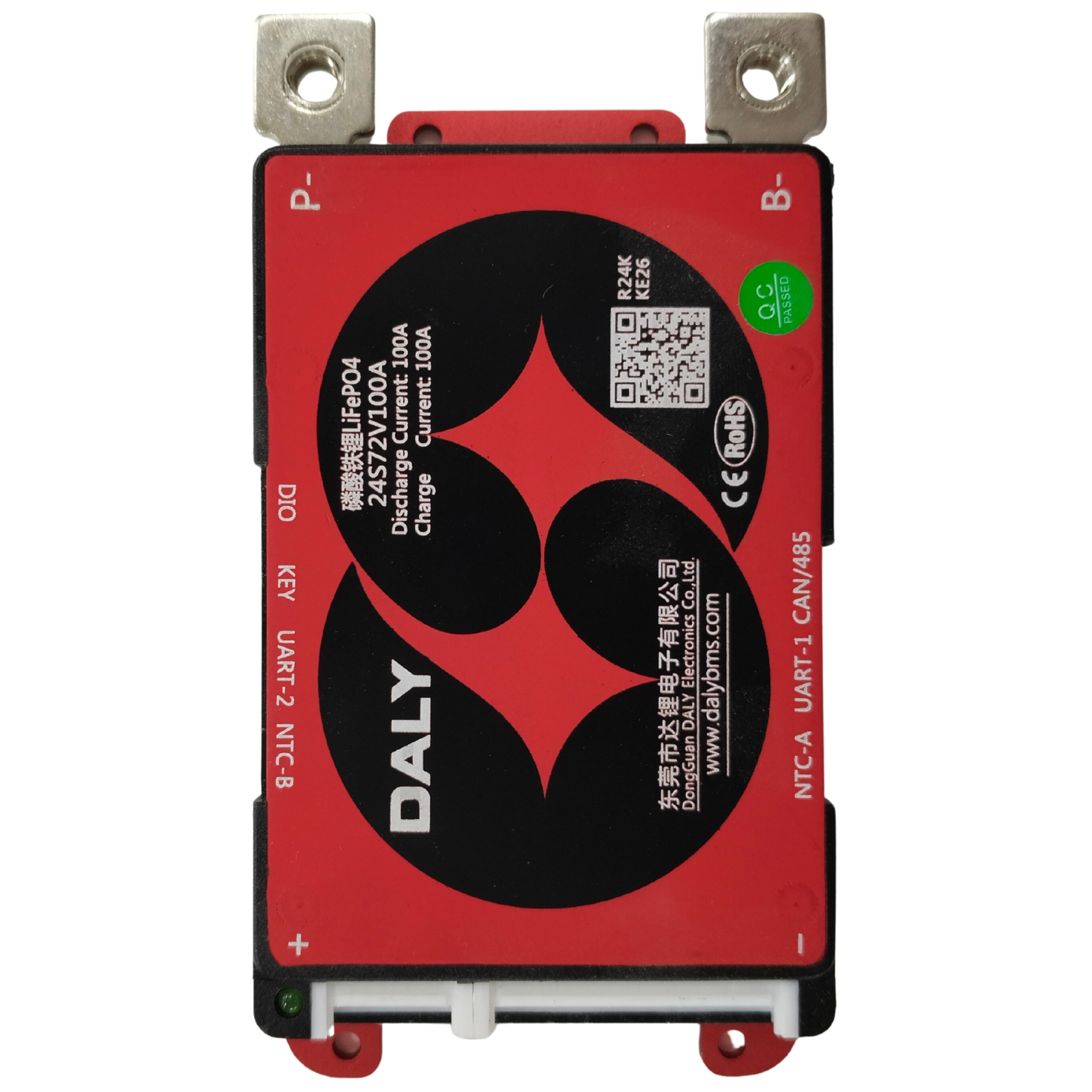

The DALY SMART BMS LFP 24S 100A is a smart battery-management system for 24S LiFePO4 (LFP) lithium battery packs. Model 24S Smart / CAN variant identifies the hardware family where supplied. It is intended for battery builders, EV service teams, inverter and energy-storage integrators, and repair workshops that need a protection board matched to the correct chemistry, series count and load requirement. Buyers commonly search for DALY 24S 100A LiFePO4 (LFP) BMS, lithium battery protection board, 24S battery BMS and EV battery management system; the first selection check should always be chemistry and series configuration rather than physical size alone.

A BMS supervises individual cell-group voltages and the main charge/discharge path so the battery pack can be isolated when operating limits are exceeded. It is one part of the safety architecture: correct cell matching, charger selection, conductor sizing, fuse protection, insulation and mechanical assembly remain equally important. A BMS with the right current label cannot compensate for undersized wiring, loose terminals or a charger intended for another lithium chemistry.

Current product documentation for the matching DALY 24S 100A smart LiFePO4 variant describes common-port operation with balancing, a 100A discharge class and CAN/UART communication interfaces for integration with compatible external systems. The 100A current designation must be evaluated against the real continuous load, startup surge, cable size, connector resistance and cooling conditions of the complete pack. The smart BMS supervises the 24S cell stack and provides balancing/protection behavior when the balance harness and pack configuration are correctly connected. The sense harness must follow the cell-group sequence in the correct order so the board reads each series section accurately. Before the harness is connected, measure the voltage between adjacent sense points and confirm that polarity progresses in the expected direction from pack negative to pack positive.

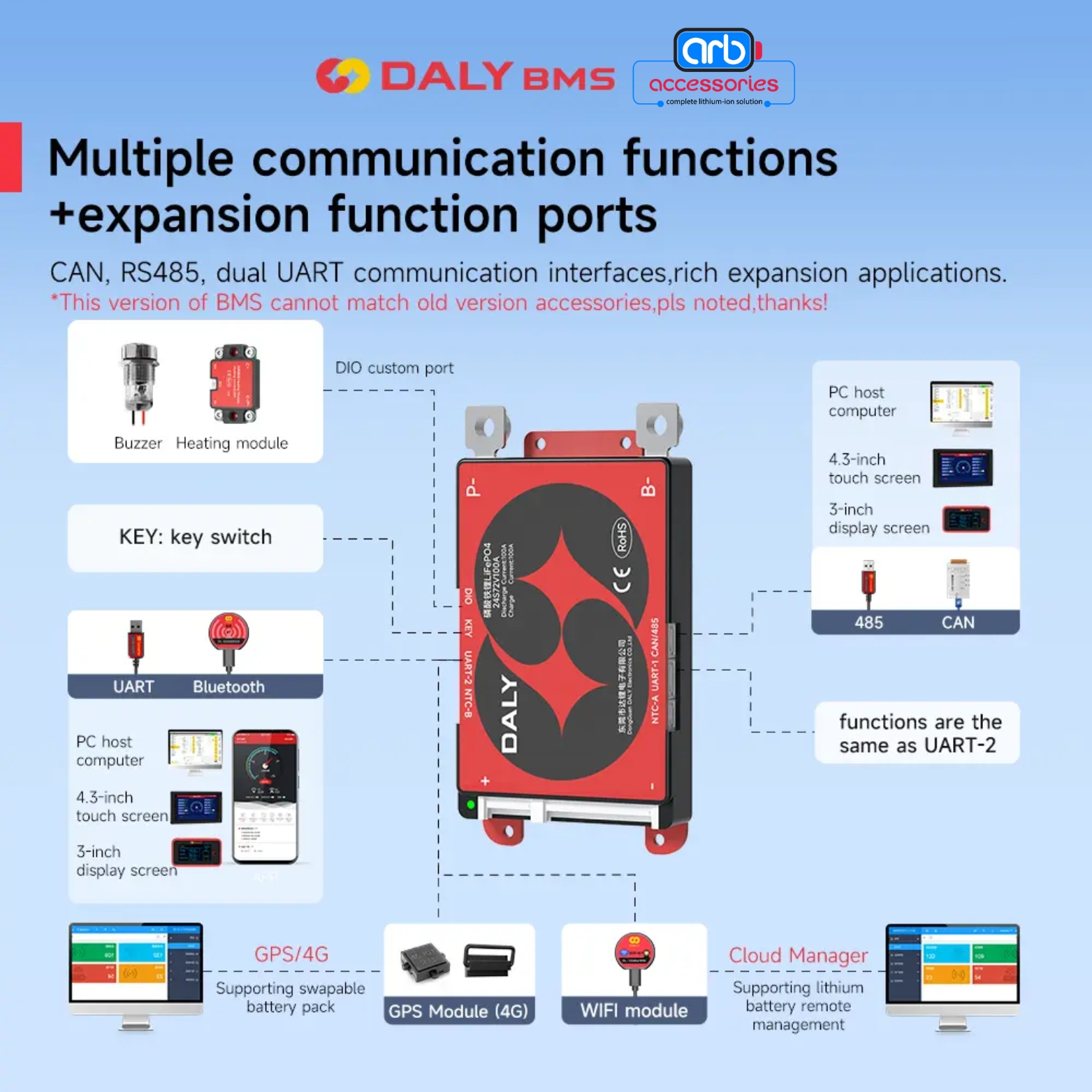

CAN and UART are referenced for the matching smart variant. Communication protocol, pinout and inverter/controller compatibility must still be matched to the exact DALY hardware and firmware version rather than assumed from the connector alone. Heat generation in a battery pack is influenced by MOSFET losses, conductor resistance, crimp quality, busbar or nickel-strip sizing and enclosure ventilation. Mount the BMS so that its heat-dissipating surfaces are not buried under insulating foam unless the manufacturer specifically allows it. Keep the board protected from conductive debris and from mechanical pressure that could damage components or the enclosure.

Choose this DALY BMS by matching battery chemistry (LiFePO4 (LFP)), exact series count (24S), continuous and peak current demand, charge/discharge port arrangement, connector layout and any required communication interface. For replacement work, compare the model code, balance-harness pinout, cable orientation and mounting space with the existing unit. The charger must use the correct voltage profile for the complete 24S LiFePO4 (LFP) pack, and the motor controller, inverter or DC load should remain within the verified operating envelope of the BMS and wiring.

Applications

• 24S LiFePO4 (LFP) lithium battery pack assembly and replacement.

• Electric scooter, e-bike and light-EV battery systems when voltage and current requirements match.

• Solar, UPS and energy-storage battery modules using the same battery chemistry.

• Industrial battery packs, robotics and portable power systems.

• Battery repair, testing and workshop projects requiring a compatible BMS.

Installation Guide

Isolate the battery pack from the charger and load before installation. Confirm every series-group voltage and the total pack voltage before inserting the sense connector. Connect power leads with the correct polarity, use suitably sized insulated conductors, and secure crimped or bolted joints so vibration cannot loosen them. Never allow tools, loose nickel or exposed cable ends to bridge adjacent cell groups. After wiring, commission the pack with a controlled charge and a moderate load first; monitor cell voltages, BMS response and temperature before applying the intended operating current.
