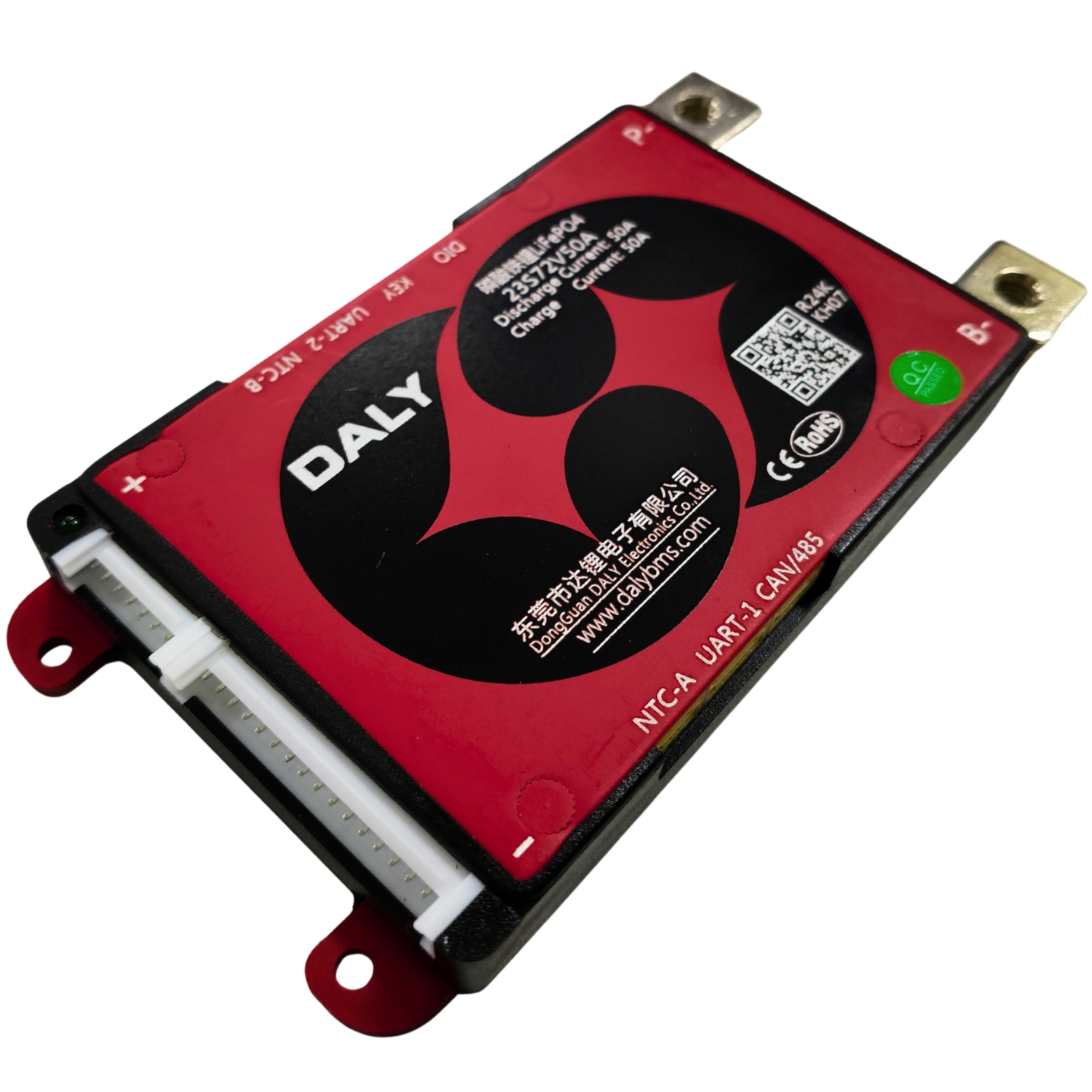

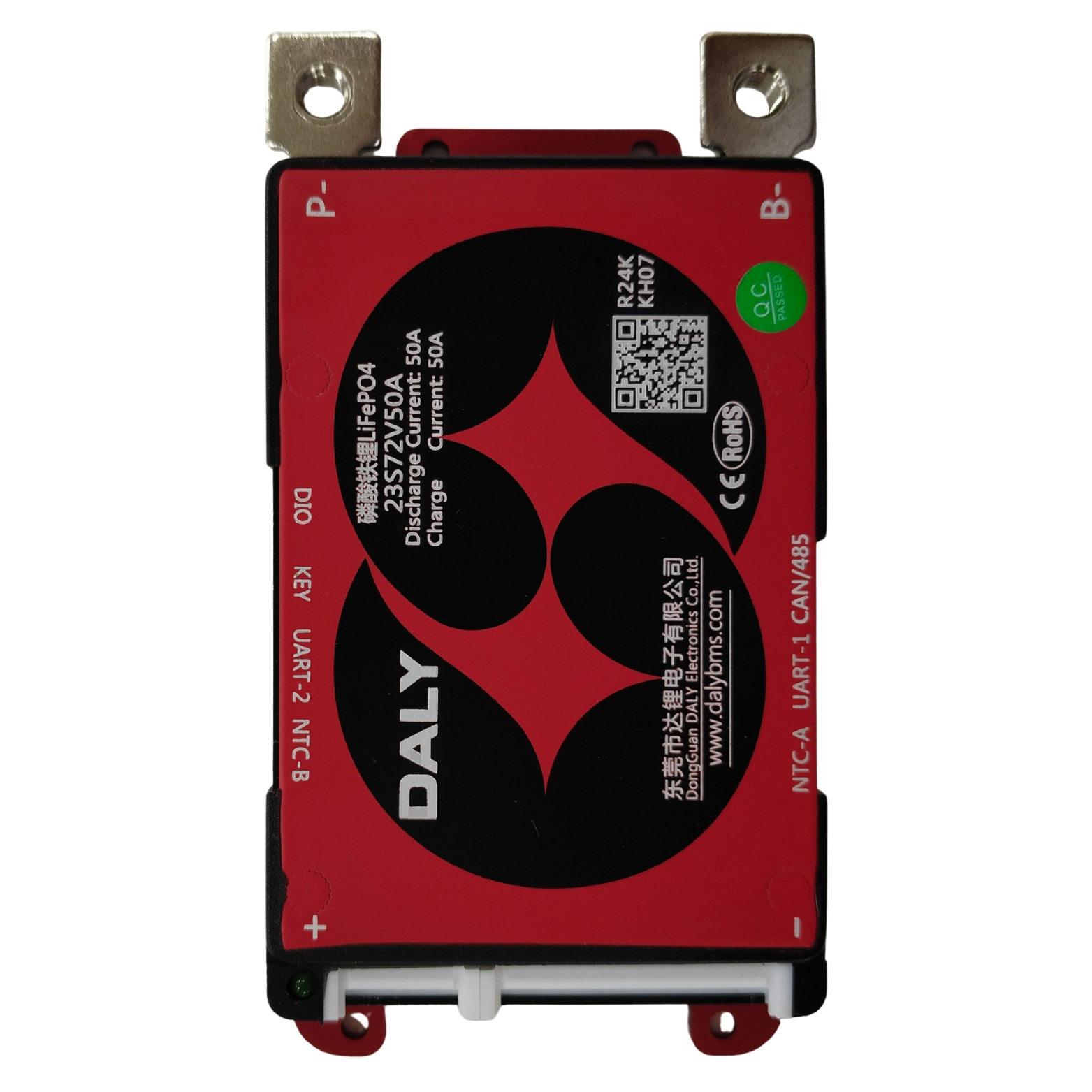

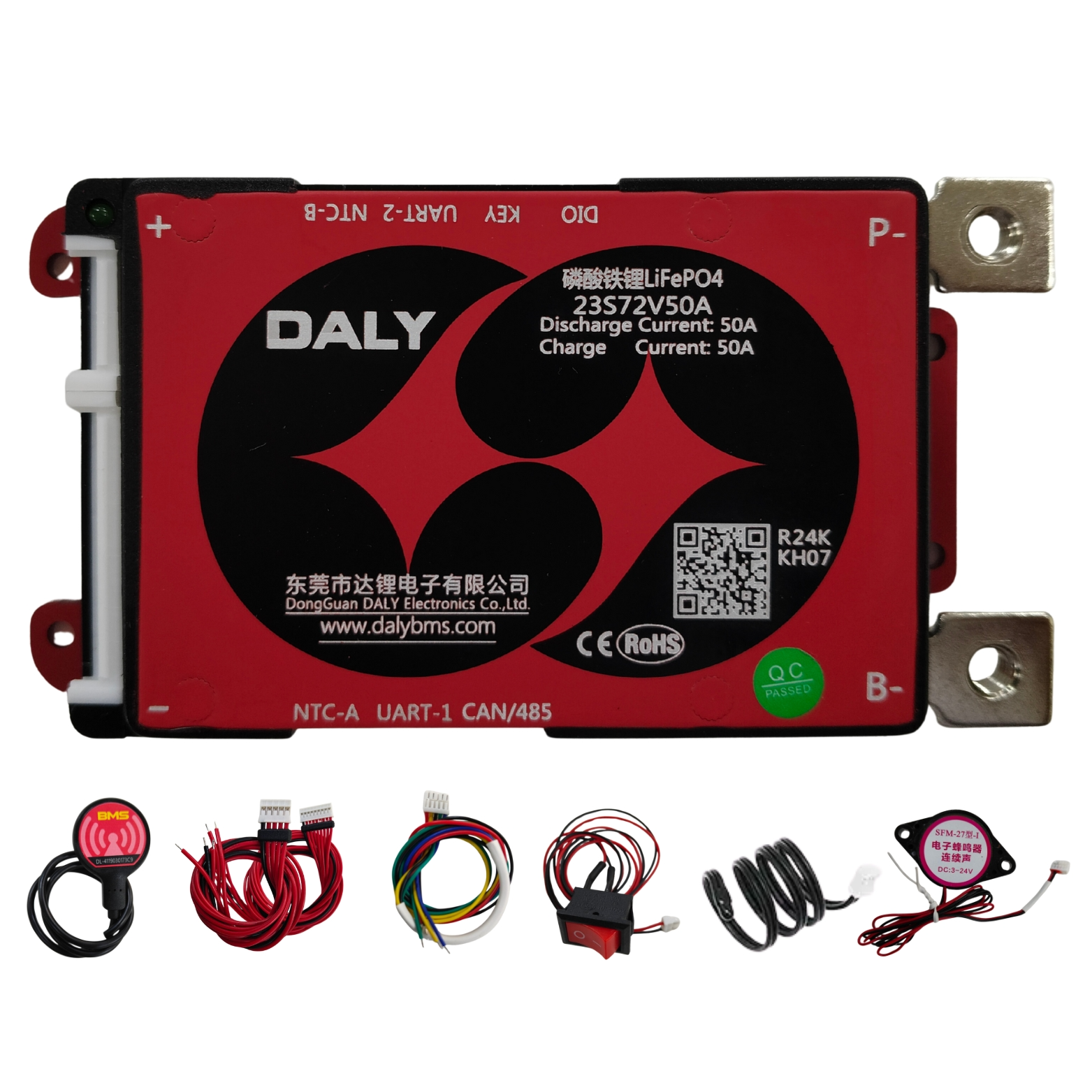

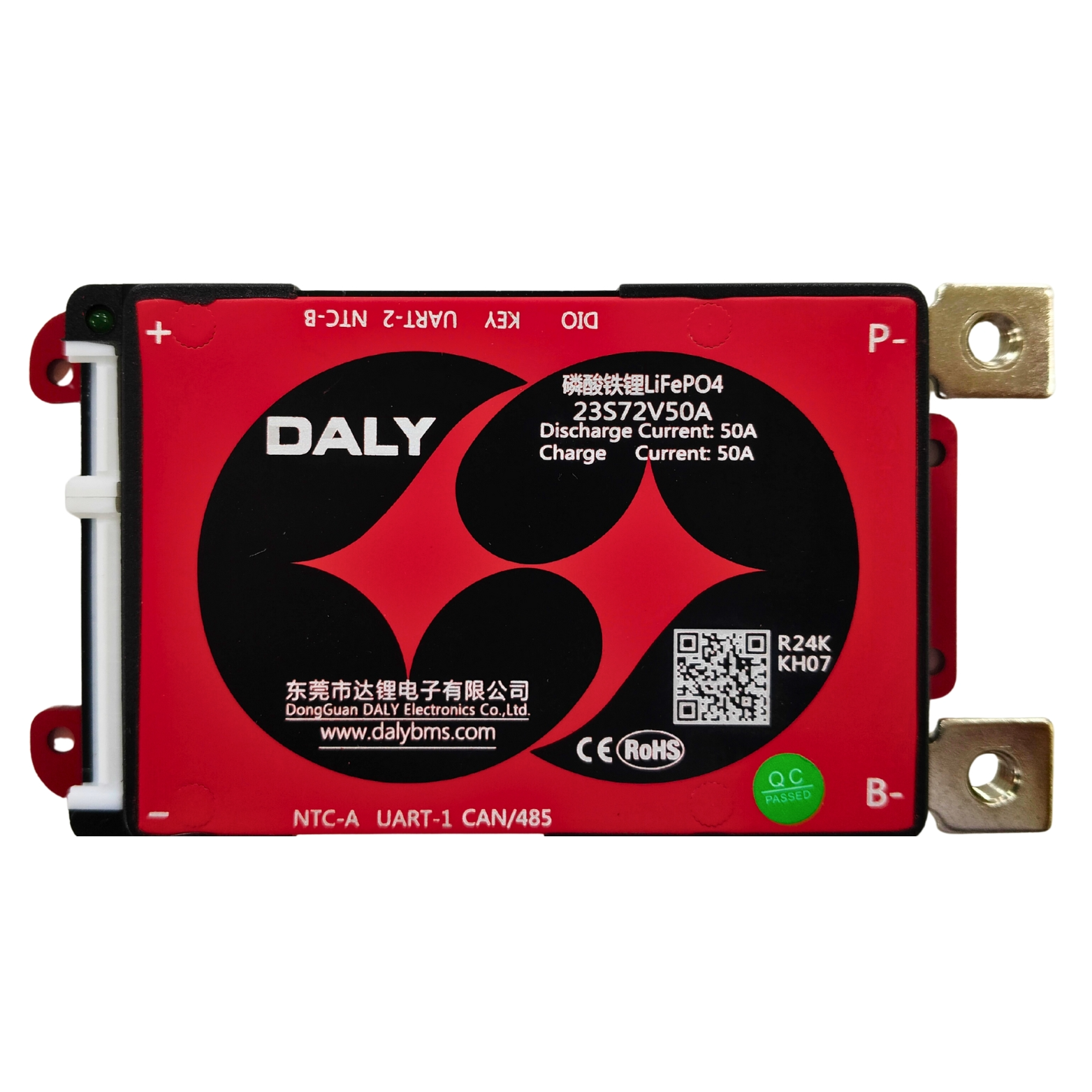

DALY SMART BMS LFP 23S 50A

DALY SMART BMS LFP 23S 50A

The DALY SMART BMS LFP 23S 50A is a smart battery management system for a 23S LiFePO4 (LFP) battery architecture with a 50A current class, giving lithium battery builders a dedicated protection and control layer for compatible packs. Buyers searching for DALY 23S 50A smart LiFePO4 BMS, 72V LFP battery management system, 73.6V smart BMS, CAN battery BMS and inverter battery protection board typically use this type of BMS in EV batteries, inverter batteries, solar energy-storage systems, backup batteries and custom lithium battery projects where chemistry, series count and load current must be matched correctly. A 23S LiFePO4 pack is commonly about 73.6V nominal with a full-charge class near 83.95V.

A BMS supervises individual series groups and controls the pack power path when configured protection conditions are reached. Correct chemistry and series matching are essential because NMC and LiFePO4 cells use different voltage limits and sense-wire sequences. The BMS must work as part of the complete battery system with correctly sized cells, interconnects, cable, fuse, connectors and charger. A same-port design uses a shared main power path for charge and discharge, so the pack wiring and charger/load arrangement should be planned for that topology. Smart/can-capable monitoring on the current product family can support commissioning and battery monitoring when the matching interface and protocol are used.

The core engineering parameters are the 23S configuration, LiFePO4 (LFP) chemistry and 50A current class. Current capability should be evaluated together with cable cross-section, terminal resistance, crimp or weld quality, enclosure temperature, duty cycle and the pack's expected peak demand. A high-current BMS cannot correct undersized wiring, weak terminals or an incorrect charger profile, so the full DC path must be designed to stay within safe electrical and thermal limits.

Cell-sense wiring also requires careful handling. Each series group must be connected in the correct order and checked for correct voltage before the sense harness is attached. A reversed, skipped or misplaced sense lead can expose the electronics to an incorrect voltage sequence. During replacement work, compare the terminal layout, harness order and port arrangement with the existing pack before energizing the system.

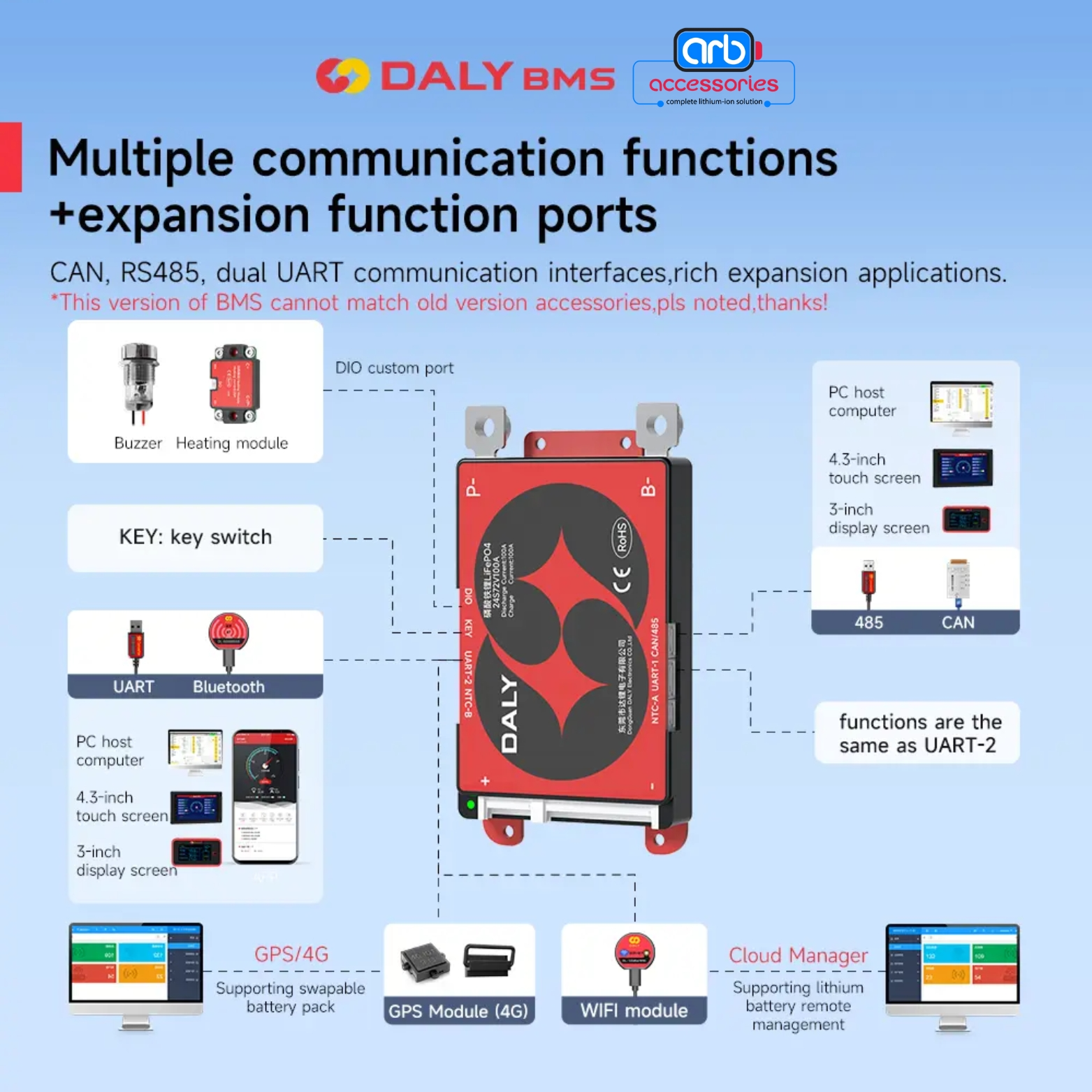

Select this BMS by matching battery chemistry, exact series count, continuous and peak load current, charger voltage profile and physical wiring arrangement. A 23S LiFePO4 pack is commonly about 73.6V nominal with a full-charge class near 83.95V. Confirm the actual cell specification and charger setting before commissioning. If monitoring or communication is required, match the exact display, Bluetooth, UART, RS485 or CAN accessory to the BMS version instead of assuming interfaces are interchangeable.

Applications

• Electric scooter, e-bike and electric motorcycle battery packs.

• Custom lithium battery packs for EV and mobility projects.

• Solar, inverter and stationary energy-storage battery systems.

• Battery repair, refurbishment and BMS replacement work.

• OEM, workshop and prototype lithium battery assemblies.

Installation Guide

Isolate the battery from the charger and load before fitting or replacing the BMS. Measure each series group, confirm polarity and verify total pack voltage before connecting the balance harness. Connect sense leads in the correct sequence and make the main current connections with secure, low-resistance joints and suitable strain relief. Keep the BMS insulated from loose metal, cell cans and conductive enclosure surfaces. After installation, perform a controlled charge and discharge check while monitoring pack voltage, current and temperature before applying the full intended load.
