Daly Smart Active Balancer 24S 10A

DALY SMART ACTIVE BALANCER 24S 10A

DALY SMART ACTIVE BALANCER 24S 10A is a DALY battery equalizer and cable-sequence analysis machine for multi-series lithium battery packs. DALY's 3S–24S product family combines active balancing with battery-string inspection, allowing technicians to review cell voltages and identify sampling-wire connection issues in one workflow. The listed 10A model is intended for battery manufacturers, repair shops, dealers and battery-service teams that need both voltage equalization and clear cell-group data. It is a diagnostic and balancing instrument rather than a replacement for a battery management system.

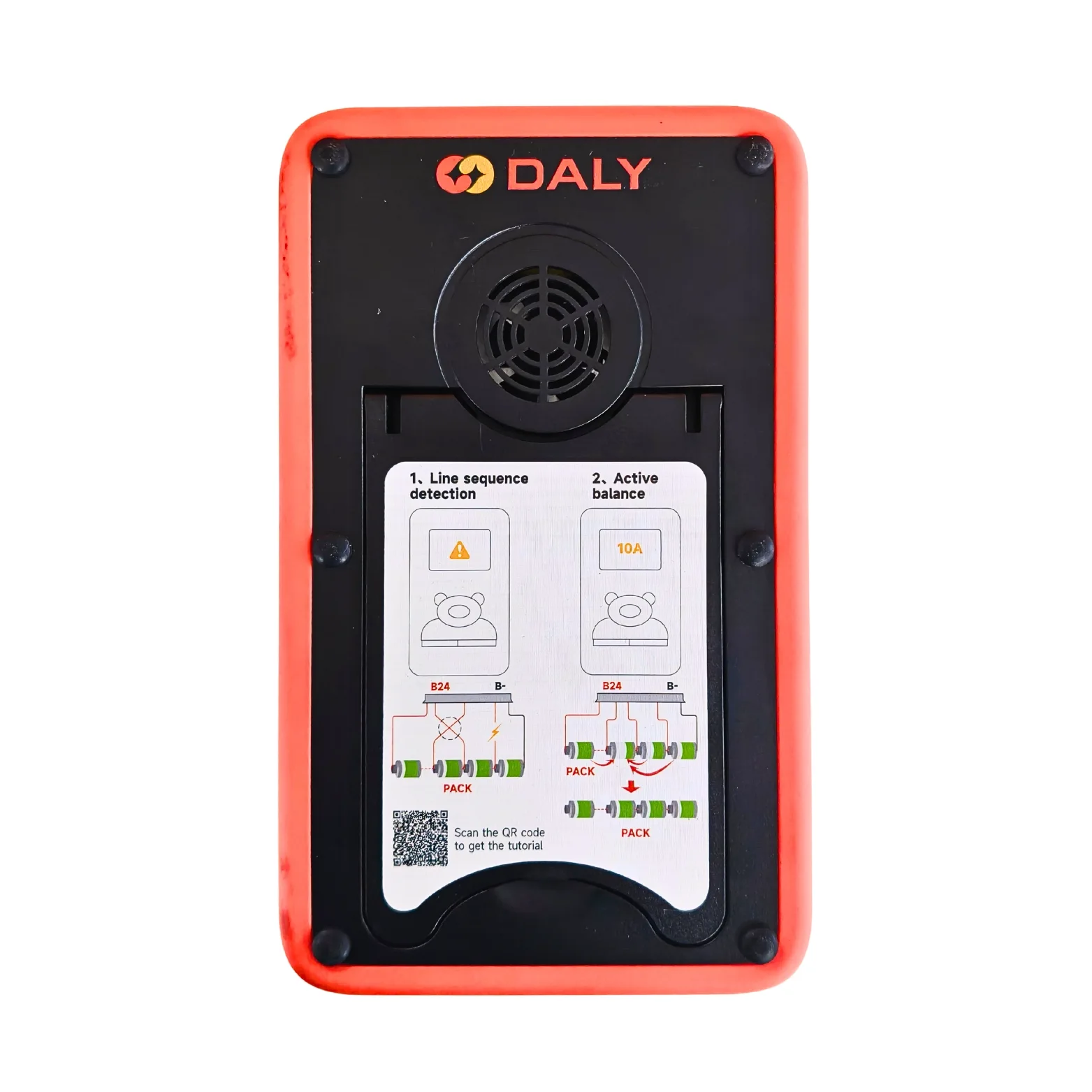

The DALY equalizer combines adjustable active balancing with a cable-sequence detector. The manufacturer specifies a balancing-current range of 1A to 10A, automatic stop with an audible buzzer at completion, and battery testing across 3S–24S configurations. It supports Li-ion, LiFePO₄ and LTO battery detection. The device can inspect sampling-lead sequence, open-circuit conditions and reverse connections, helping technicians identify wiring problems before they become more difficult to diagnose.

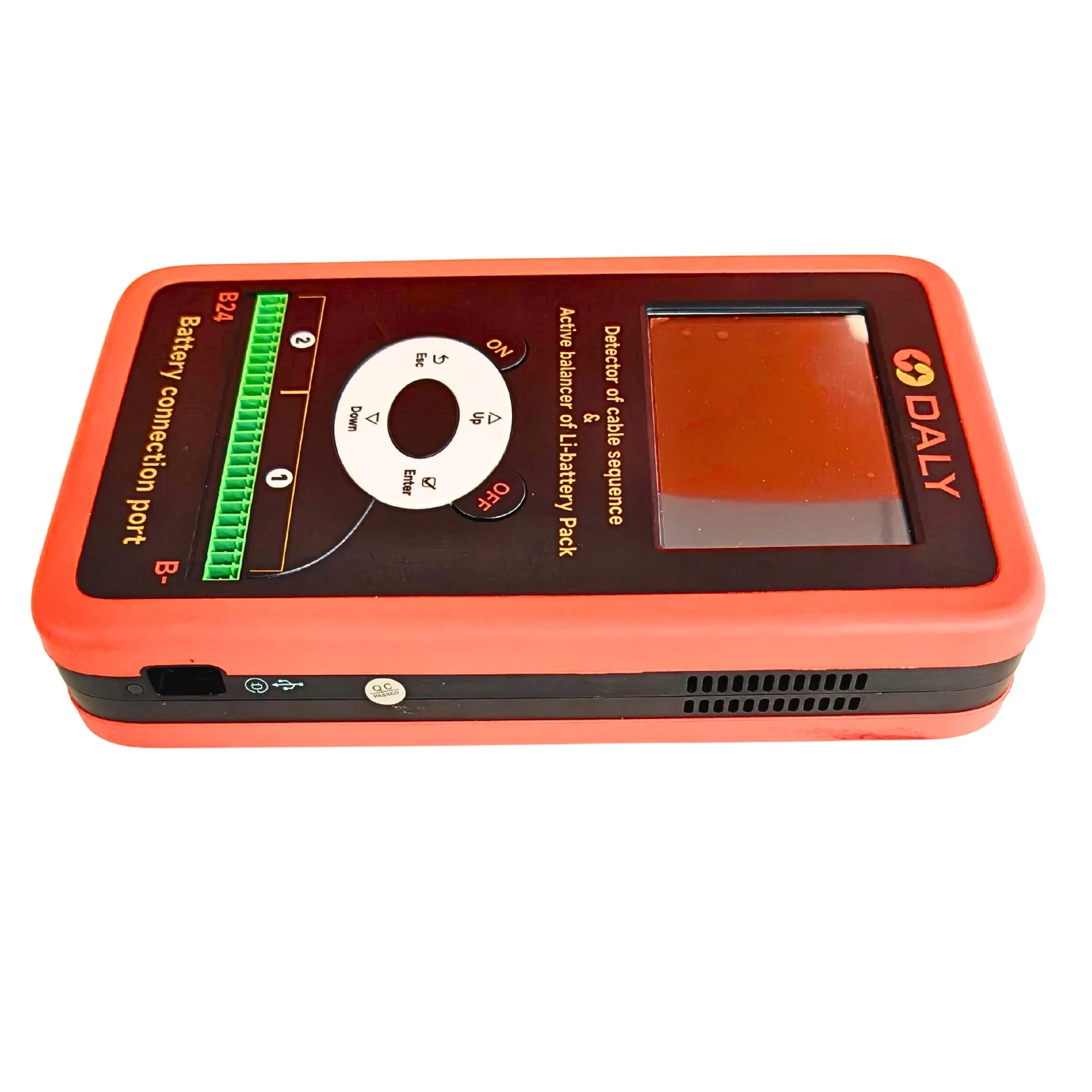

The LCD interface presents total pack voltage, the highest-voltage channel, the lowest-voltage channel and the maximum voltage difference. This makes it practical to compare cell-group voltage spread before, during and after equalization. Current and start-difference parameters can be configured for the service procedure, and the machine provides protection against reverse connection and short circuits on input channels according to the manufacturer documentation. Automatic completion behaviour helps keep the service workflow clear when the balancing cycle has finished.

For battery service operations, voltage analysis and cable-sequence checking are as important as balancing current. A pack with incorrectly sequenced sampling leads can produce misleading readings or create connection risks. The DALY tester/equalizer combines these checks in a dedicated tool so the technician can review cell readings, correct sampling connections and then balance compatible packs in a structured process.

The DALY 10A equalizer is designed for multi-series lithium packs within the manufacturer's 3S–24S range. It supports Li-ion, LiFePO₄ and LTO battery inspection, with per-cell voltage and balancing parameters set according to the chemistry and service procedure. The 24S configuration serves larger multi-series packs, while the DALY family also covers smaller supported series counts.

Use the unit when battery service requires a clear display of total voltage, highest and lowest cell voltage, voltage spread, and sampling-lead sequence. Correct balance-harness order and per-cell voltage range remain essential. The equalizer supports inspection and balancing; the battery pack still needs appropriate BMS control, charger compatibility, fusing and safe electrical isolation.

Applications

• Battery production lines that check series-tap wiring order before pack commissioning.

• Li-ion, LiFePO₄ and LTO battery packs in the manufacturer's supported 3S–24S range.

• Service benches that analyse total voltage, highest and lowest cell voltages, and cell-voltage spread.

• Battery repair workflows that use cable-sequence, open-circuit and reverse-connection checks.

• Pack equalization and maintenance where adjustable active balancing up to 10A is required.

Installation Guide

Place the DALY machine on a stable workbench and disconnect the battery from charge and load before connecting the sampling harness. Select the correct series-count arrangement, connect each sampling lead in order and use the cable-sequence detection function to identify wiring errors before starting a balancing cycle. Review total voltage and individual cell readings on the LCD, set the balancing current and voltage-difference trigger for the service task, and begin equalization. The automatic stop and buzzer indicate completion. Keep terminals insulated and follow safe handling procedures for high-energy battery packs.
