DALY SMART ACTIVE BALANCER 13S 1A

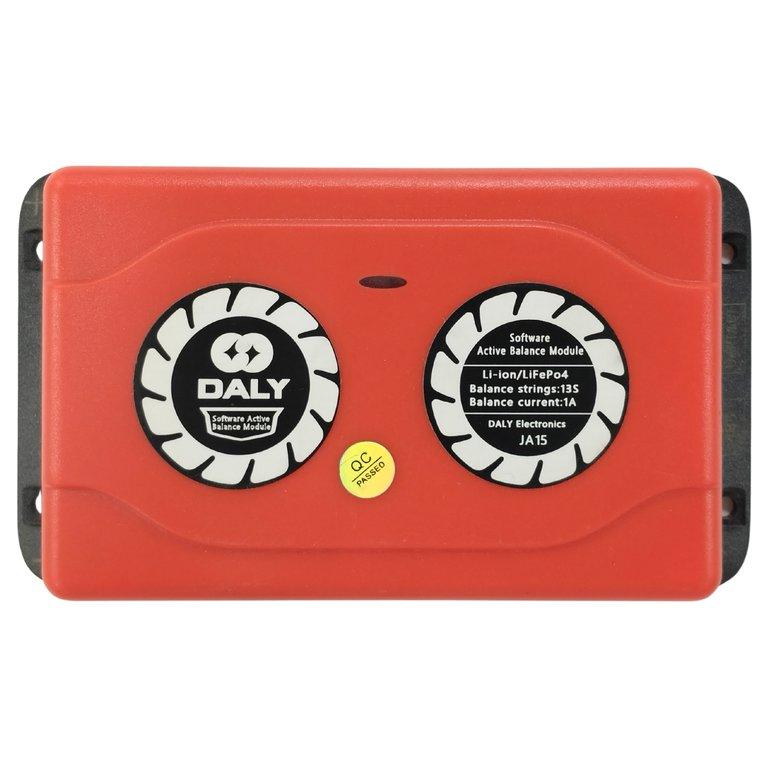

DALY Smart Active Balancer 13S 1A

The DALY Smart Active Balancer 13S 1A is a communication-capable active cell-equalization module designed for compatible lithium battery packs using thirteen series-connected cell groups. It combines DALY’s active balancing function with configurable smart functionality available within the manufacturer’s smart active-balancer family.

The module is rated for up to 1A active balancing. Instead of functioning only as a passive bleed circuit, it redistributes energy within the connected battery to help reduce differences between cell-group voltages. The smart range should be distinguished from DALY’s hardware-only active balancers because supported smart variants add communication and parameter-management capability.

Key Features

• 13S Smart Active Balancing — Intended for a 13S battery configuration with smart/configurable functionality.

• Up to 1A Balance Current — DALY specifies the smart 1A family for balance current of up to 1A.

• Active Energy Transfer — Redistributes energy within the battery to help reduce voltage differences between connected cell groups.

• Communication-Capable Design — DALY’s smart balancers support parameter communication/configuration through the interface provided by the specific version.

• Interface Variants — DALY documents UART/RS485 and dual-UART versions; exact communication capability must be confirmed for the supplied product.

• Chemistry Support by Version — UART/RS485 versions are documented for Li-ion and LiFePO4, while the dual-UART family additionally lists LTO. Confirm the supplied version before claiming LTO compatibility.

How It Works

The balancer is connected to the cell-group sampling points of the 13S battery pack. These connections allow the module to monitor the relevant cell-group voltages and perform active balancing according to its configured operating conditions. Energy is redistributed within the pack to help reduce the voltage spread between groups.

Smart Balancer vs Hardware Balancer

Both product types perform active equalization, but their use cases differ. The hardware version focuses on automatic balancing using fixed operating logic. The smart version adds communication and configurable balancing behaviour depending on the exact interface version. Customers choosing between the two should therefore consider whether they need only equalization or also require parameter access and communication.

Compatibility

Use this module only with a compatible 13S pack. Before purchase and installation, verify the battery series configuration, battery chemistry, exact smart-balancer interface version, connector and harness, communication requirements and compatibility with any DALY BMS or host equipment being connected.

Applications

The 13S Smart Active Balancer can be considered for compatible battery-development projects, energy-storage batteries, solar and backup systems, battery testing and maintenance, custom lithium battery packs, and systems requiring configurable active equalization.

Important Note

DALY identifies the smart active-balance module as a balancing device and not a replacement for the BMS. The DALY Smart Active Balancer 13S 1A should therefore be used to add or enhance active equalization within a correctly designed 13S battery system while an appropriate BMS continues to provide the protection and switching functions required by the finished battery pack.
