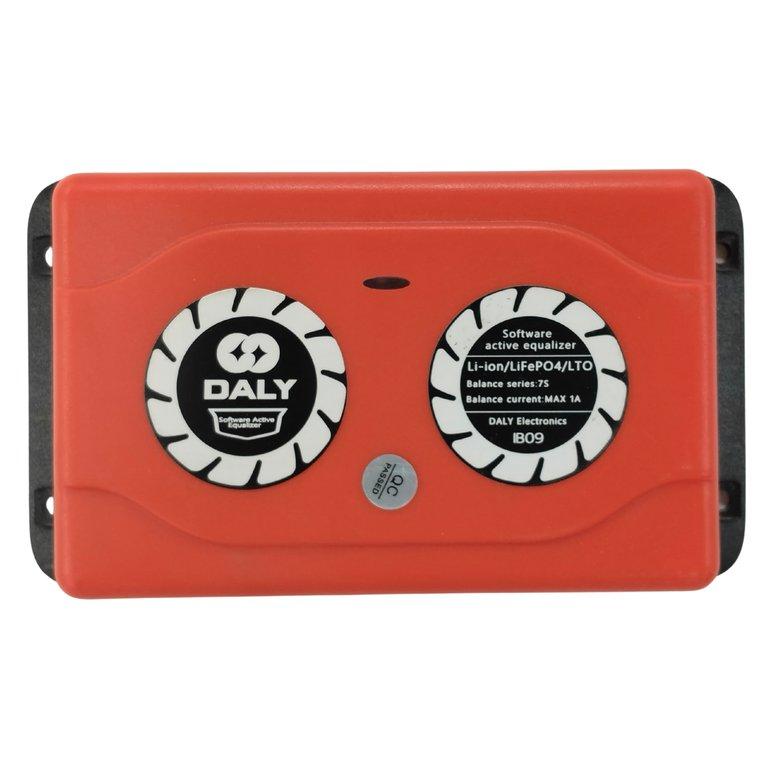

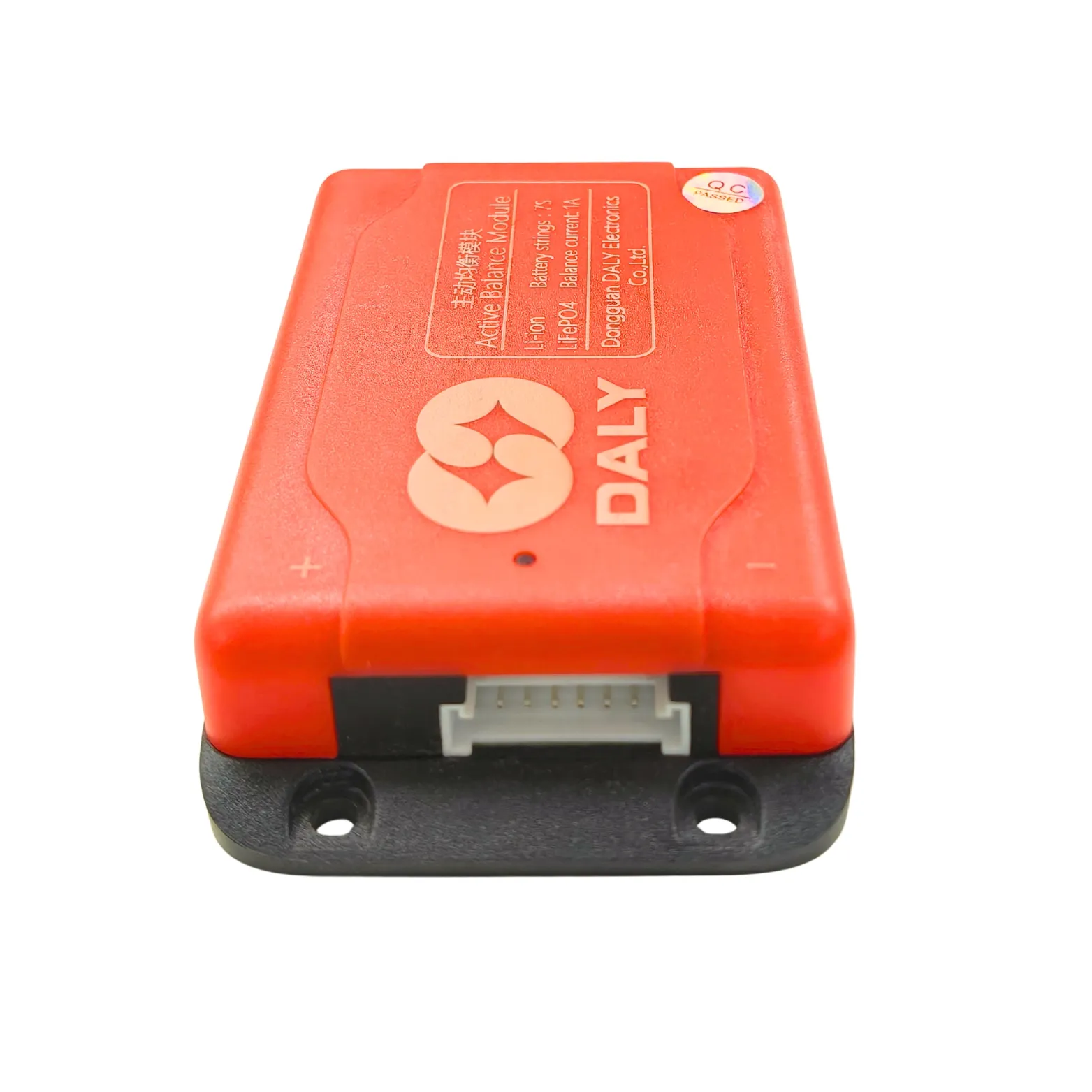

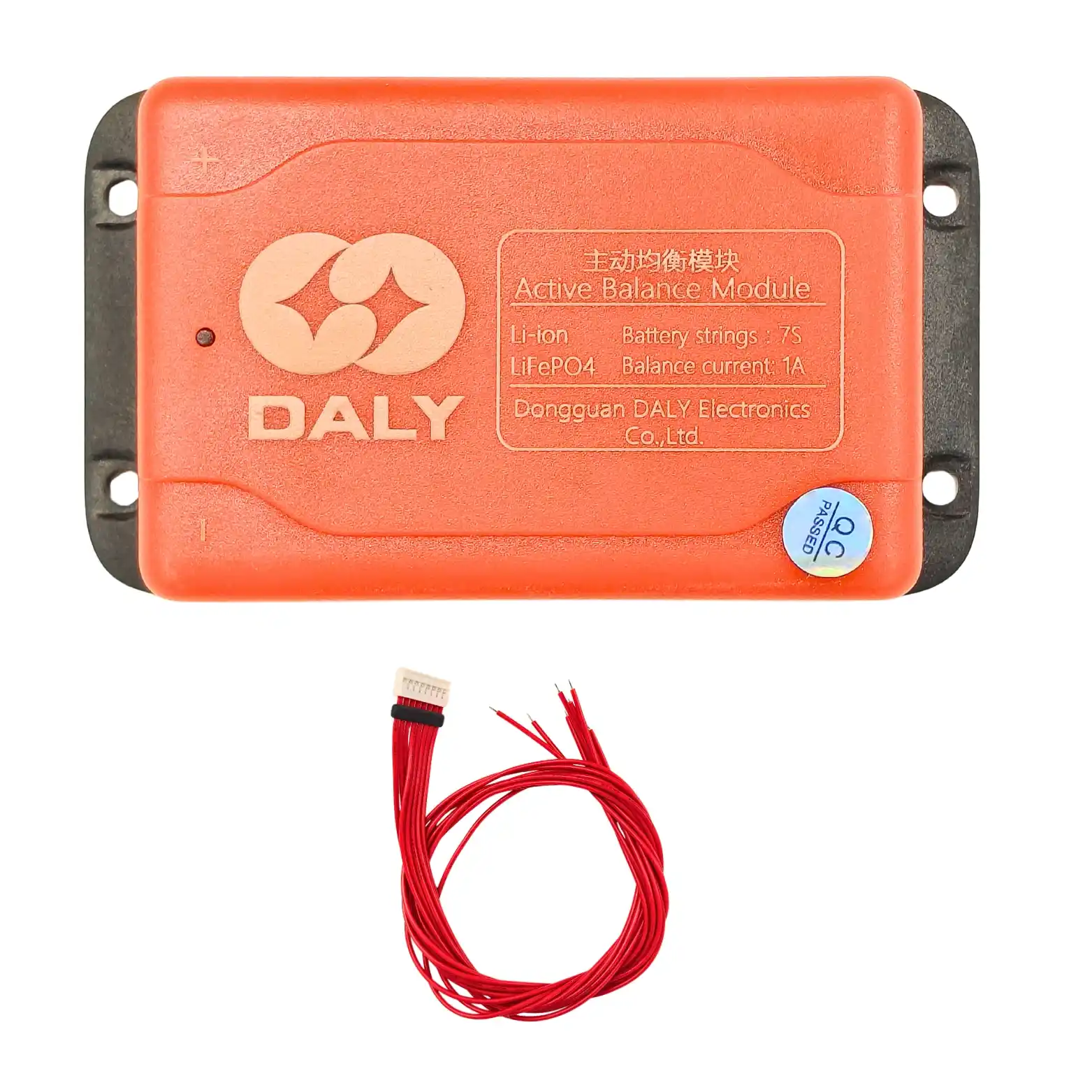

DALY HARDWARE ACTIVE BALANCER 7S 1A

DALY HARDWARE ACTIVE BALANCER 7S 1A

The DALY HARDWARE ACTIVE BALANCER 7S 1A is a DALY active cell-balancing module identified in the source list as a 7S, 1A hardware active balancer. It is intended for seven-series lithium battery packs where the builder wants a dedicated equalization device to reduce cell-to-cell voltage imbalance. Unlike a full battery management system, an active balancer is focused on balancing and should not be treated as a replacement for overcharge, over-discharge, overcurrent, short-circuit or temperature protection unless those functions are provided by a separate BMS.

Active balancing moves energy between cell groups instead of simply dissipating excess energy as heat through passive bleed resistors. This can be useful in multi-cell packs where small differences in capacity, self-discharge or state of charge cause the groups to drift apart over repeated cycles. The 1A designation identifies the balancing-current class of the highlighted product; actual balancing behavior depends on cell voltage difference, wiring resistance, chemistry and the control logic of the exact unit.

The highlighted configuration is 7S with a 1A balancing-current class. Current market references for DALY 7S 1A active balancers also position them for lithium-ion and LiFePO4 battery systems, but chemistry compatibility and operating thresholds should be verified from the exact stock label or manual before installation. The equalizer requires one connection to each cell-group potential in sequence. A wiring error on a balance harness can expose the electronics to the wrong voltage and can damage the device or battery pack.

Balancing should be used to correct normal state-of-charge differences, not to mask a weak, damaged or internally shorted cell. If one cell group repeatedly diverges after balancing, the underlying cells, welds, busbars and connections should be tested. High resistance in one interconnect can also create misleading voltage differences under load. For that reason, a balancer should be integrated into a battery pack only after cell condition and mechanical assembly have been verified.

Select this module for a true 7S battery architecture and confirm the supported chemistry, cell-voltage window, start-balance threshold, connector sequence and harness style. Match the balancer to the exact pack design rather than assuming that another DALY 1A balancer with a different series count can be wired the same way. If the battery already uses a BMS with active balancing, confirm whether a second balancer is permitted and whether both devices can share the same sampling points safely.

Applications

• 7S lithium battery packs requiring dedicated active cell equalization.

• Battery rebuilding and workshop balancing before final commissioning.

• EV, portable-power and energy-storage modules using a compatible seven-series architecture.

• Maintenance of packs that show moderate cell-voltage spread but otherwise healthy cells.

• OEM and prototype battery projects where separate protection and balancing modules are used.

Installation Guide

Disconnect the charger and load and verify all seven cell-group voltages before wiring. Follow the exact harness order from pack negative through each successive positive tap, and never insert the connector if the measured sequence is wrong. Route balance wires away from high-current busbars and sharp enclosure edges, secure them against vibration and protect them from abrasion. After connection, monitor cell voltages to confirm that the balancer is responding normally. Stop testing if any lead or device becomes unexpectedly hot or if a cell group moves outside the intended voltage range.
