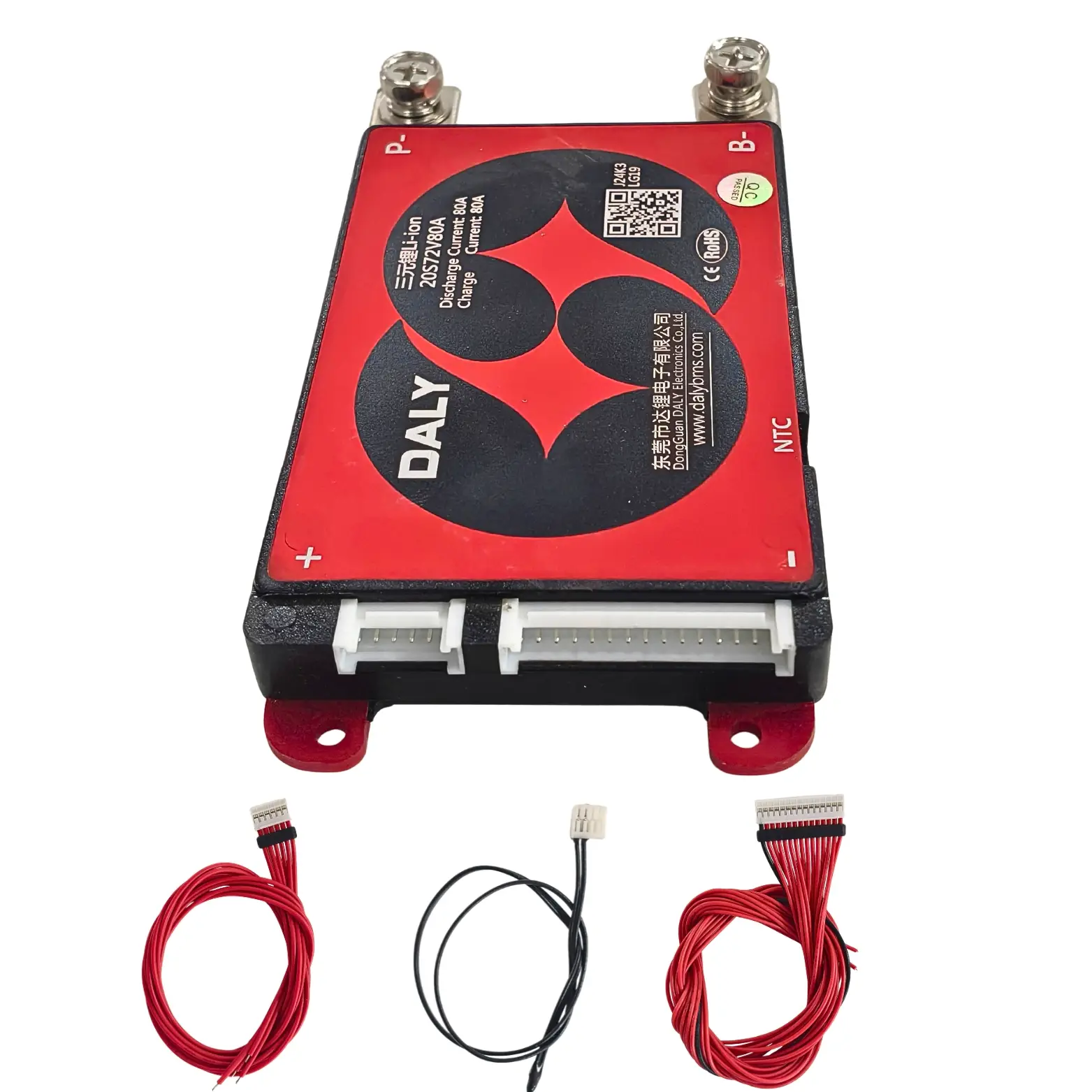

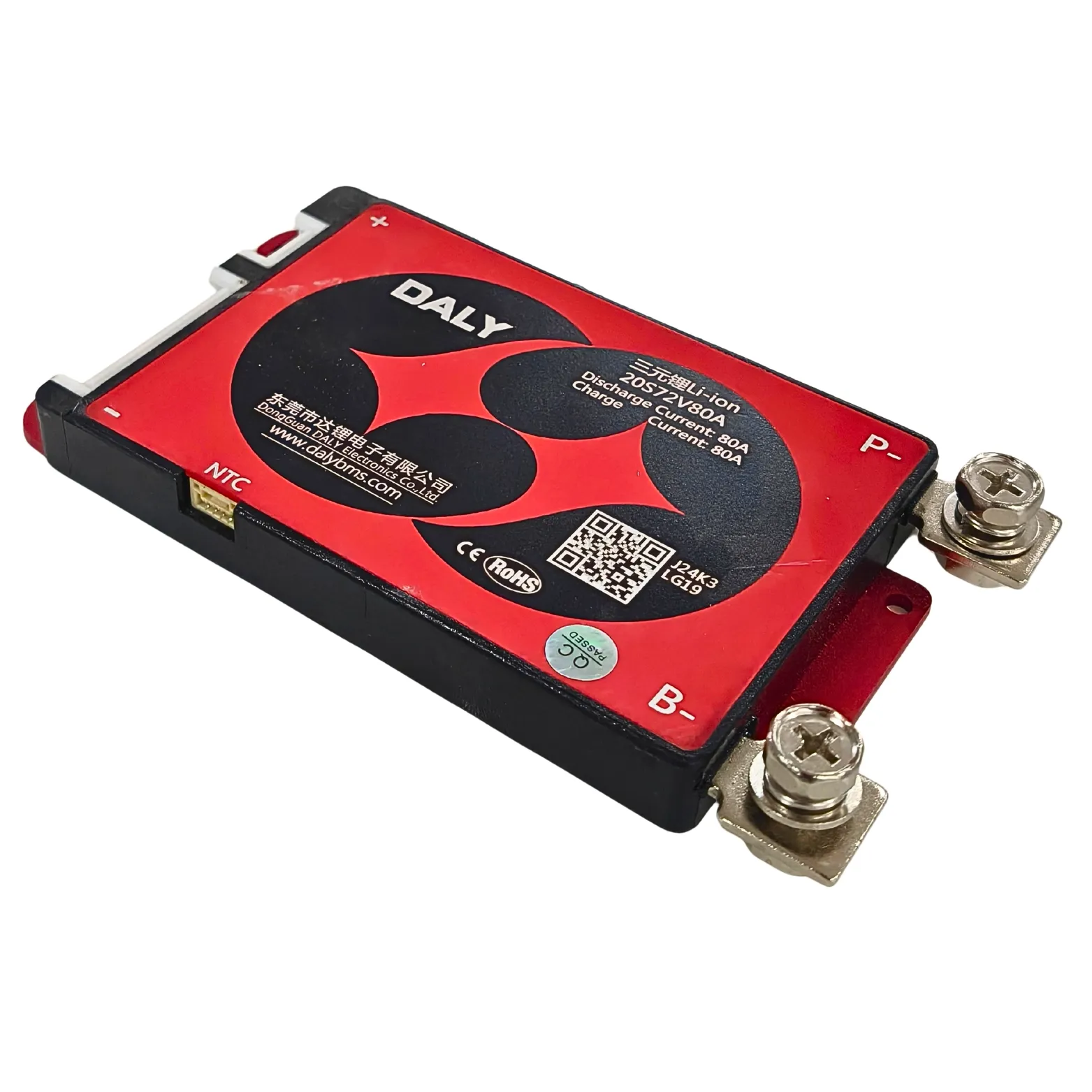

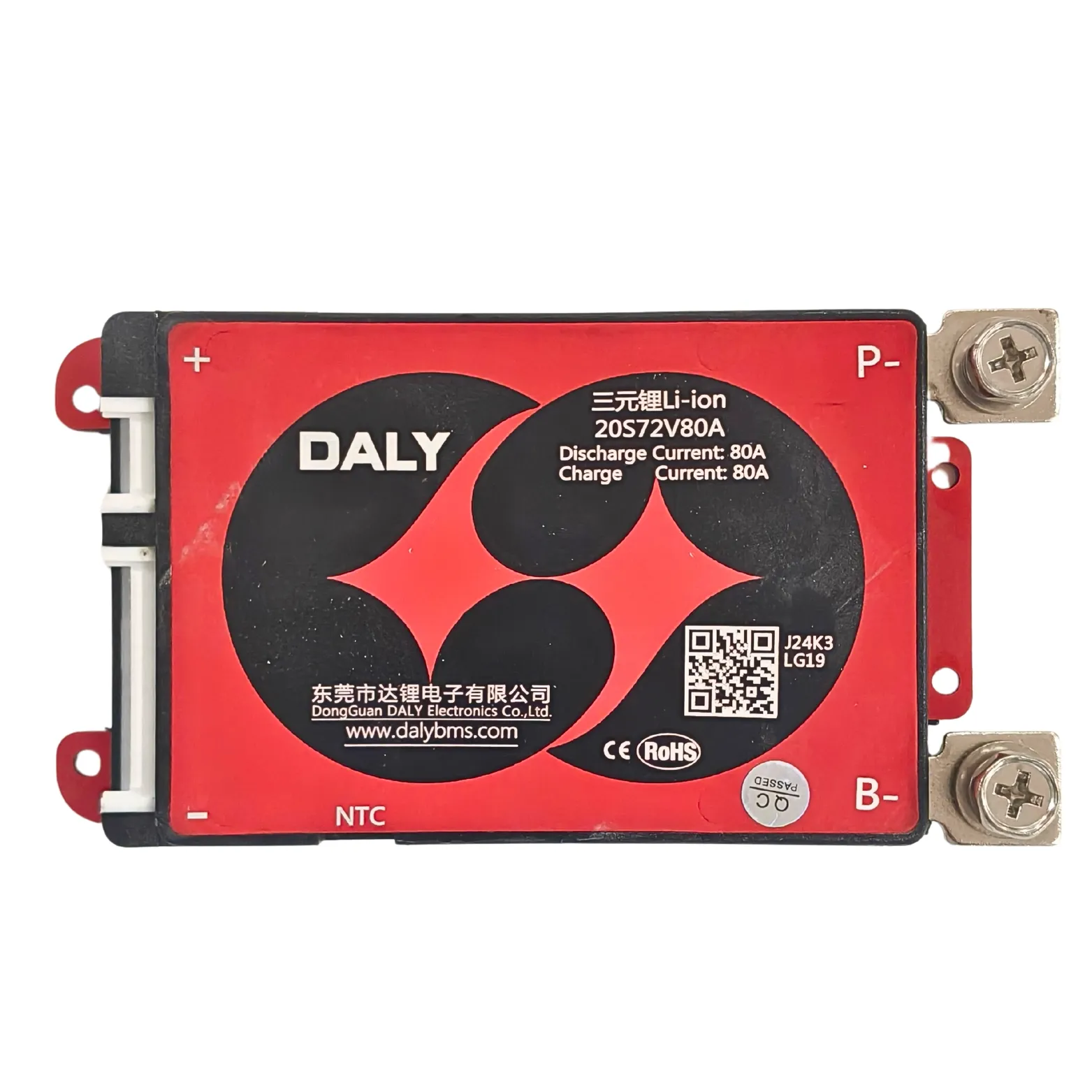

DALY BMS NMC 20S 80A

20S 80A NMC Battery Management System

The 20S 80A NMC BMS is a battery management and protection board for packs built with 20 series-connected cell groups. The 80A designation identifies the current class of this variant, while 20S identifies its series configuration. These are separate selection requirements: the current class relates to the power path, and series count relates to the battery voltage architecture. This board is intended for correctly matched pack construction, service replacements and system integration. It should be selected alongside the cells, charger, interconnects and load so that the entire battery operates within a consistent set of electrical limits.

A 20S NMC pack has a nominal voltage reference of approximately 72–74V, calculated from 3.6–3.7V per series group. Nominal voltage describes a battery class rather than a fixed output or charging setpoint. Actual operating limits come from the selected cells and the completed pack design. In a series pack, one group can reach its voltage limit before the total pack voltage appears unusual, which makes reliable connections to individual groups important.

For a 80A-class installation, cable size, connection resistance, terminal security and heat dissipation all affect practical performance. A higher BMS current class does not increase cell capacity or correct undersized conductors. The fuse and load controller must also suit the complete circuit.

Match this board to 20S NMC cells. Do not select a replacement by pack voltage alone, because different chemistries can have similar nominal voltages but different charging limits. Compare the terminal layout, harness sequence, board mounting space and charge-current requirement. For motor-driven equipment, account for startup demand and controller behavior. For inverter applications, consider the increase in battery current as the pack voltage falls under load.

Applications

• 20S NMC battery-pack assembly.

• Correctly matched 80A-class protection-board replacements.

• Compatible DC power and backup systems.

• Battery development and workshop integration.

• Motor-controller or inverter systems within validated pack limits.

Installation Guide

Have a technician familiar with lithium-battery assembly carry out installation. Disconnect the charger and load, inspect the pack and measure every series group before connecting the board. Follow the exact wiring diagram and connection sequence supplied for the hardware. Never assume that an existing harness has the same pin order because the plug fits. Mount the board on an insulated support, cover exposed conductive surfaces and support heavy cables so they do not strain the terminals. Commission with a controlled load and observe current, voltage drop and temperature. If a connection heats abnormally or protection repeatedly operates, identify the cause before increasing the load. Keep the wiring record with the completed pack for future service.
