DALY BMS NMC 13S 60A

DALY BMS NMC 13S 60A

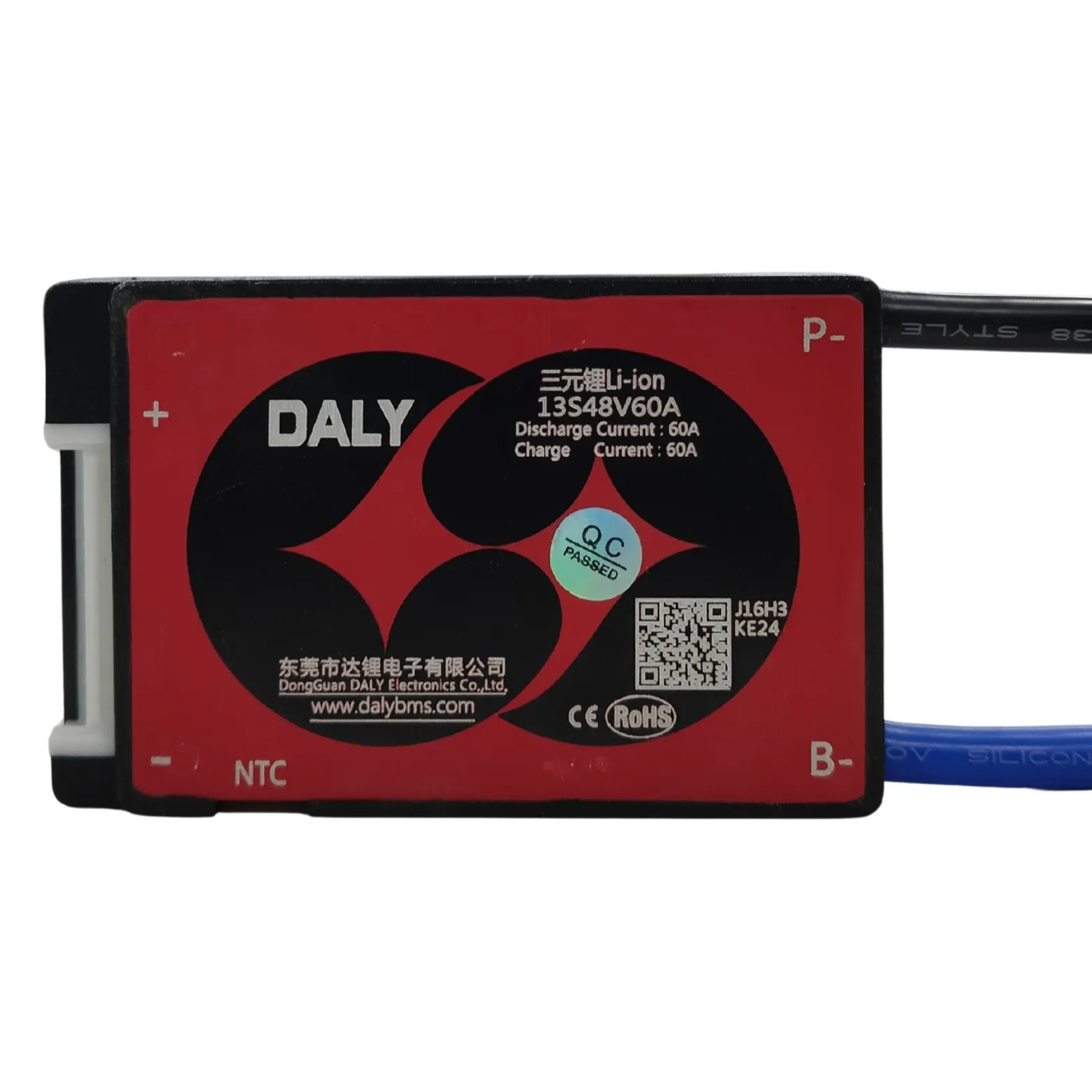

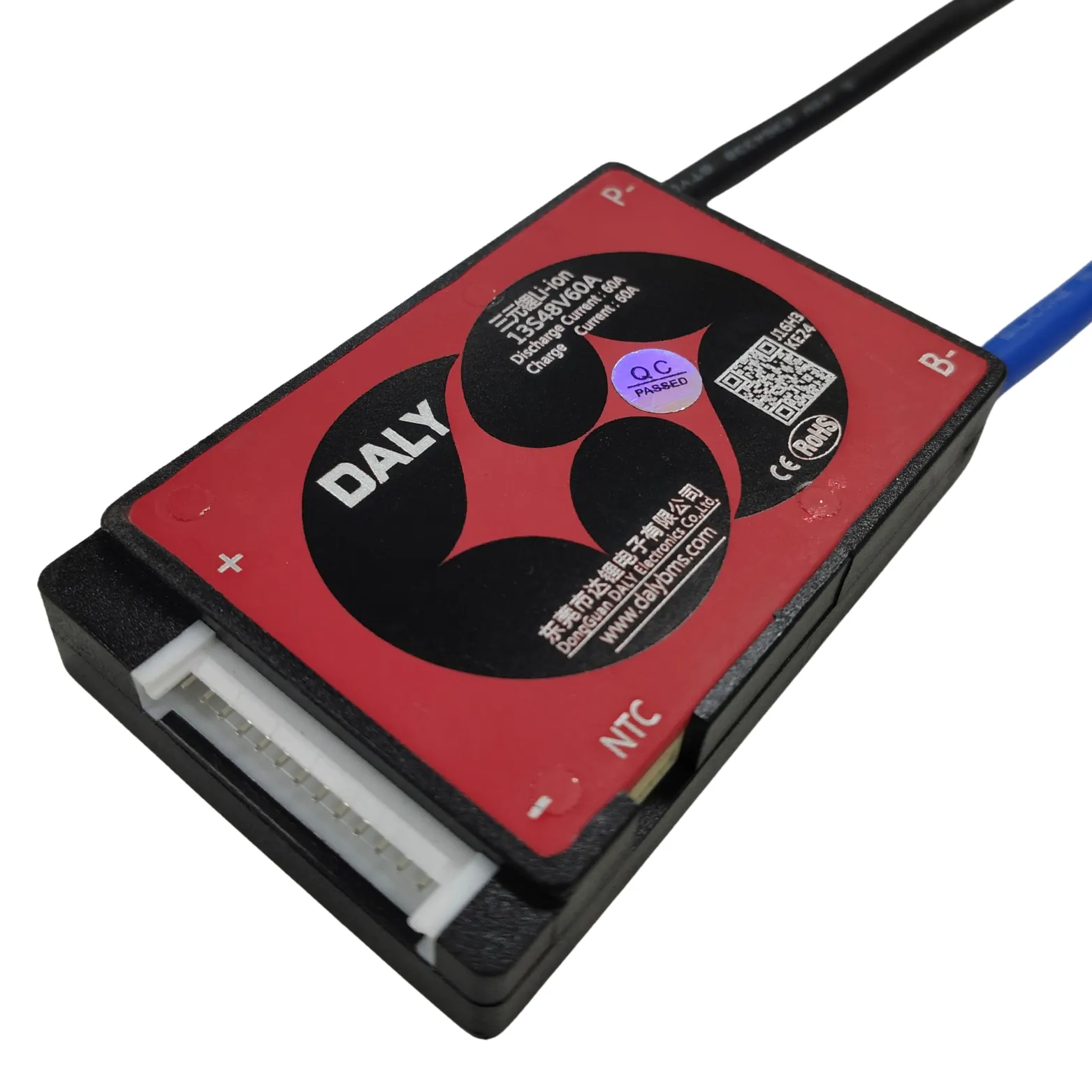

The DALY BMS NMC 13S 60A is a battery management system for a 13S NMC lithium-ion battery architecture with a 60A current class, giving lithium battery builders a dedicated protection and control layer for compatible packs. Buyers searching for DALY 13S 60A BMS, 48V lithium-ion BMS, 13S NMC battery management system, 54.6V battery protection board and EV battery BMS typically use this type of BMS in EV batteries, inverter batteries, solar energy-storage systems, backup batteries and custom lithium battery projects where chemistry, series count and load current must be matched correctly. A 13S NMC pack is commonly about 48.1V nominal with a 54.6V full-charge class.

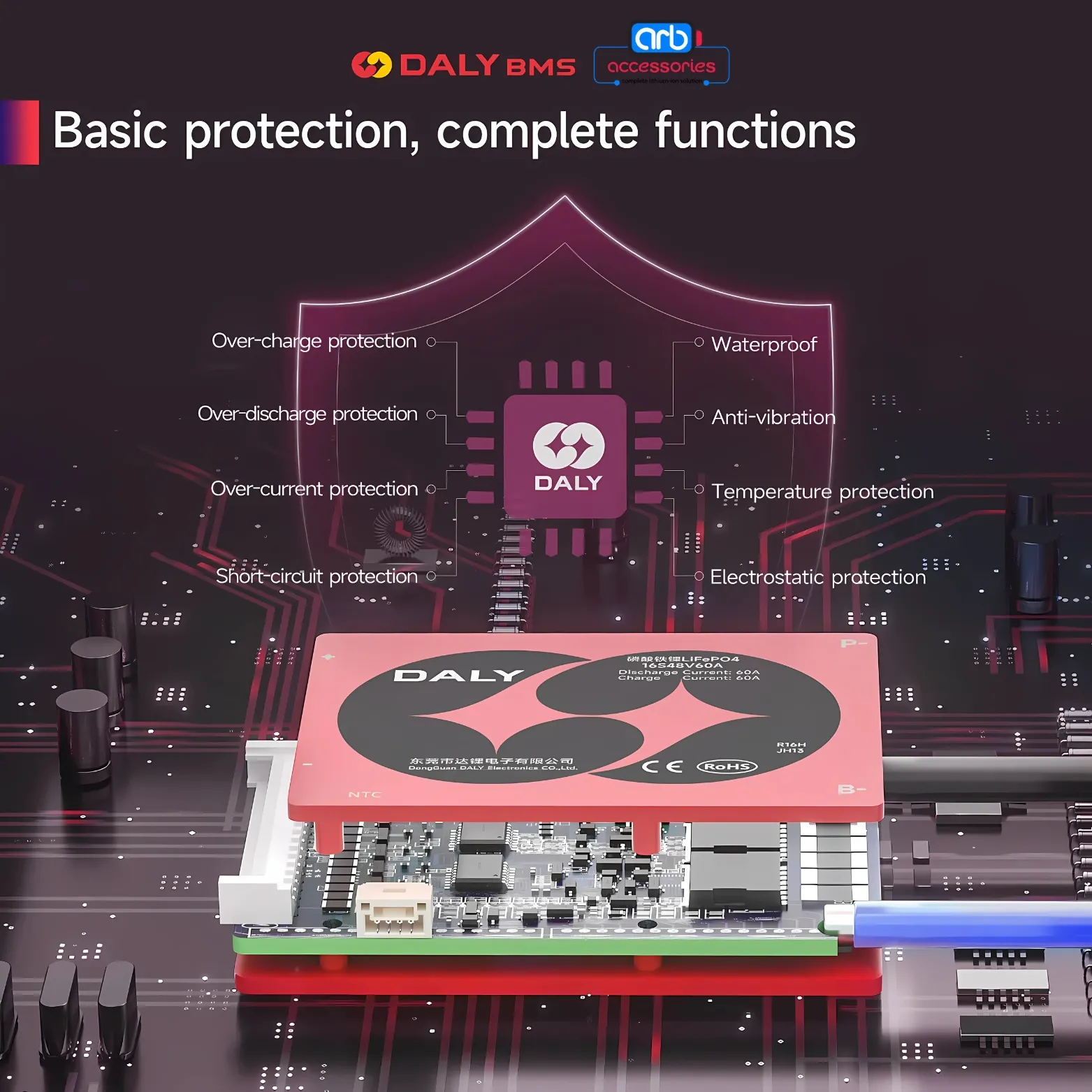

A BMS supervises individual series groups and controls the pack power path when configured protection conditions are reached. Correct chemistry and series matching are essential because NMC and LiFePO4 cells use different voltage limits and sense-wire sequences. The BMS must work as part of the complete battery system with correctly sized cells, interconnects, cable, fuse, connectors and charger.

The core engineering parameters are the 13S configuration, NMC lithium-ion chemistry and 60A current class. Current capability should be evaluated together with cable cross-section, terminal resistance, crimp or weld quality, enclosure temperature, duty cycle and the pack's expected peak demand. A high-current BMS cannot correct undersized wiring, weak terminals or an incorrect charger profile, so the full DC path must be designed to stay within safe electrical and thermal limits.

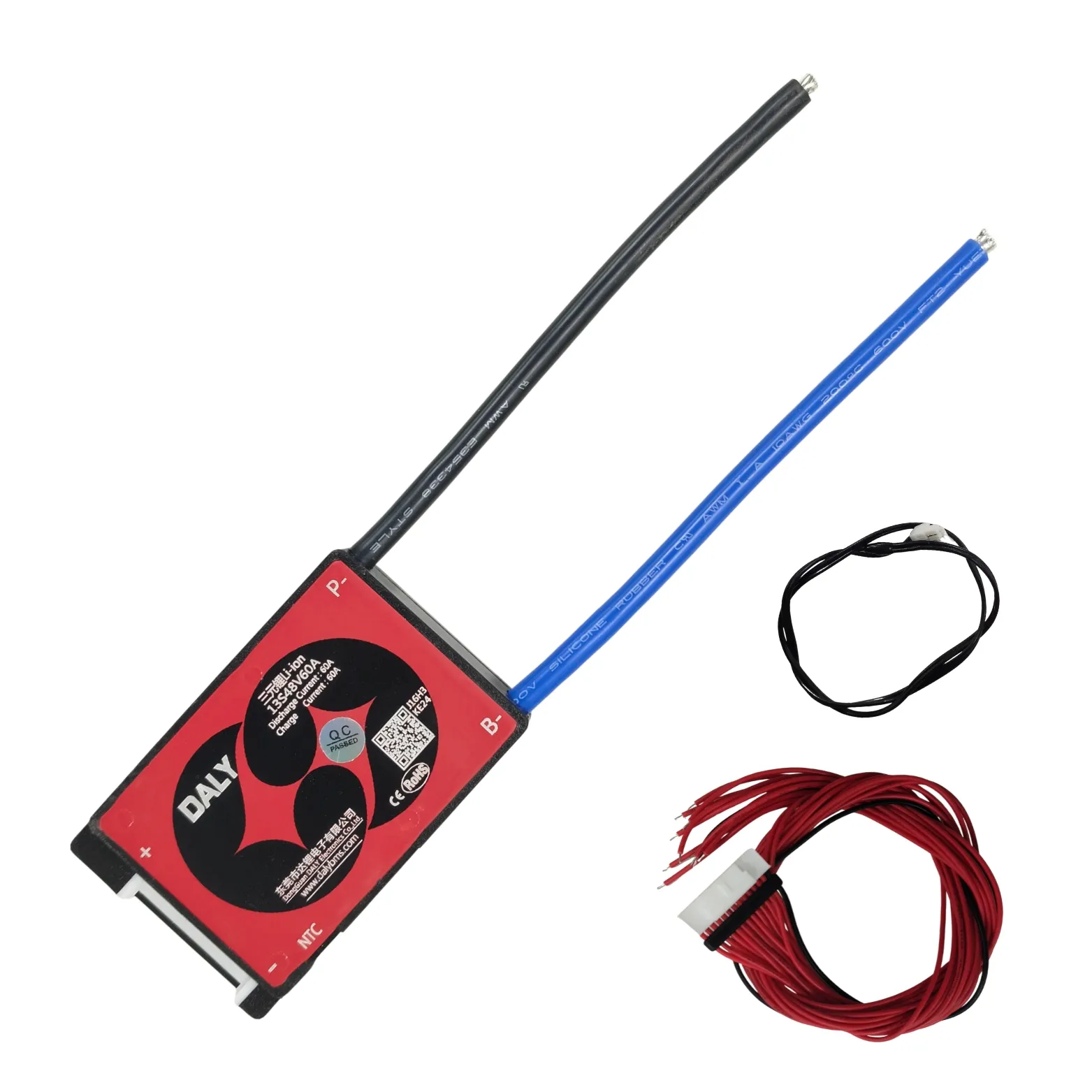

Cell-sense wiring also requires careful handling. Each series group must be connected in the correct order and checked for correct voltage before the sense harness is attached. A reversed, skipped or misplaced sense lead can expose the electronics to an incorrect voltage sequence. During replacement work, compare the terminal layout, harness order and port arrangement with the existing pack before energizing the system.

Select this BMS by matching battery chemistry, exact series count, continuous and peak load current, charger voltage profile and physical wiring arrangement. A 13S NMC pack is commonly about 48.1V nominal with a 54.6V full-charge class. Confirm the actual cell specification and charger setting before commissioning. If monitoring or communication is required, match the exact display, Bluetooth, UART, RS485 or CAN accessory to the BMS version instead of assuming interfaces are interchangeable.

Applications

• Electric scooter, e-bike and electric motorcycle battery packs.

• Custom lithium battery packs for EV and mobility projects.

• Solar, inverter and stationary energy-storage battery systems.

• Battery repair, refurbishment and BMS replacement work.

• OEM, workshop and prototype lithium battery assemblies.

Installation Guide

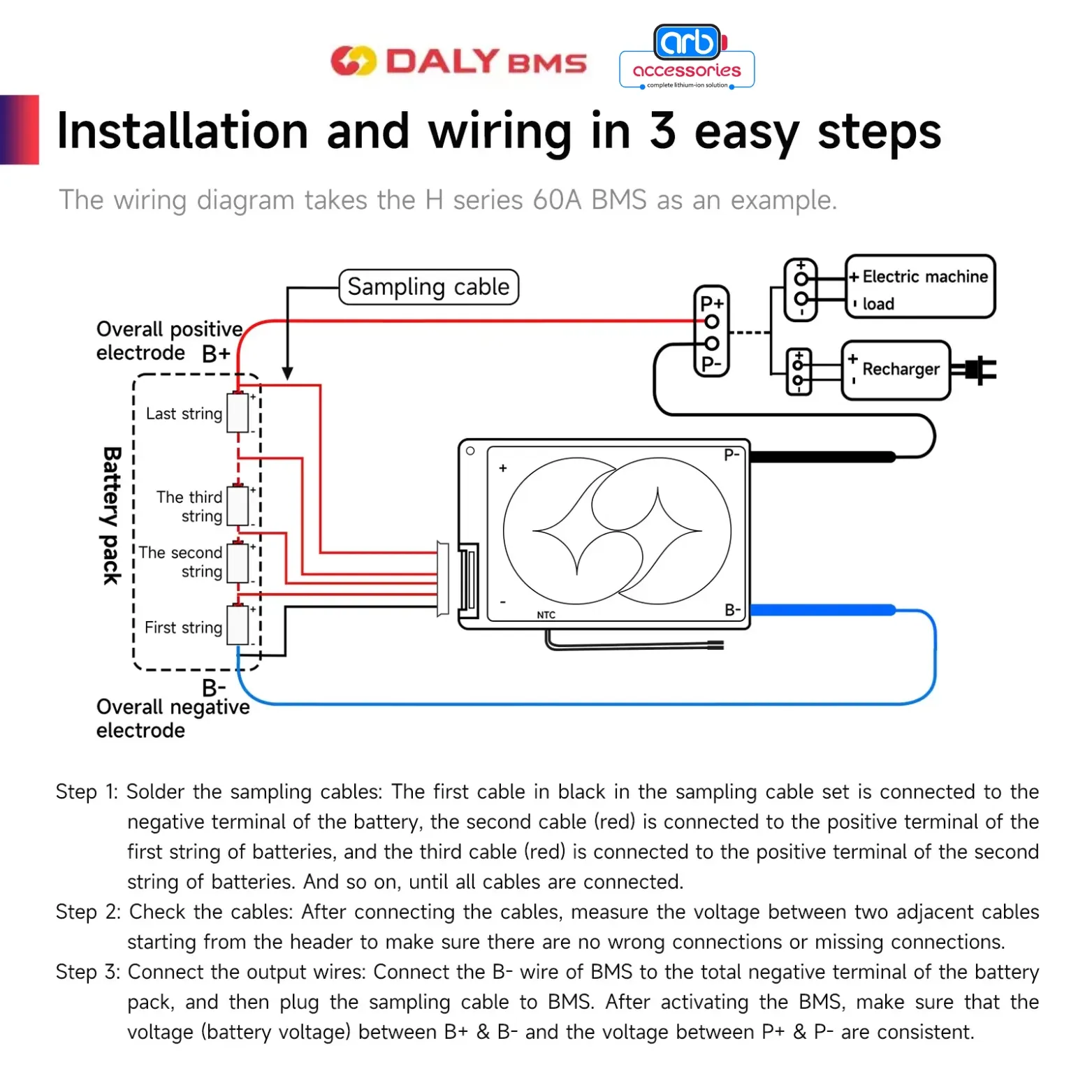

Isolate the battery from the charger and load before fitting or replacing the BMS. Measure each series group, confirm polarity and verify total pack voltage before connecting the balance harness. Connect sense leads in the correct sequence and make the main current connections with secure, low-resistance joints and suitable strain relief. Keep the BMS insulated from loose metal, cell cans and conductive enclosure surfaces. After installation, perform a controlled charge and discharge check while monitoring pack voltage, current and temperature before applying the full intended load.
