DALY BMS NMC 10S 40A

DALY BMS NMC 10S 40A

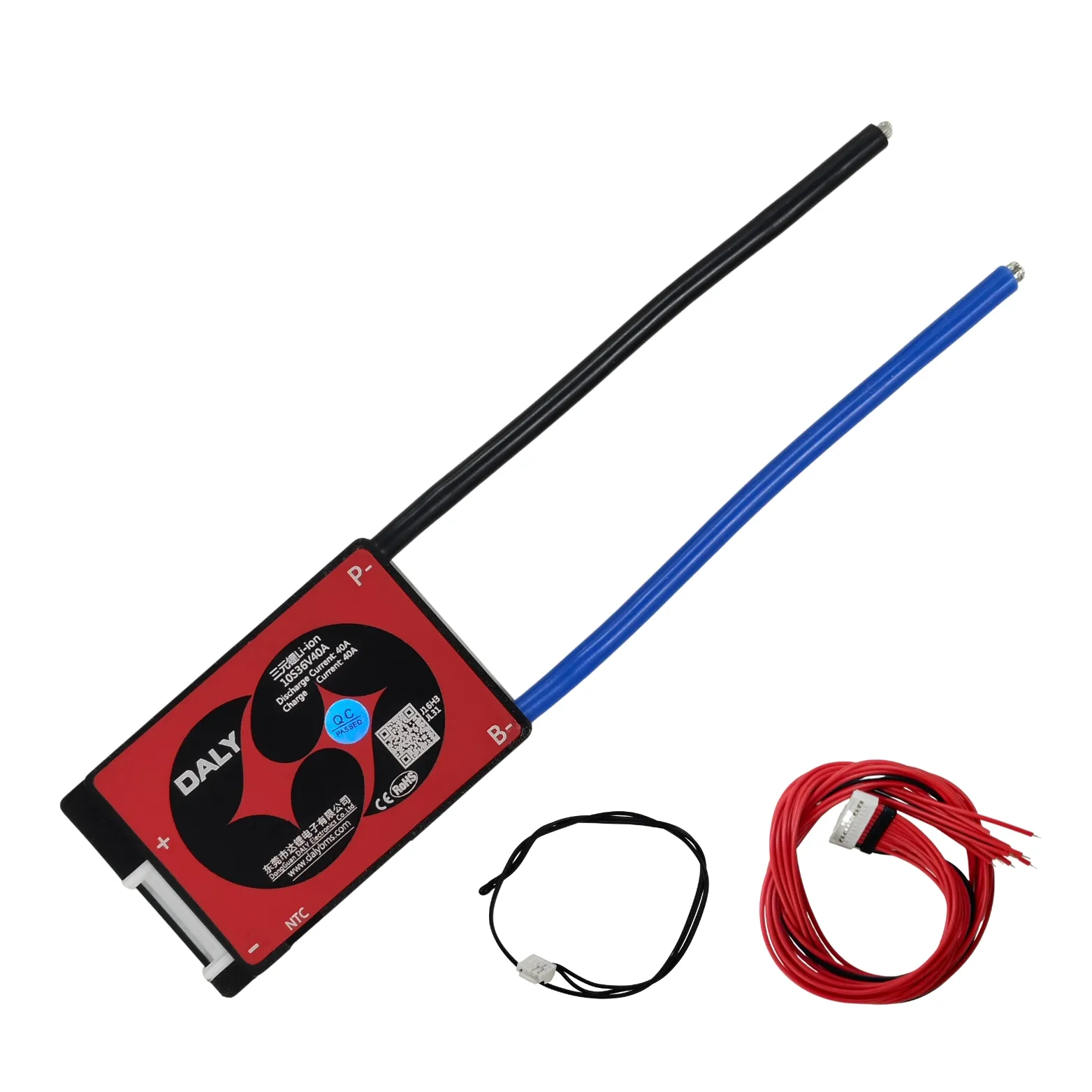

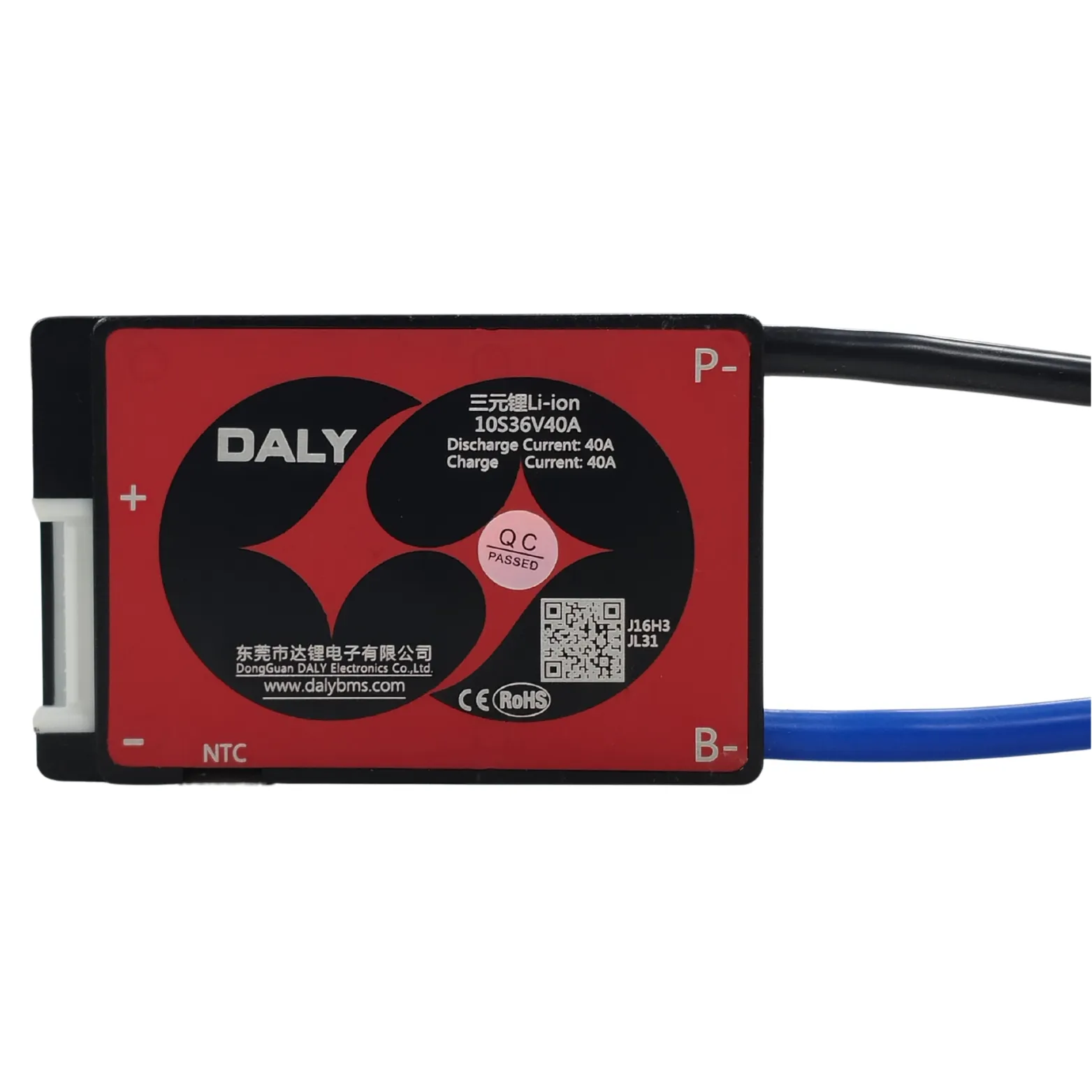

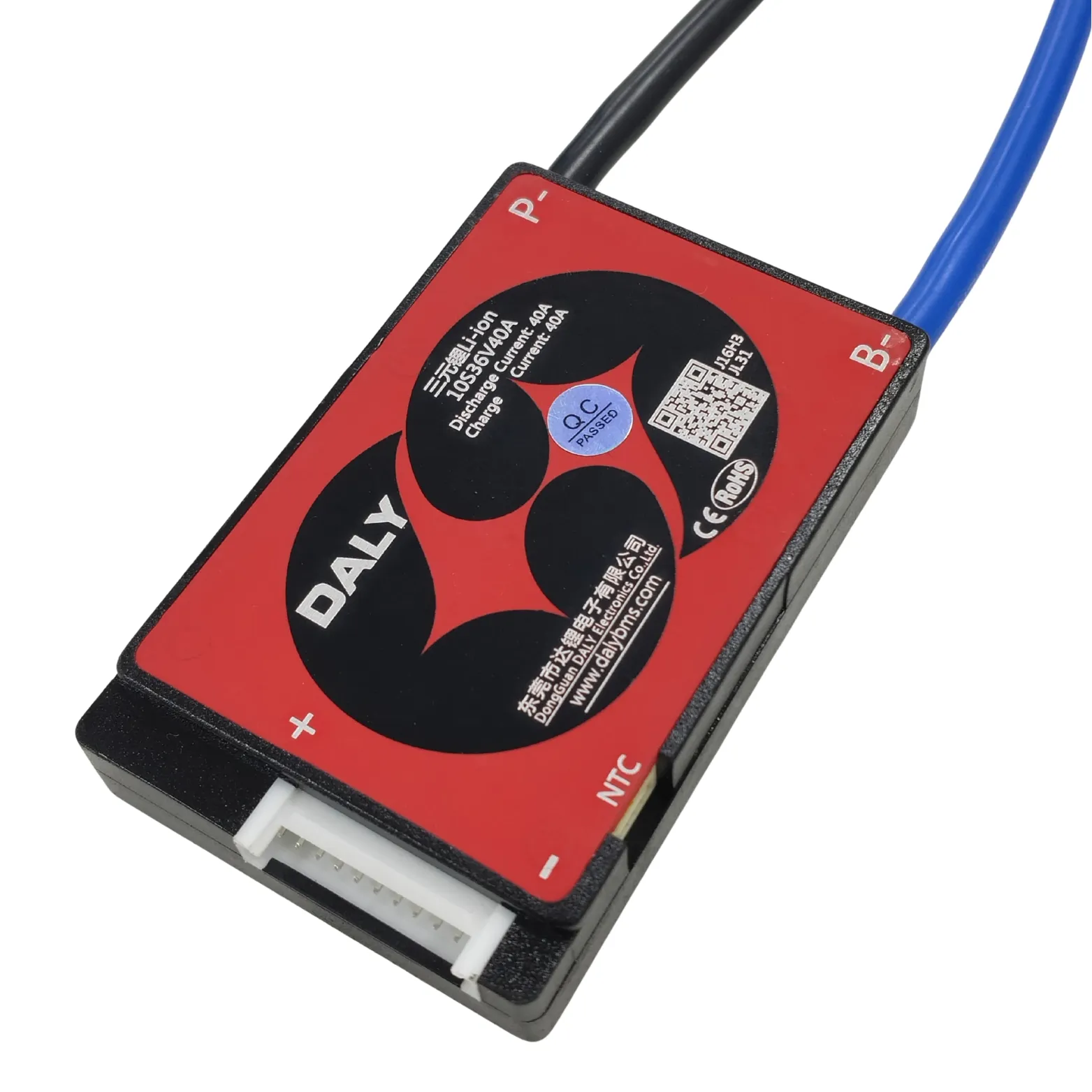

The DALY BMS NMC 10S 40A is a hardware battery-management system for 10S NMC / Li-ion lithium battery packs. Model J16H3 identifies the hardware family where supplied. It is intended for battery builders, EV service teams, inverter and energy-storage integrators, and repair workshops that need a protection board matched to the correct chemistry, series count and load requirement. Buyers commonly search for DALY 10S 40A NMC / Li-ion BMS, lithium battery protection board, 10S battery BMS and EV battery management system; the first selection check should always be chemistry and series configuration rather than physical size alone.

A BMS supervises individual cell-group voltages and the main charge/discharge path so the battery pack can be isolated when operating limits are exceeded. It is one part of the safety architecture: correct cell matching, charger selection, conductor sizing, fuse protection, insulation and mechanical assembly remain equally important. A BMS with the right current label cannot compensate for undersized wiring, loose terminals or a charger intended for another lithium chemistry.

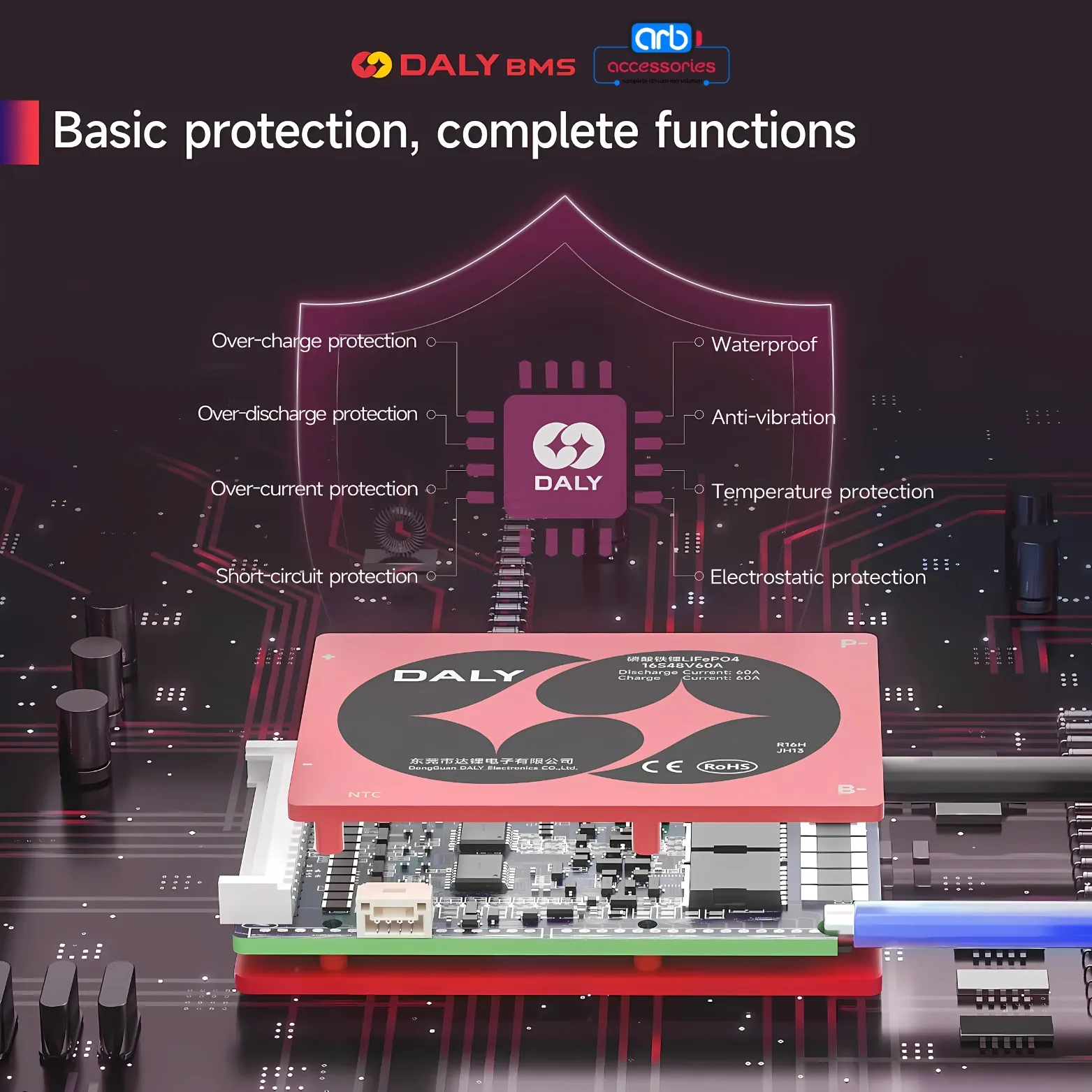

Current product documentation identifies a DALY 10S NMC hardware BMS in the 40A class, with protection functions for overcharge, over-discharge, overcurrent, short circuit and temperature conditions. The 40A current designation must be evaluated against the real continuous load, startup surge, cable size, connector resistance and cooling conditions of the complete pack. The 10S sense harness must follow the battery stack in sequence and the charger must use the correct NMC profile for the full series pack. The sense harness must follow the cell-group sequence in the correct order so the board reads each series section accurately. Before the harness is connected, measure the voltage between adjacent sense points and confirm that polarity progresses in the expected direction from pack negative to pack positive.

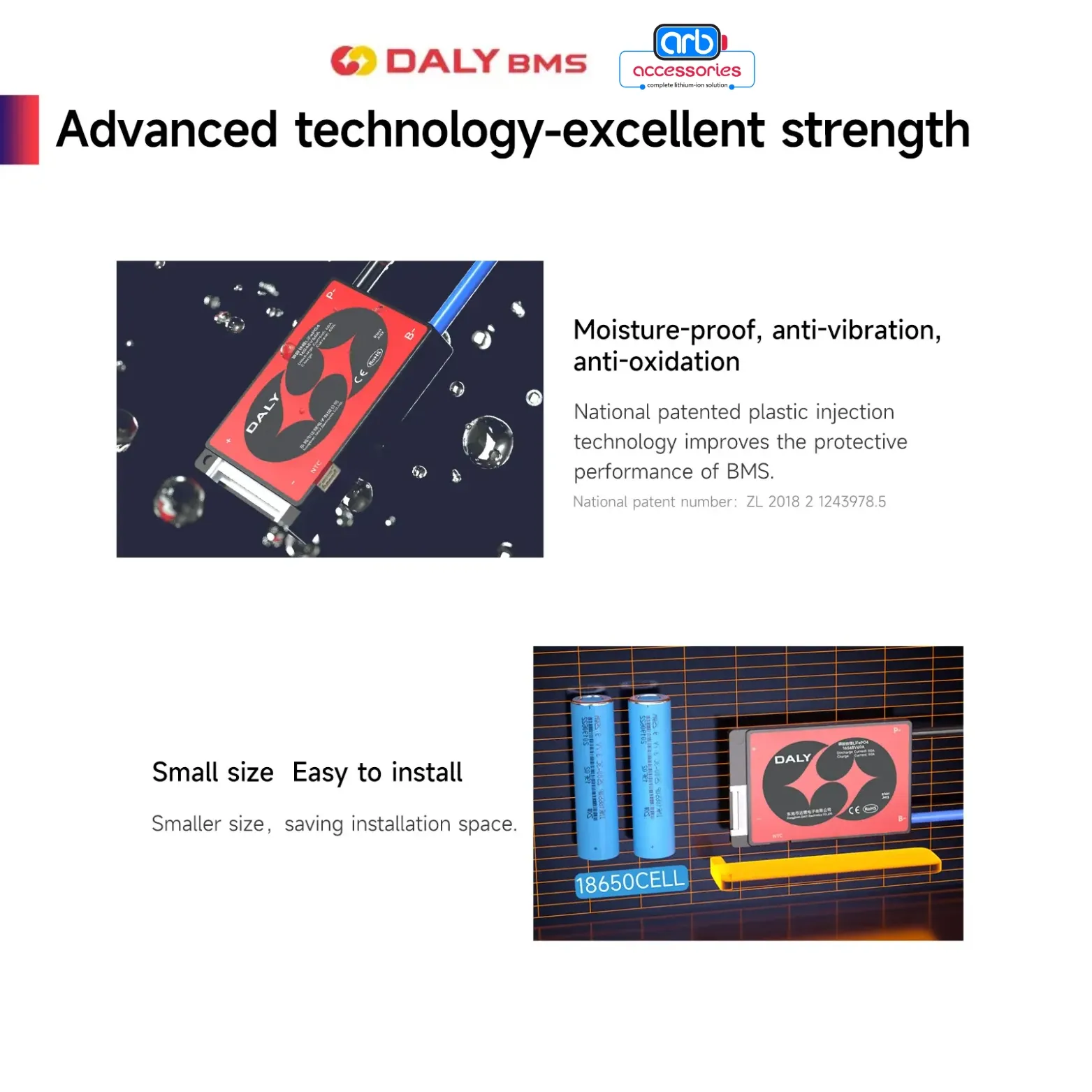

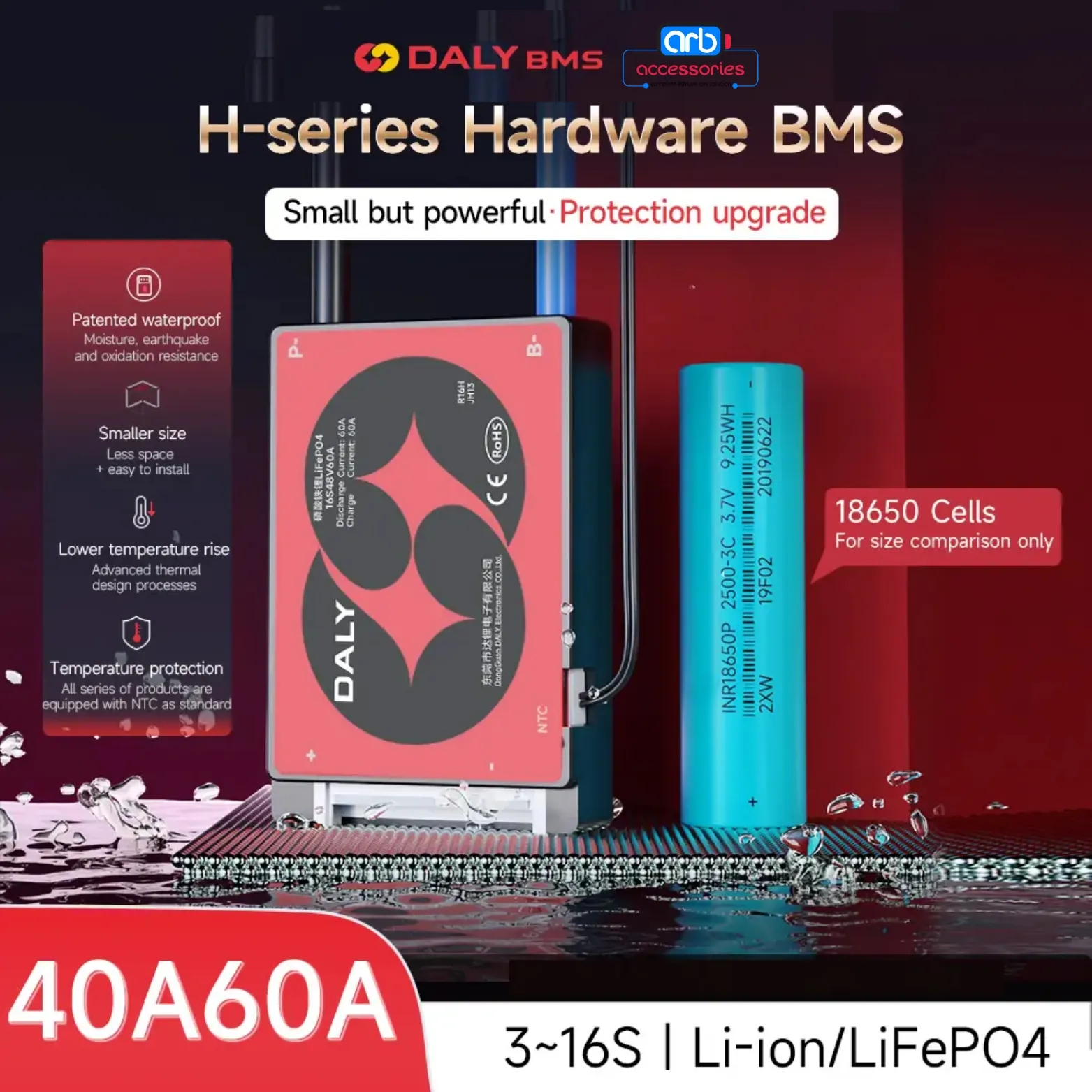

This is presented as a standard hardware/waterproof DALY BMS, not a smart Bluetooth/CAN communication unit. Heat generation in a battery pack is influenced by MOSFET losses, conductor resistance, crimp quality, busbar or nickel-strip sizing and enclosure ventilation. Mount the BMS so that its heat-dissipating surfaces are not buried under insulating foam unless the manufacturer specifically allows it. Keep the board protected from conductive debris and from mechanical pressure that could damage components or the enclosure.

Choose this DALY BMS by matching battery chemistry (NMC / Li-ion), exact series count (10S), continuous and peak current demand, charge/discharge port arrangement, connector layout and any required communication interface. For replacement work, compare the model code, balance-harness pinout, cable orientation and mounting space with the existing unit. The charger must use the correct voltage profile for the complete 10S NMC / Li-ion pack, and the motor controller, inverter or DC load should remain within the verified operating envelope of the BMS and wiring.

Applications

• 10S NMC / Li-ion lithium battery pack assembly and replacement.

• Electric scooter, e-bike and light-EV battery systems when voltage and current requirements match.

• Solar, UPS and energy-storage battery modules using the same battery chemistry.

• Industrial battery packs, robotics and portable power systems.

• Battery repair, testing and workshop projects requiring a compatible BMS.

Installation Guide

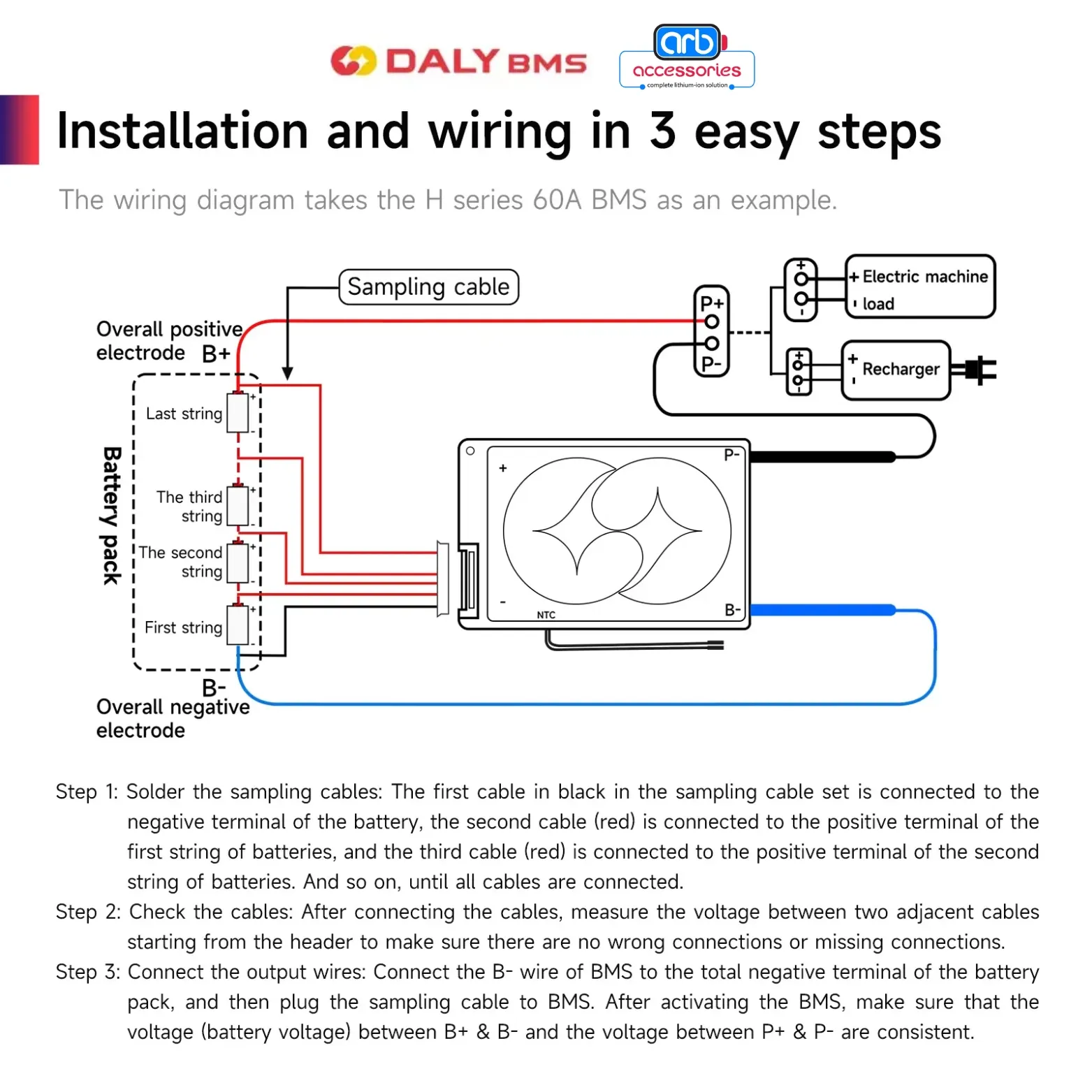

Isolate the battery pack from the charger and load before installation. Confirm every series-group voltage and the total pack voltage before inserting the sense connector. Connect power leads with the correct polarity, use suitably sized insulated conductors, and secure crimped or bolted joints so vibration cannot loosen them. Never allow tools, loose nickel or exposed cable ends to bridge adjacent cell groups. After wiring, commission the pack with a controlled charge and a moderate load first; monitor cell voltages, BMS response and temperature before applying the intended operating current.
