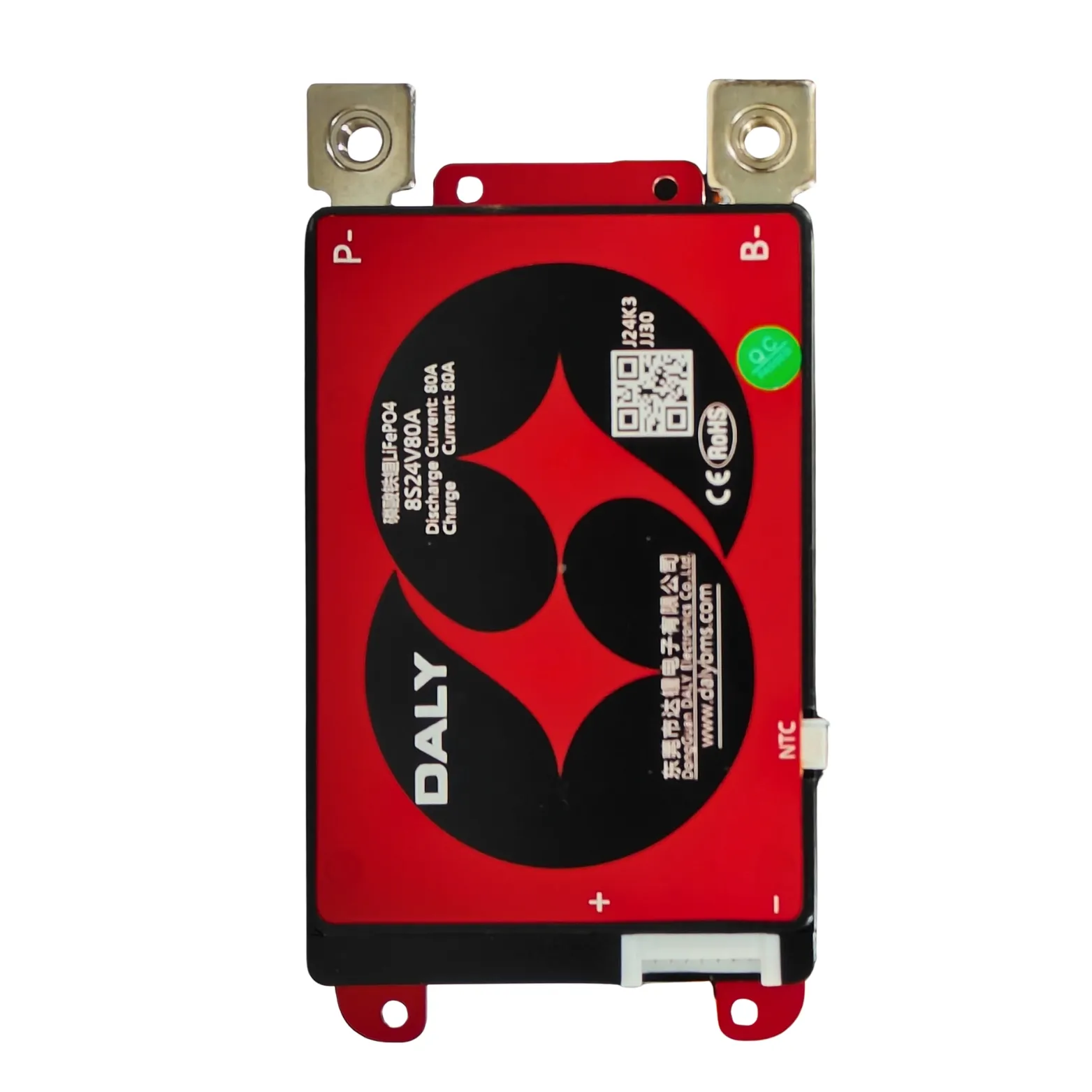

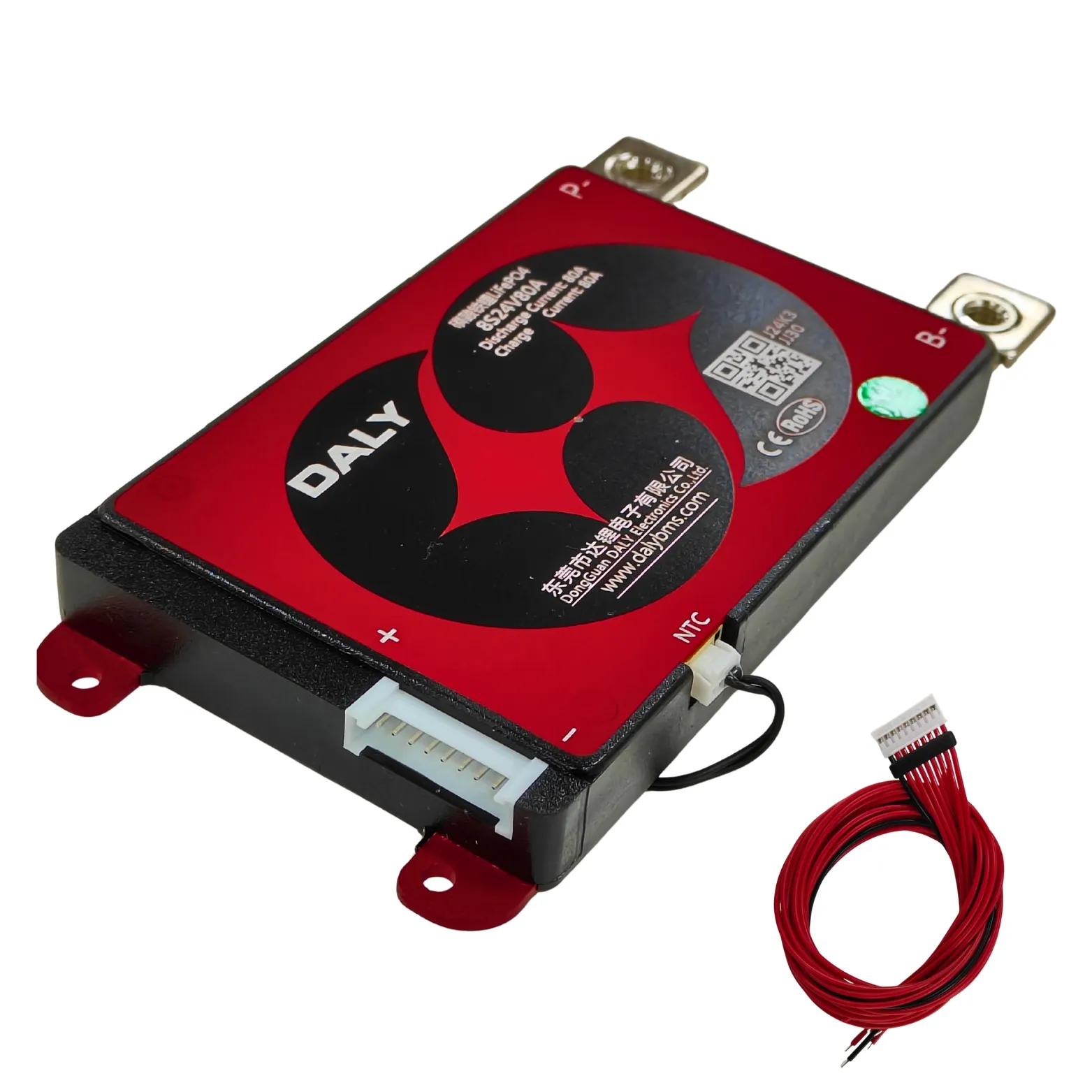

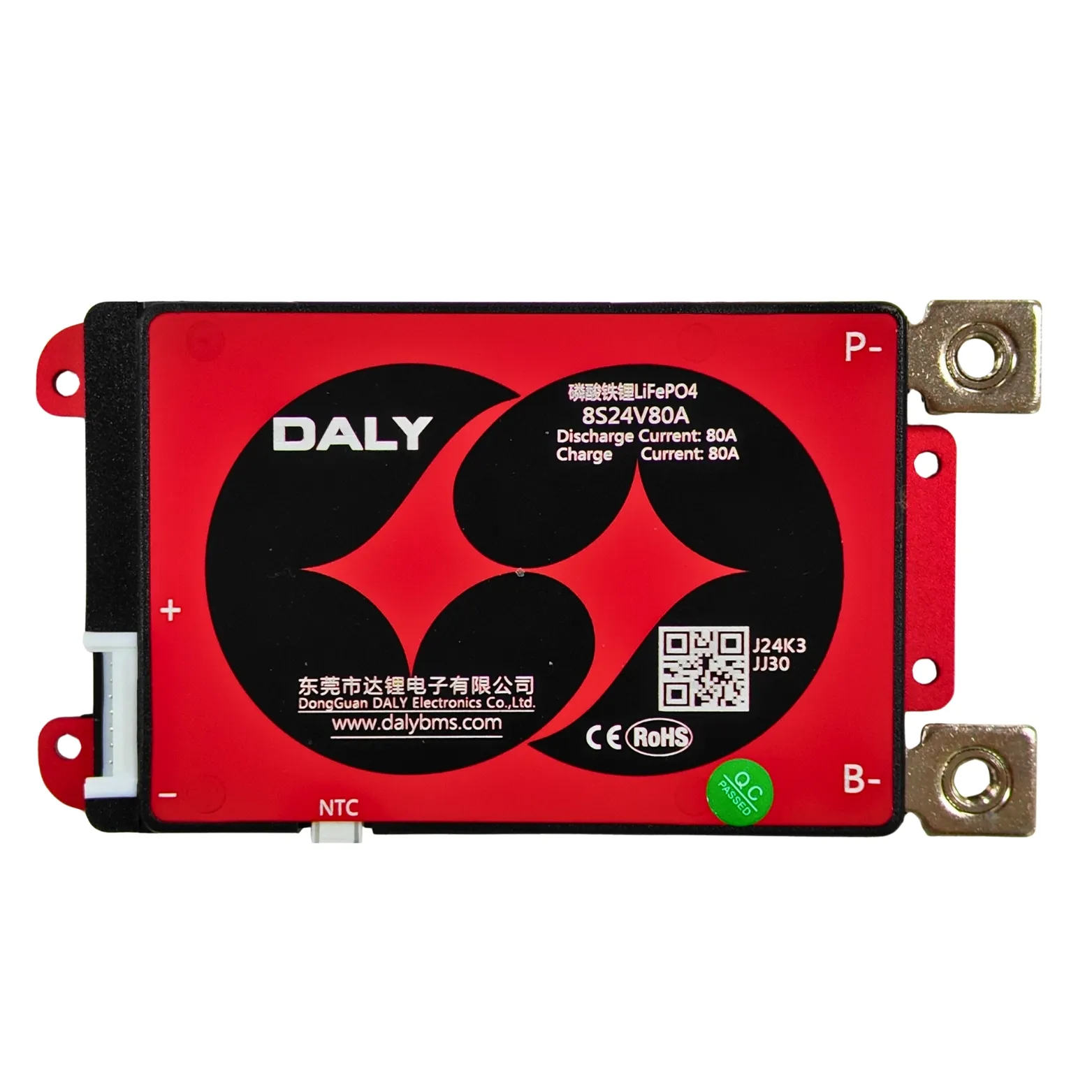

DALY BMS LFP 8S 80A

DALY BMS LFP 8S 80A

The DALY BMS LFP 8S 80A is a DALY 8S 80A LiFePO4 BMS intended for lithium battery packs that use a LiFePO4 voltage profile and a 8S series configuration. It is a buyer-relevant option for battery pack assembly, EV battery repair, energy-storage integration and replacement work where the pack design requires a 80A current-class battery protection BMS.

A battery management system sits between the cell stack and the charge/discharge path, supervising pack conditions and interrupting current when its protection logic detects an unsafe event. For buyers searching terms such as DALY 8S 80A LiFePO4 BMS, lithium battery BMS, 8S battery protection board, EV battery BMS and battery management system for LiFePO4 packs, the most important starting point is chemistry and series count. A BMS intended for one lithium chemistry should not be selected only because the physical connector or current rating looks similar.

The 80A rating should be matched to the real continuous load, expected startup surge and thermal conditions of the battery system rather than treated as a target operating point. Cable cross-section, nickel or busbar sizing, connector resistance, terminal quality and enclosure airflow all influence heat generation in a high-current lithium battery pack. A correctly selected BMS cannot compensate for undersized wiring or weak interconnects, so the full current path should be engineered as one system.

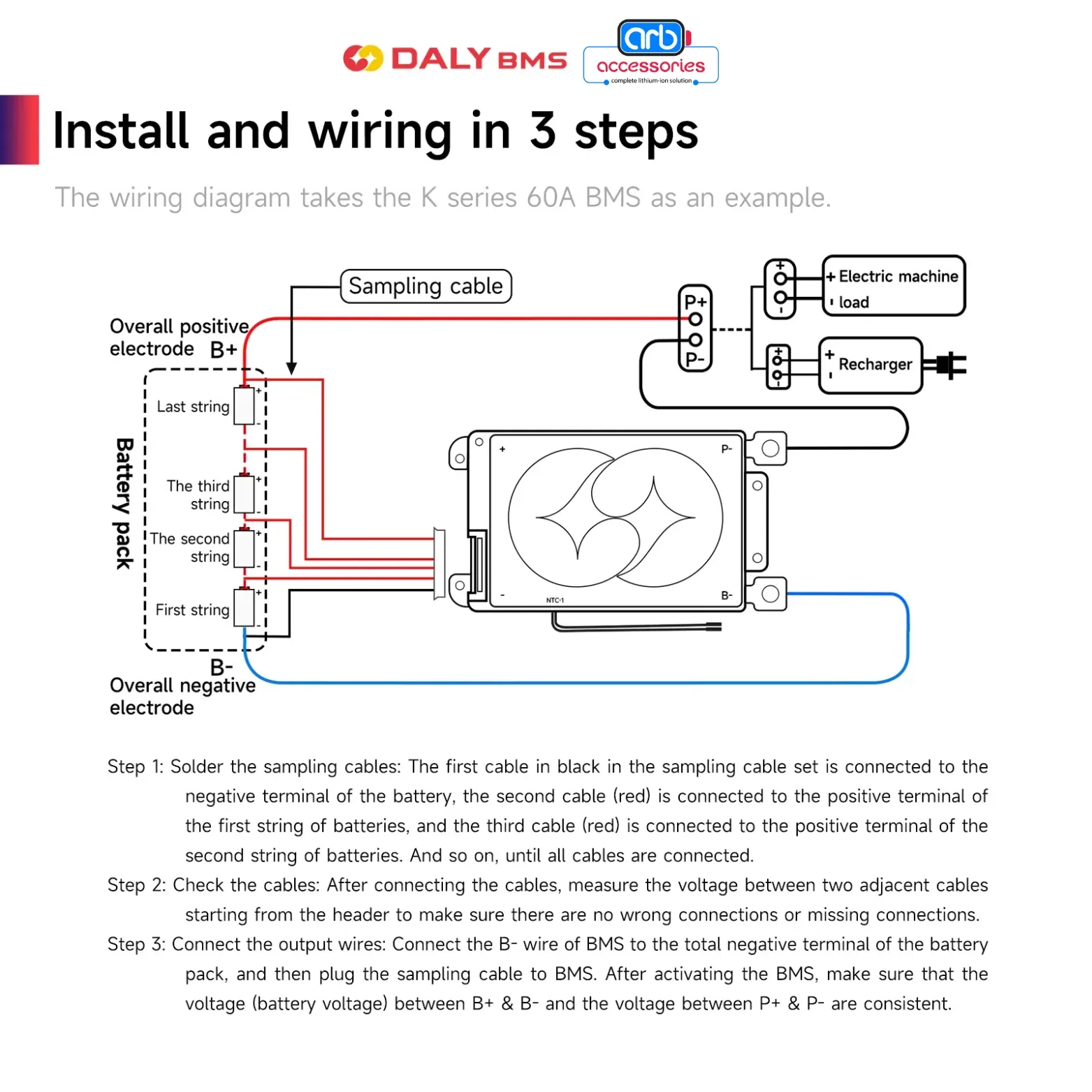

For LiFePO4 battery packs, the charger voltage profile must match the cell chemistry and the exact 8S architecture. Sense leads or balance leads should follow the cell-group sequence in the correct order so the BMS reads each series group accurately. Before full-power commissioning, measure the individual group voltages and total pack voltage with a suitable meter, then confirm that polarity and harness order are correct. Smart variants may support monitoring or communication depending on the exact hardware and accessory package, but the physical model and supplied interfaces should be checked before integration with displays, Bluetooth modules, CAN equipment or inverter communication.

Choose this DALY 8S 80A LiFePO4 BMS by matching five points: battery chemistry, exact series count, continuous current requirement, charge/discharge port architecture and physical/communication interface requirements. Also check the intended charger, motor controller or inverter load, because startup current and regenerative or charging behavior can affect BMS selection. For replacement work, compare the model code, connector orientation, lead layout and mounting space with the existing unit instead of selecting by current rating alone.

Applications

• 8S LiFePO4 lithium battery pack assembly and repair.

• Electric scooter, e-bike and light-EV battery systems when the pack voltage and current requirements match.

• Solar, UPS and energy-storage battery modules using a compatible lithium chemistry.

• Custom battery packs for industrial equipment, robotics and portable power systems.

• Battery rebuilding, testing and workshop replacement projects that require a 80A-class BMS.

Installation Guide

Isolate the battery pack from the charger and load before installing or replacing the BMS. Verify cell-group polarity and voltage in sequence before attaching the sense harness, and never allow adjacent balance leads or main terminals to short together. Use properly sized insulated conductors, secure crimped or bolted power connections, and provide strain relief so vibration cannot pull on the BMS terminals or wiring. Mount the BMS where it is protected from conductive debris, mechanical pressure and excessive heat. After wiring, commission the pack first with a controlled load and monitor voltage behavior and temperature before applying the full operating current.
