DALY BMS LFP 8S 30A

DALY BMS LFP 8S 30A

The DALY BMS LFP 8S 30A is a 8S 30A lithium iron phosphate (LiFePO4 / LFP) Battery Management System designed for 25.6V nominal battery packs that need dedicated electrical protection. It combines cell-group voltage supervision with hardware power-path control to support dependable charging and discharging in backup power, e-mobility, energy-storage, robotics and custom battery-pack applications.

This 8S LiFePO4 BMS is built around 8 cell groups connected in series, giving approximately 25.6V nominal pack voltage. The 30A designation identifies the product current class and positions the board for battery systems with corresponding charge/discharge requirements. As a hardware BMS, the board sits directly in the battery protection path, monitors the series cell groups and controls the charge/discharge circuit when electrical limits are reached. The result is a clear 8S / 30A configuration that is easy to integrate into production packs, service replacements, prototype builds and OEM battery assemblies.

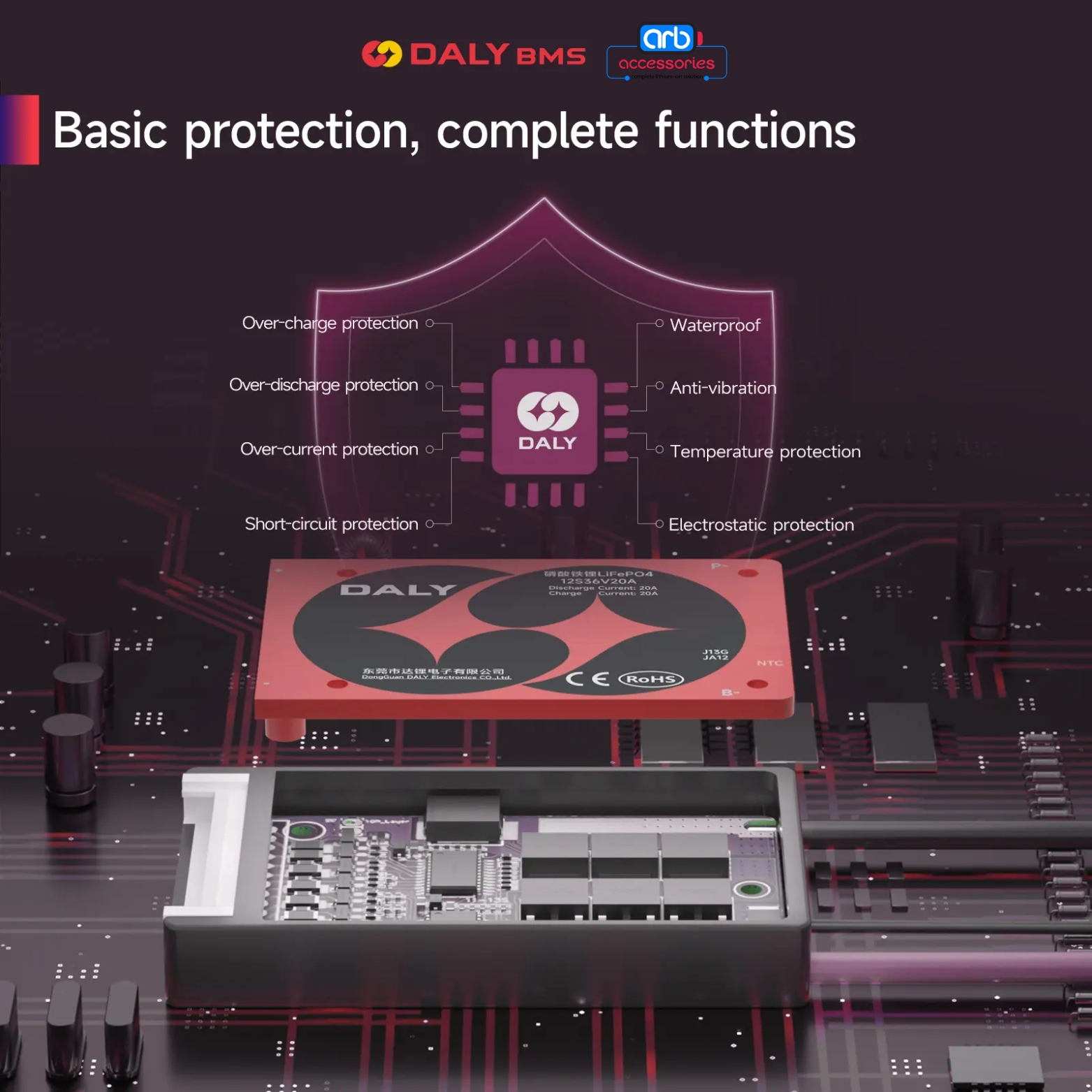

DALY hardware BMS products use dedicated cell-monitoring circuitry and MOSFET power switching across LiFePO4 battery platforms, a widely used architecture for EV, solar, inverter and backup-power battery packs. Core protection functions include overcharge protection, over-discharge protection, overcurrent protection and short-circuit protection, helping the BMS supervise the cell stack and control the battery power path during abnormal electrical conditions. The 8S architecture supports cell-group voltage supervision across the complete series string, while the compact hardware format keeps the protection electronics close to the battery interconnects. This is especially useful in battery enclosures where efficient space use, short current paths, organized sense wiring and serviceable construction are important. For the 30A product class, the BMS forms part of the complete electrical protection system together with the battery cells, pack fuse, conductors, busbars or nickel interconnects, charger and connected load. The series-specific design makes the board a practical choice for professional battery assemblers who want a dedicated LiFePO4 protection board instead of a communication-heavy universal controller.

The DALY BMS LFP 8S 30A is intended for 8S LiFePO4 battery packs in the 30A product class. It can be integrated with cylindrical, pouch or prismatic cells when those cells are assembled into the corresponding 8-series battery architecture. The 25.6V nominal reference places the pack in the 24V-class market segment, making the product relevant to common searches for a 8S 30A LiFePO4 BMS, 24V-class lithium battery management system, hardware BMS and lithium battery protection board in India. Its defined series/current format supports new battery builds, replacement BMS projects, prototype packs and OEM assemblies while keeping the product identity straightforward for purchasing and production teams.

Applications

• 25.6V nominal LiFePO4 battery packs for solar, backup and portable power systems

• Electric bicycles, scooters and light e-mobility battery assemblies

• UPS, telecom backup and off-grid energy-storage modules

• Robotics, AGV and industrial DC equipment battery packs

• Custom OEM lithium battery packs requiring series-specific hardware protection

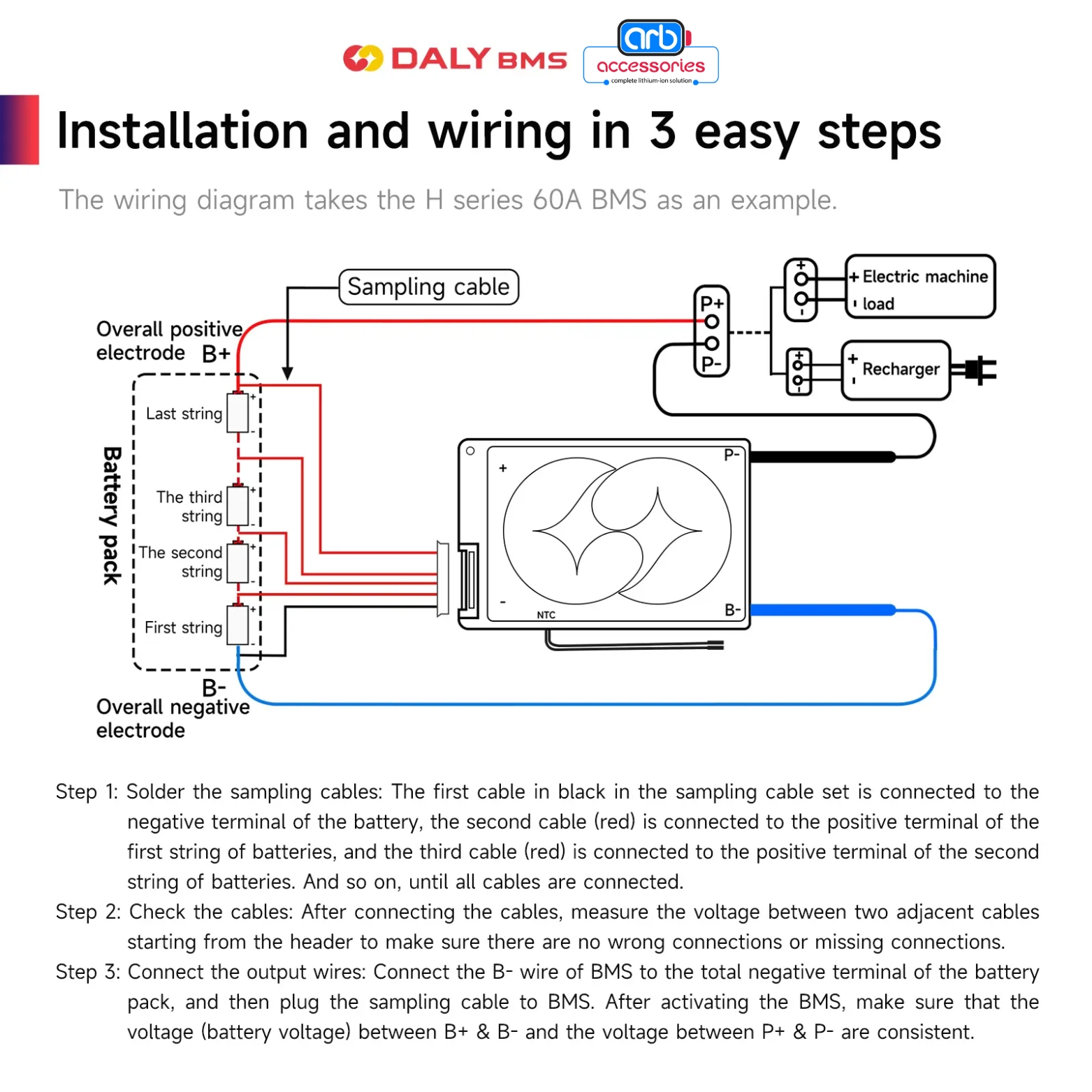

Installation Guide

For professional battery-pack assembly, install the BMS according to the terminal markings and wiring diagram supplied for the board. Connect battery negative and the cell-sense points in sequence, then complete the pack-output and charging connections using the marked B-, P- and C- terminals or the common/two-port arrangement provided on the variant. Use appropriately sized conductors, nickel or busbar interconnects, secure insulation and a correctly rated pack fuse. After assembly, commission the battery with a compatible LiFePO4 charger and a controlled load so the complete pack can be observed under normal charge and discharge operation.
