DALY BMS LFP 19S 150A

DALY BMS LFP 19S 150A

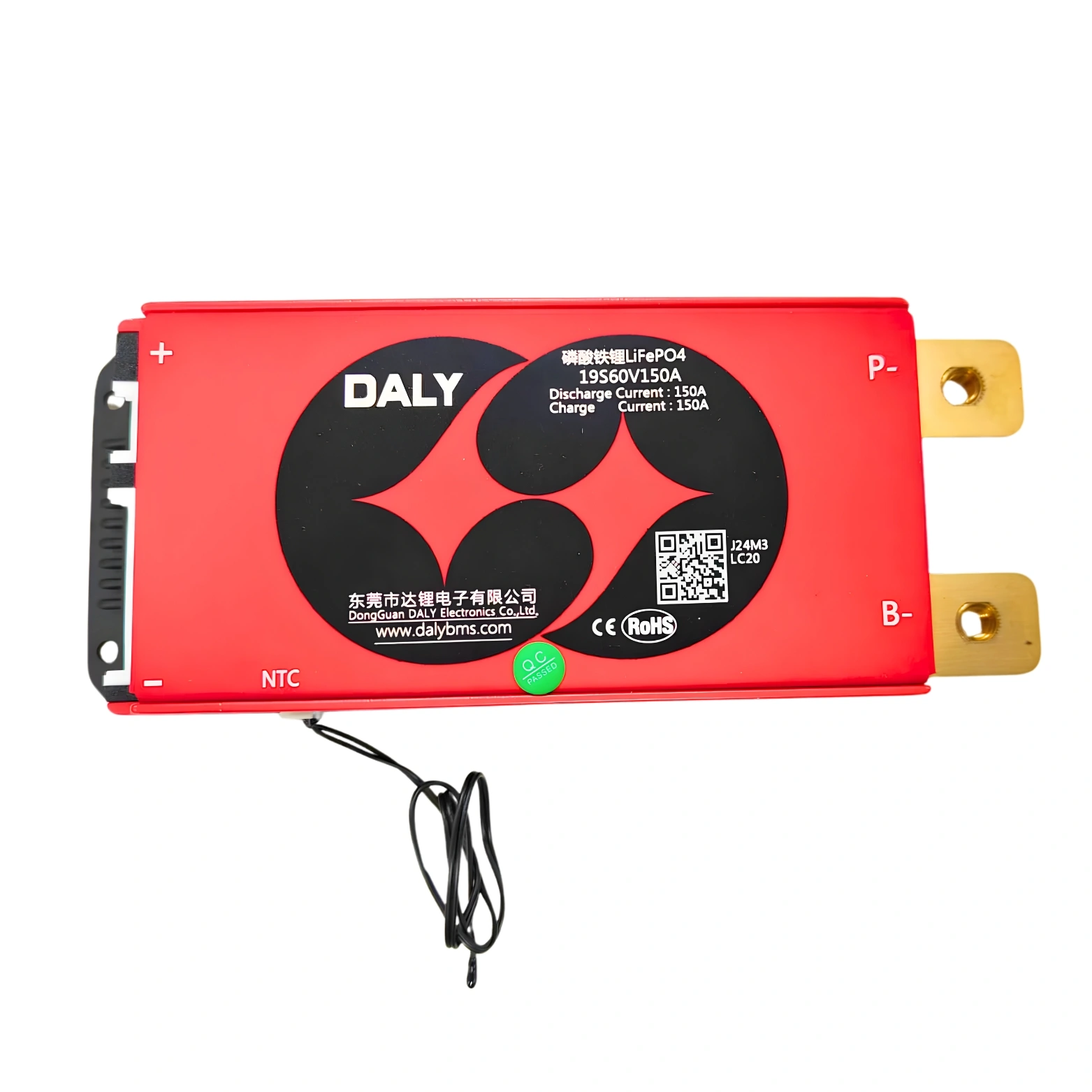

The DALY BMS LFP 19S 150A is a 19S LiFePO4 (LFP) battery management system in the 150A current class, developed for lithium battery packs where cell protection, current control and pack-level safety are central to system reliability. For buyers researching DALY 19S 150A LiFePO4 BMS, 19S LFP BMS, 60.8V battery management system, 150A battery protection board, this product fits the common search intent around EV battery BMS, inverter battery protection, lithium battery management and high-current battery-pack control. A 19S LFP pack is commonly a 60.8V nominal battery architecture. The BMS is therefore most relevant when the battery chemistry, series count and operating current are already defined in the pack design.

A BMS sits between the cell stack and the external load/charger path. It monitors electrical conditions and disconnects or limits operation when the configured protection logic detects abnormal voltage, current or temperature conditions. Cell balancing helps control voltage drift between series groups, but it does not replace proper cell matching and pack assembly practice. In practical pack building, the BMS works as one part of a complete electrical system that also includes correctly matched cells, busbars or nickel links, cable, connectors, fusing, charger settings and enclosure insulation.

The key engineering parameters for this DALY BMS are the 19S configuration, LiFePO4 (LFP) chemistry and 150A current class. Series count determines how many cell groups the voltage-sense harness must supervise, while the current rating must be assessed against real continuous load, startup surge, cable resistance and thermal conditions inside the enclosure. At higher current levels, conductor cross-section, terminal quality, crimp or weld resistance and heat dissipation become increasingly important because even small connection losses can create localized heating. The charge/discharge wiring should follow the exact terminal layout supplied with the board.

The charger must use a voltage profile suitable for the selected chemistry and cell count. A charger intended for another lithium chemistry can push the pack outside the BMS operating window even when the nominal pack voltage appears similar. Motor controllers and inverters can also draw short surge currents, so size the system for the real duty cycle rather than the printed current number alone.

Select this BMS only after matching five items: LiFePO4 (LFP) chemistry, 19S series configuration, required continuous/peak current, charge-path requirement and physical/wiring compatibility. For replacement or new-build work, compare sense-wire order, main terminals, port design, controller or inverter demand, charger profile and cable size before installation.

High-current battery protection boards should also be mounted so the housing and cables are mechanically supported, protected from conductive debris and given appropriate space for heat to dissipate. Do not select a higher current BMS as a substitute for undersized wire, weak terminals or insufficient pack fusing; each part of the power path must be rated for the intended load.

Applications

• Electric vehicle and e-scooter battery packs.

• Solar inverter and off-grid lithium battery systems.

• Stationary energy-storage and backup battery packs.

• Battery repair, refurbishment and BMS replacement work.

• Custom lithium battery projects for OEM and workshop assembly.

Installation Guide

Isolate the battery pack from the charger and load before installation. Verify every series-group voltage with a suitable meter, confirm polarity, and connect the sense harness in the sequence specified for the BMS rather than guessing from wire colour. Secure the main current connections with low-resistance joints and provide strain relief so cable movement does not load the BMS terminals. Keep exposed conductors insulated from the enclosure and from adjacent busbars. After wiring, commission the pack with a controlled charge/discharge check and monitor voltage behaviour and temperature before applying the full intended load.
