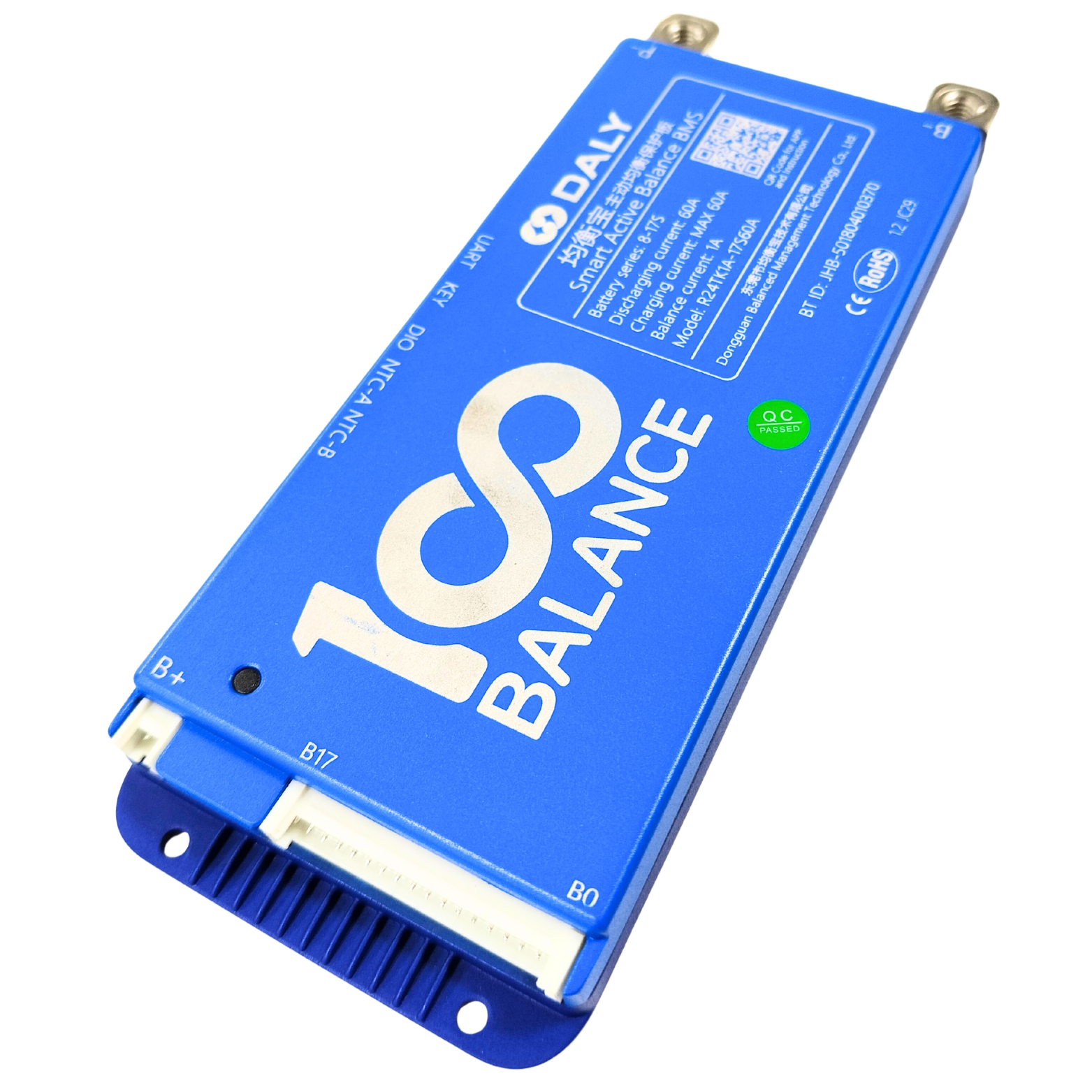

DALY 100BAL SMART BMS 8-17S 60A

The DALY BMS 8-17S 60A 100BALANCE (R24TK1A) is a cutting-edge Battery Management System engineered with 100% Smart Active Balancing technology to optimize lithium battery pack health and performance. Designed for 8S to 17S (28V–61.2V nominal) Li-ion/LiFePO4 battery packs, this BMS delivers a robust 60A current handling capacity and smart features suited for professional and industrial battery applications.

Key Features

### 100% Active Balancing

• Redistributes energy between cells in real time
• Equalizes voltage for better charge retention and longer cycle life
• Minimizes heat and imbalance within the battery pack

### Intelligent Data Communication

Equipped with UART and CAN communication, this BMS interfaces seamlessly with battery monitoring displays, microcontrollers, or diagnostic tools, offering:

• Cell voltage monitoring
• Temperature feedback
• Charge/discharge cycle tracking

### 60A Power Handling

Perfect for mid to high current applications, the 60A discharge and charge rating makes it ideal for:

• Solar power systems
• Electric scooters and bikes
• Mobile and off-grid energy systems
• Robotics and industrial tools

### Multi-Stage Safety Protection

• Overcharge protection
• Over-discharge protection
• Short circuit prevention
• Overcurrent control
• High/Low temperature alerts

Applications

• Solar Panel Battery Storage
• Electric Two-Wheelers
• Portable Inverter Banks
• Robotics and Automation
• Backup Energy Storage Units

Due to the battery capacity, internal resistance, voltage and other parameter values are not completely consistent, this difference causes the battery with the minimum capacity to be easily overcharged and discharged during charging, and the smallest battery capacity becomes smaller after damage, entering a vicious cycle. The performance of single cell directly affects the charge and discharge characteristics of the whole battery and the deduction of battery capacity. BMS lack of balance function is only a data collector, which is hardly a management system. The active equalization function can realize the maximum continuous 1A equalization current. Transferthe high-energy single cell to the low-energy cell, or use the whole group of energy to supplement the lowest single cell. During the implementation process, the energy is redistributed through the energy storage link, so as to ensure the battery consistency to the greatest extent, improve the battery mileage and extend the battery life.
