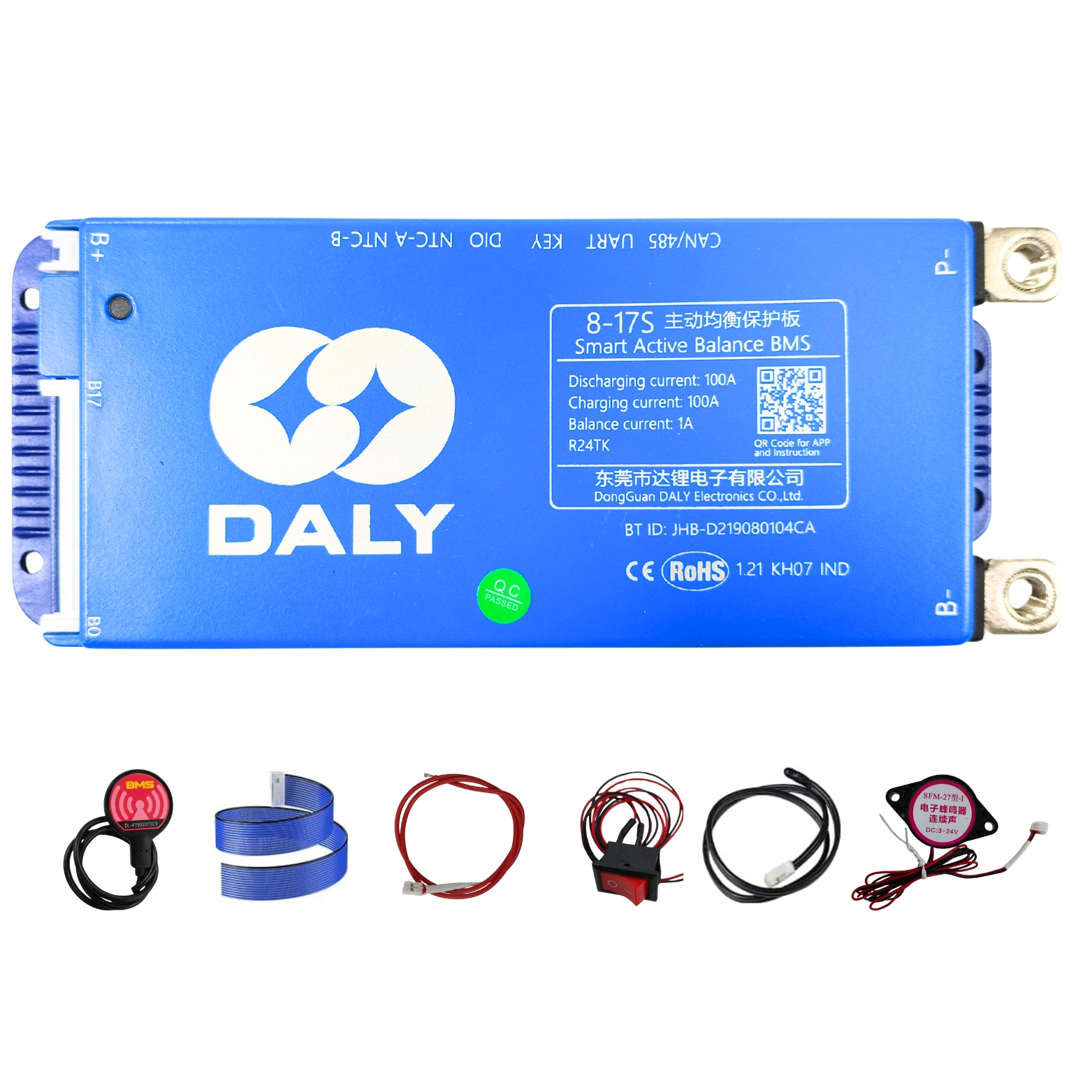

DALY 100BAL SMART BMS 8-17S 300A

DALY 100BAL SMART BMS 8-17S 300A

The DALY 100BAL SMART BMS 8-17S 300A is a DALY smart battery-management system intended for 8-17S battery packs in the stated 300A current class. This higher-current 100BAL family variant combines smart monitoring with active balancing. It is relevant to battery-pack assembly, EV and mobility service, inverter and energy-storage integration, industrial battery systems and replacement work where the electrical architecture must be matched carefully to the cells, charger and load. The active-balance architecture is intended to transfer energy between cell groups to reduce voltage spread during pack operation.

A BMS supervises cell-group voltage, current and temperature-related conditions and manages the charge/discharge path or external switching devices when operating limits are exceeded. It is one part of the battery safety system; it does not replace correct cell matching, fuse protection, conductor sizing, insulation, mechanical restraint or a charger configured for the battery chemistry. A high current label should never be treated as permission to run undersized cables, weak busbars or loose terminals.

Current market/manual material for the 300A 8-17S 100BAL variant identifies a 300A continuous-current class, built-in 1A active balancing and RS485/CAN/Bluetooth communication capability. Because 300A versions sit outside some earlier 40-200A tables, the exact rating plate and supplied manual should be treated as the final authority for this stock variant. The stated current value should be checked against the real continuous load, startup or surge current, charging current, conductor cross-section, connector resistance and thermal conditions of the complete battery system.

Sense or sampling leads must be connected in the correct sequence so the controller reads every series group accurately. Before inserting the sampling connector, measure adjacent cell-group voltages and total pack voltage with a suitable meter. Confirm that polarity progresses correctly from pack negative toward pack positive. If the model supports software, Bluetooth, CAN, RS485, UART or external display functions, confirm the exact communication ports, firmware and supplied accessories on the physical stock unit before integration. Communication availability and connector pinouts can differ between variants that share a similar current or series description.

Choose this DALY unit by matching the exact series architecture (8-17S), battery chemistry supported by the supplied variant, continuous and peak current demand, charge/discharge architecture, harness pinout, mounting space and any required communication interface. For replacement work, compare the original model code and connector orientation rather than selecting only by current. The charger, inverter, motor controller or DC load must also remain within the verified voltage and current envelope of the battery and BMS. Where external contactors or pre-charge circuitry are used, follow the corresponding system wiring diagram rather than adapting a low-voltage MOSFET-style installation method.

Applications

• 8-17S lithium battery pack assembly, service and replacement where the exact variant is compatible.

• Electric scooter, e-bike, light-EV or industrial mobility battery systems with matching voltage and current requirements.

• Solar, UPS, inverter and energy-storage battery modules using the supported chemistry.

• Industrial, telecom, robotics and portable-power battery systems requiring controlled battery management.

• Battery workshops and OEM projects that need a 300A-class DALY BMS solution.

Installation Guide

Isolate the battery pack from the charger and load before installation. Verify every cell-group voltage, total pack voltage and polarity before connecting the sense harness. Connect main power wiring with correctly sized insulated conductors and secure crimped or bolted joints so vibration cannot loosen them. Keep tools, loose nickel and exposed wire ends away from live cell terminals. Mount the BMS where it is protected from conductive debris, mechanical pressure and excessive heat. After wiring, commission the pack with a controlled charge and moderate load first, monitor cell readings and temperature, and only then progress toward the intended operating current.
