CONNECTOR TERMINAL 125A BLACK

ESS Connector Terminal 125A Black

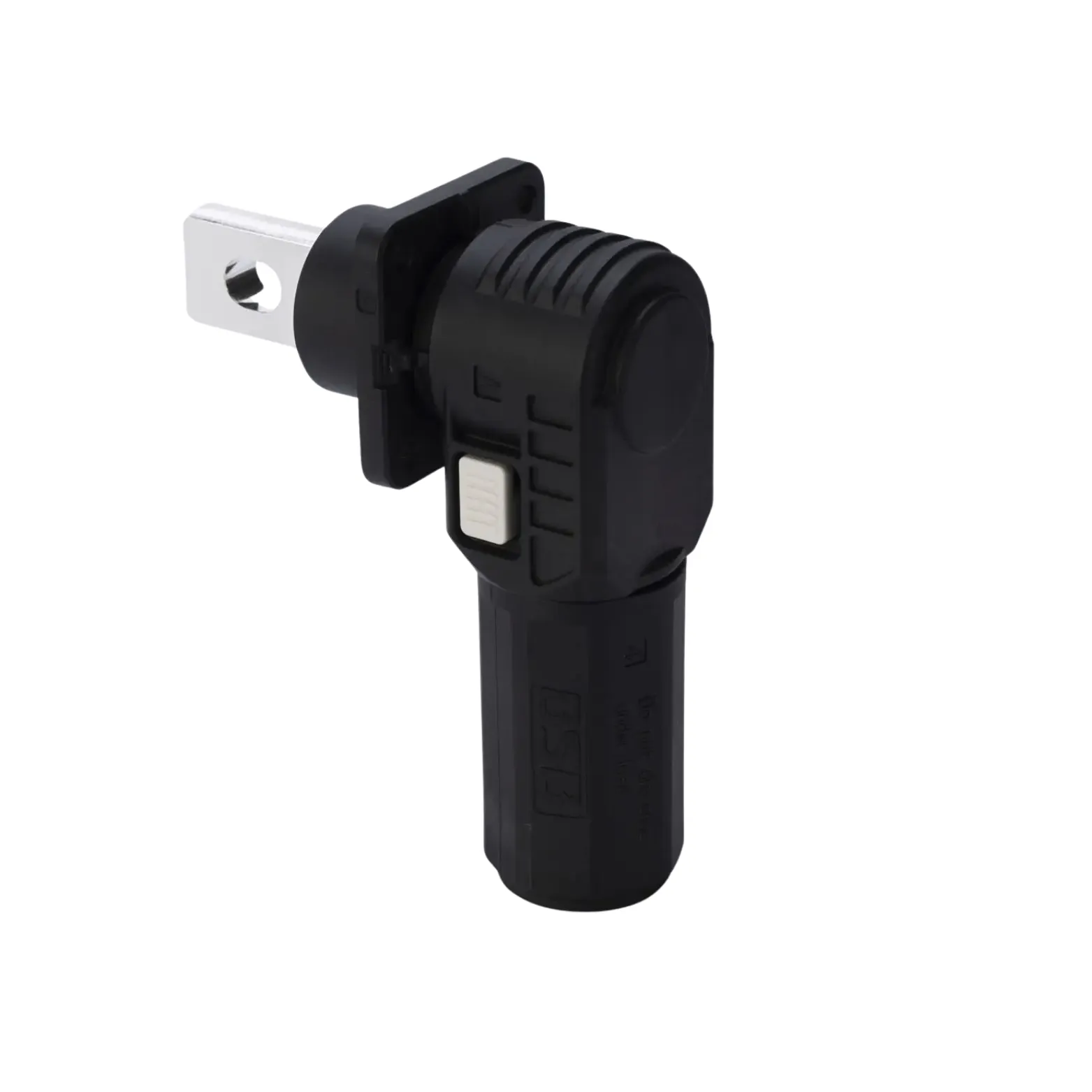

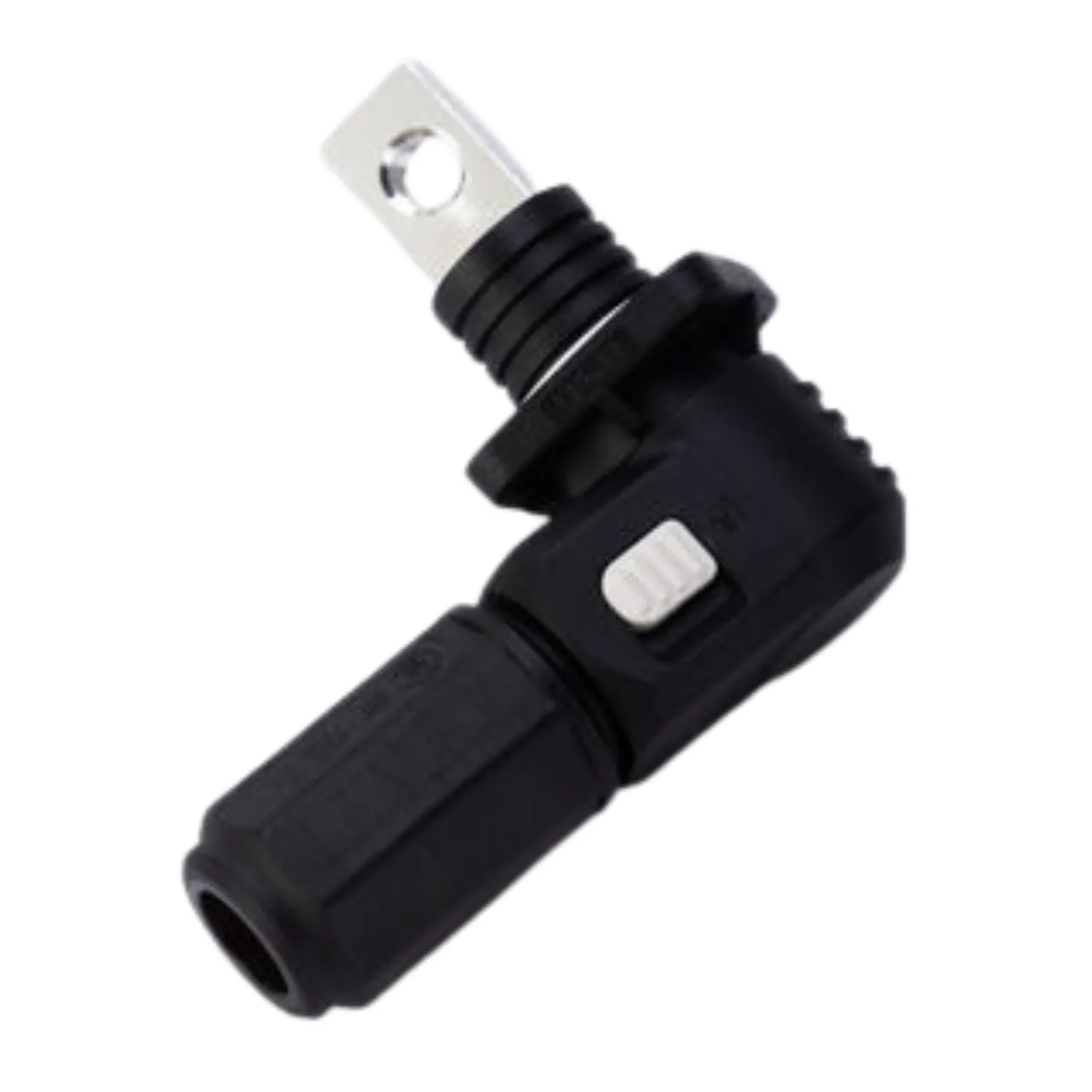

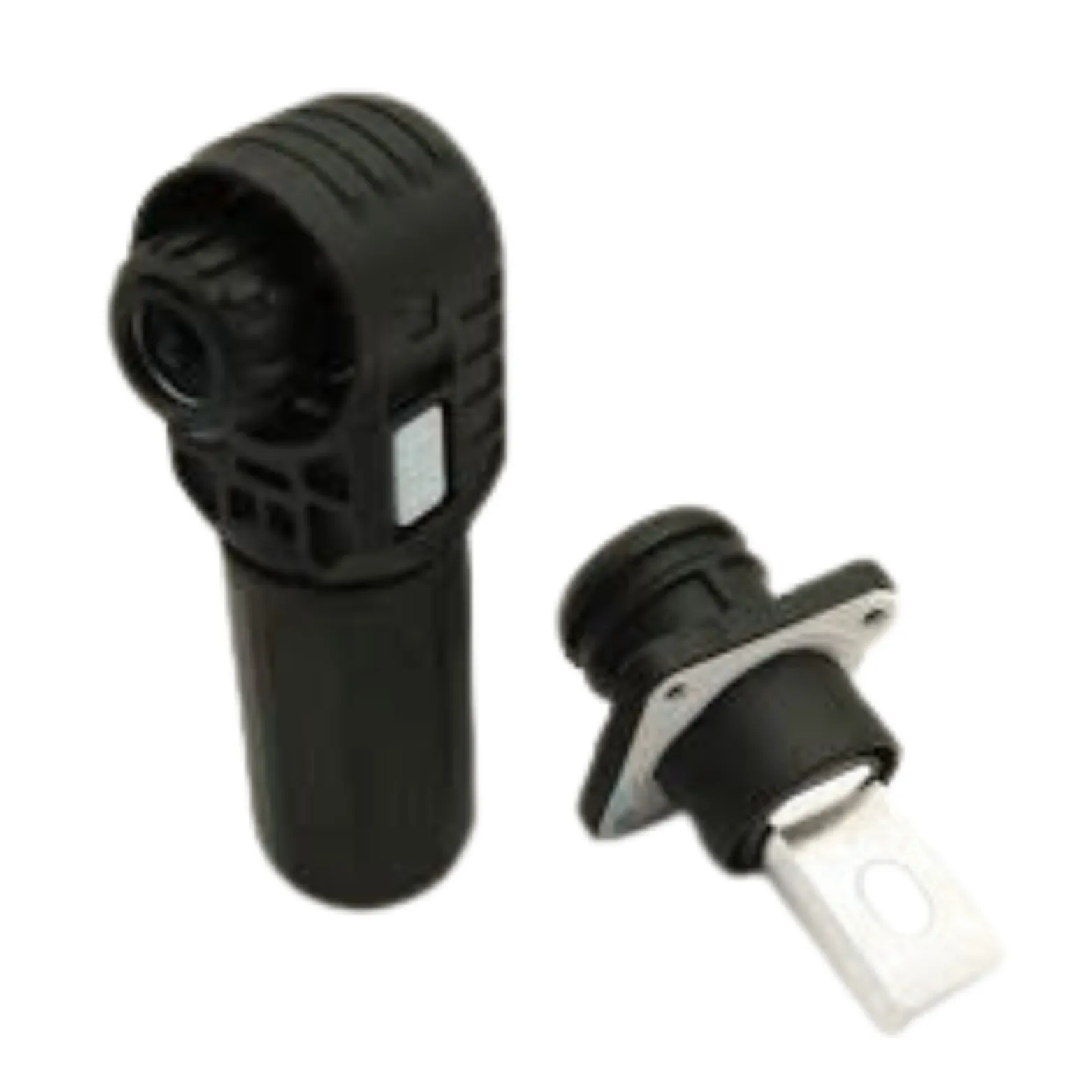

The ESS Connector Terminal 125A Black is a 125A black connector terminal for removable high-current battery connection in energy-storage and battery systems. It creates a defined power-transfer point between battery conductors, inverter cabling and the surrounding cabinet architecture while providing an insulated housing for organised service access.

High-current ESS connectors sit between flexible cabling and the fixed electrical architecture of the battery cabinet. The defining selection rule is the mating connector geometry, current class, conductor arrangement and enclosure layout. A current label describes the connector family; it does not turn smaller cable, weak crimps or undersized protection hardware into a system of the same rating.

Electrical performance is dominated by contact quality. Flat mating surfaces, properly crimped cable lugs or contacts and stable mechanical engagement keep resistance low and help prevent local heating. The housing separates the conductive connection from the surrounding panel and gives the installer a defined mounting or mating point. Cable bend radius and strain relief should be planned so the joint carries current rather than cable weight.

High-current DC joints deserve the same attention as cells and busbars because a small resistance at a connector can create significant heat. Surface contamination, loose hardware, incomplete engagement and repeated thermal cycling all increase resistance. The practical engineering measure is temperature rise under the real duty cycle together with inspection for discolouration, softened insulation or movement. A sound connector cannot compensate for poor cable sizing upstream.

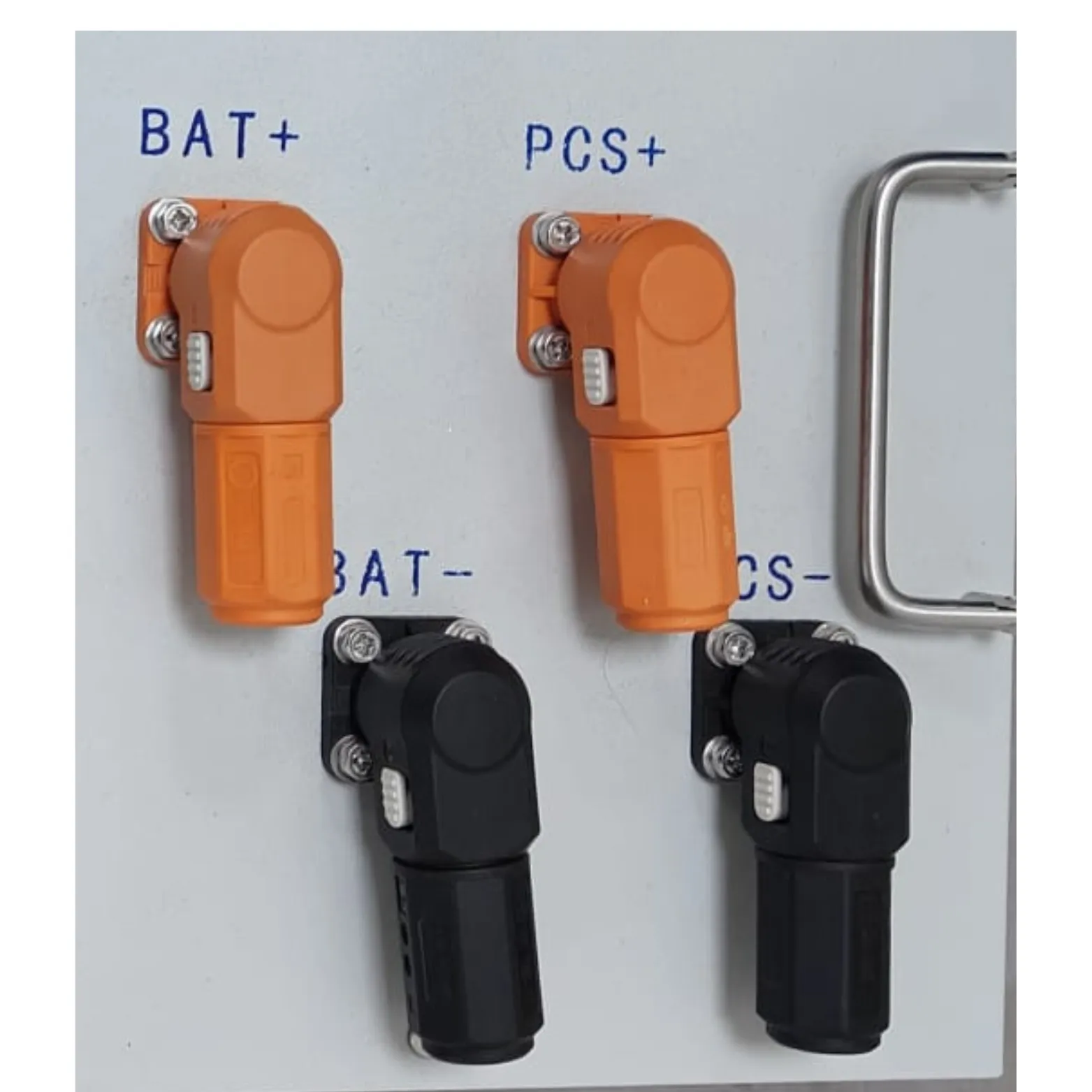

Colour and housing form help technicians identify circuits quickly, but polarity comes from the engineered wiring. Use consistent positive and negative conventions across the battery, breaker, inverter and service points. Keep conductors supported close to the connection so vibration and cable weight are not transferred into the joint. This creates a serviceable high-current interface that remains easy to trace inside an ESS cabinet.

Applications

• Lithium battery energy-storage cabinets using high-current power terminals.

• Solar and hybrid-inverter battery systems with fixed positive and negative connection points.

• UPS and backup-power installations requiring robust battery-side DC terminations.

• Electric-vehicle and industrial battery assemblies using the same current class.

• Telecom and commercial DC power cabinets with serviceable high-current interfaces.

• Custom battery-pack and inverter projects built around the matching connector geometry.

Installation Guide

Isolate the battery and inverter before fitting the connector or terminal. Prepare the mounting surface and cable routing, use terminations matched to the conductor and connection hardware, and protect exposed battery points throughout assembly. Support the cable close to the connection so the joint is not used as a mechanical anchor.

Commission the circuit with controlled energisation. Establish polarity and pack voltage before the final live connection, then apply load progressively while observing the connector, cable and protective devices. Investigate unexpected temperature rise, odour, discolouration or voltage drop rather than continuing operation with a stressed connection.

Record connector family, current class, cable size and fastening or mating arrangement with the cabinet build. Re-inspect joints after initial thermal cycling and during maintenance, especially in systems exposed to vibration or repeated service access. Changes to cable cross-section, inverter power or enclosure layout require renewed review of the complete current path.
