CONNECTOR SOCKET L-TYPE MALE

CONNECTOR SOCKET L-TYPE MALE

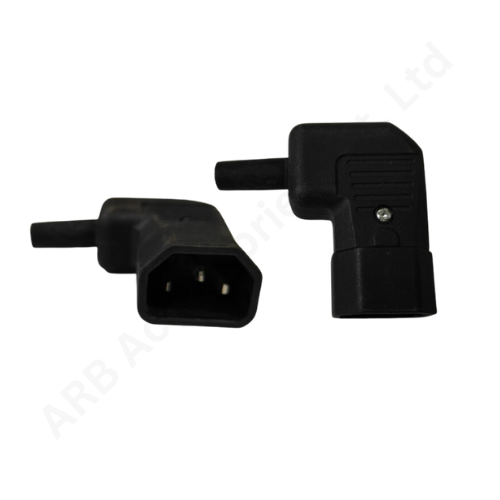

The CONNECTOR SOCKET L-TYPE MALE is an L-shaped male electrical connector socket intended for compact power or signal connections where an angled cable or mating direction is useful. ARB-linked supplier information describes the item as an L-type male socket and lists a three-pin configuration. It is relevant to battery equipment, chargers, controllers and electrical assemblies only when the corresponding female connector and pin assignment match the system.

An angled connector can help route wiring in enclosures where a straight plug would require additional depth. The L-shaped form can reduce cable bend immediately behind the connector, but the mechanical advantage depends on how the socket is mounted and how the mating cable is supported. Because connector families often share similar housings, installers should compare keying, pin spacing and latch features rather than relying only on the general L-type description.

Technical Details

The seller listing identifies three pins, but the exact electrical purpose of those pins is application-specific and should not be assumed. They may carry power, signal or a combination depending on the equipment design. Current and voltage capability depend on the actual contact size, material, wire termination and mating connector. These ratings should be confirmed from the physical stock or a manufacturer drawing before the connector is used in a high-current or safety-critical circuit.

Low contact resistance requires clean, correctly aligned contacts and secure mating pressure. A connector that is partially engaged or repeatedly flexed by cable weight can develop heat and intermittent faults. The L-shaped body should therefore be mounted or routed so the cable is supported and the mating connector can be inserted and removed without twisting the pins.

Match this L-type male socket by the corresponding female connector, pin count, keying, panel or cable-mount arrangement, cable exit direction and available enclosure space. Confirm the circuit pinout before energizing the assembly. For replacement work, photograph or label the original wiring and verify continuity pin-by-pin rather than transferring conductors based only on position or color.

Applications

• Battery charger, controller and equipment connector replacement.

• Compact EV and battery-box wiring assemblies.

• Power or signal harnesses where a matching three-pin L-type interface is used.

• Test benches and service harnesses requiring an angled connector body.

• General low-voltage equipment integration with the verified mating socket.

Installation Guide

Isolate the power source before wiring the connector. Identify every pin and conductor, make secure crimped or soldered terminations as appropriate to the physical part, and insulate exposed joints. Support the cable so it does not pull on the pins and verify that the connector seats fully with its mating half. Use a meter to confirm continuity and polarity before applying power, then check the connector for heating or intermittent contact during initial operation.

Why Choose ARB Accessories?

ARB Accessories focuses on lithium-battery, EV, energy-storage and battery-pack assembly components. The catalog brings together BMS boards, connectors, insulation materials, battery wiring, terminals, fuses, enclosures, testing equipment and assembly tools. For battery builders, repair workshops and OEM buyers, sourcing related components from one specialist catalog can make specification matching and procurement easier. Final suitability should still be checked against the exact battery design, equipment model and electrical requirements before installation.
