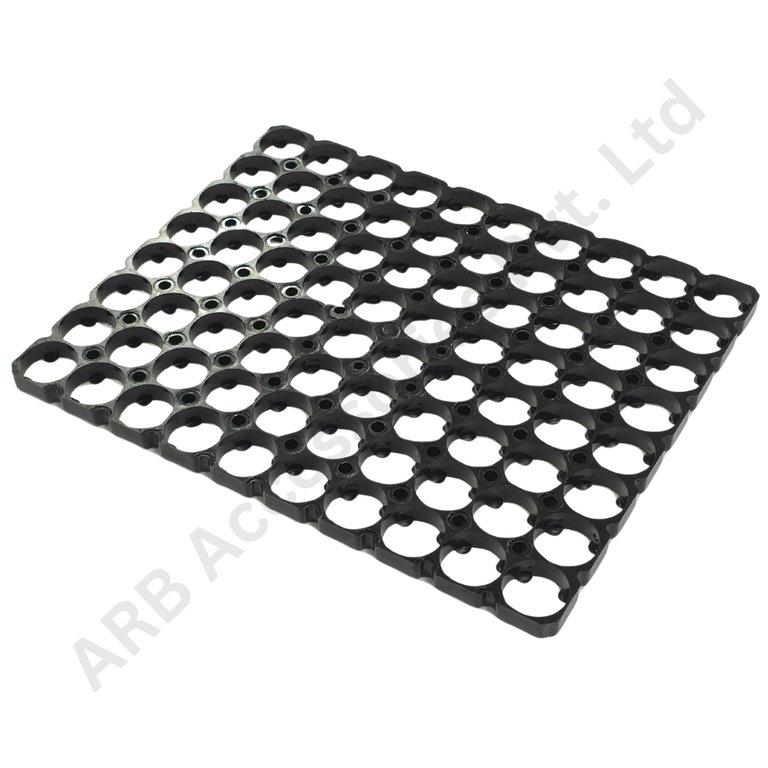

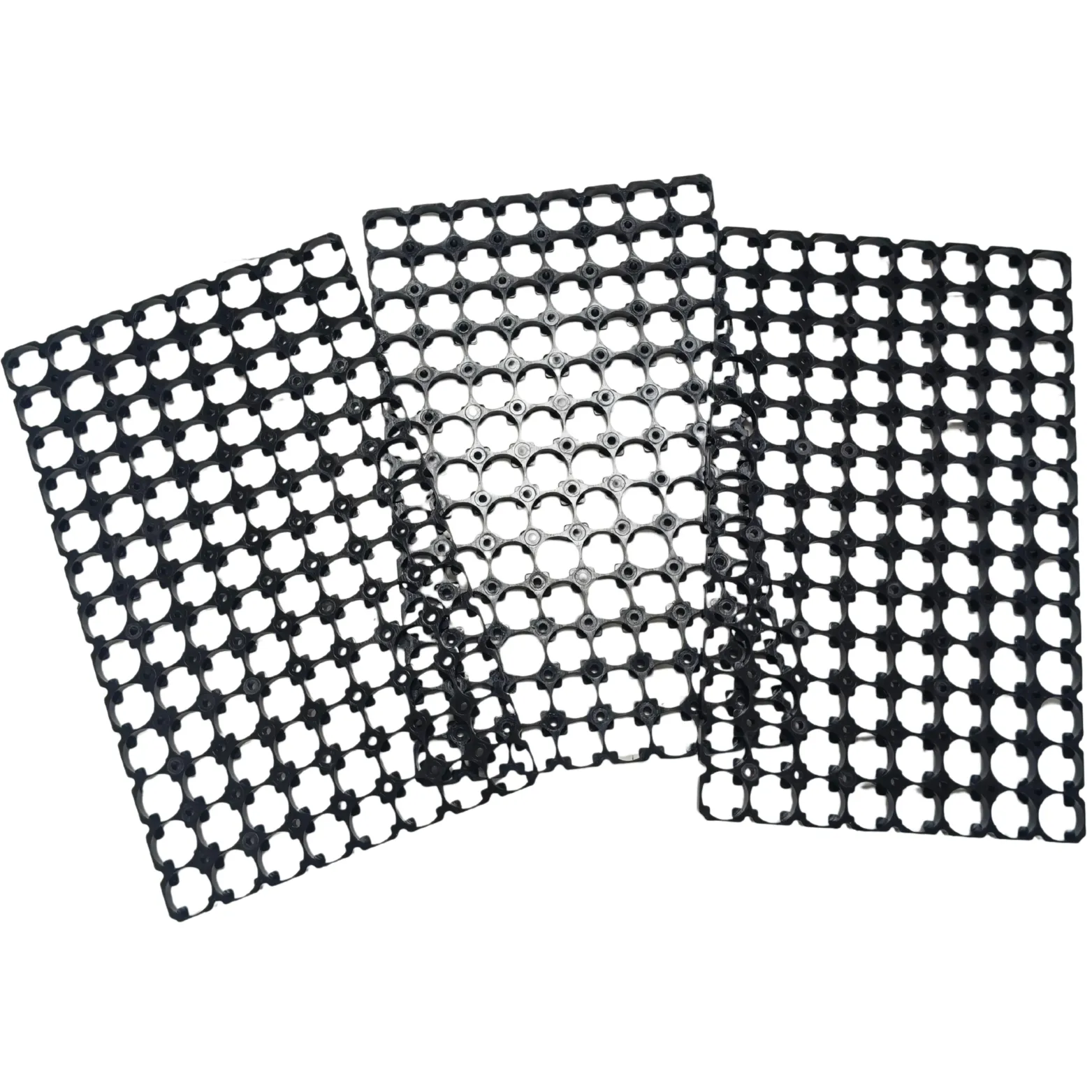

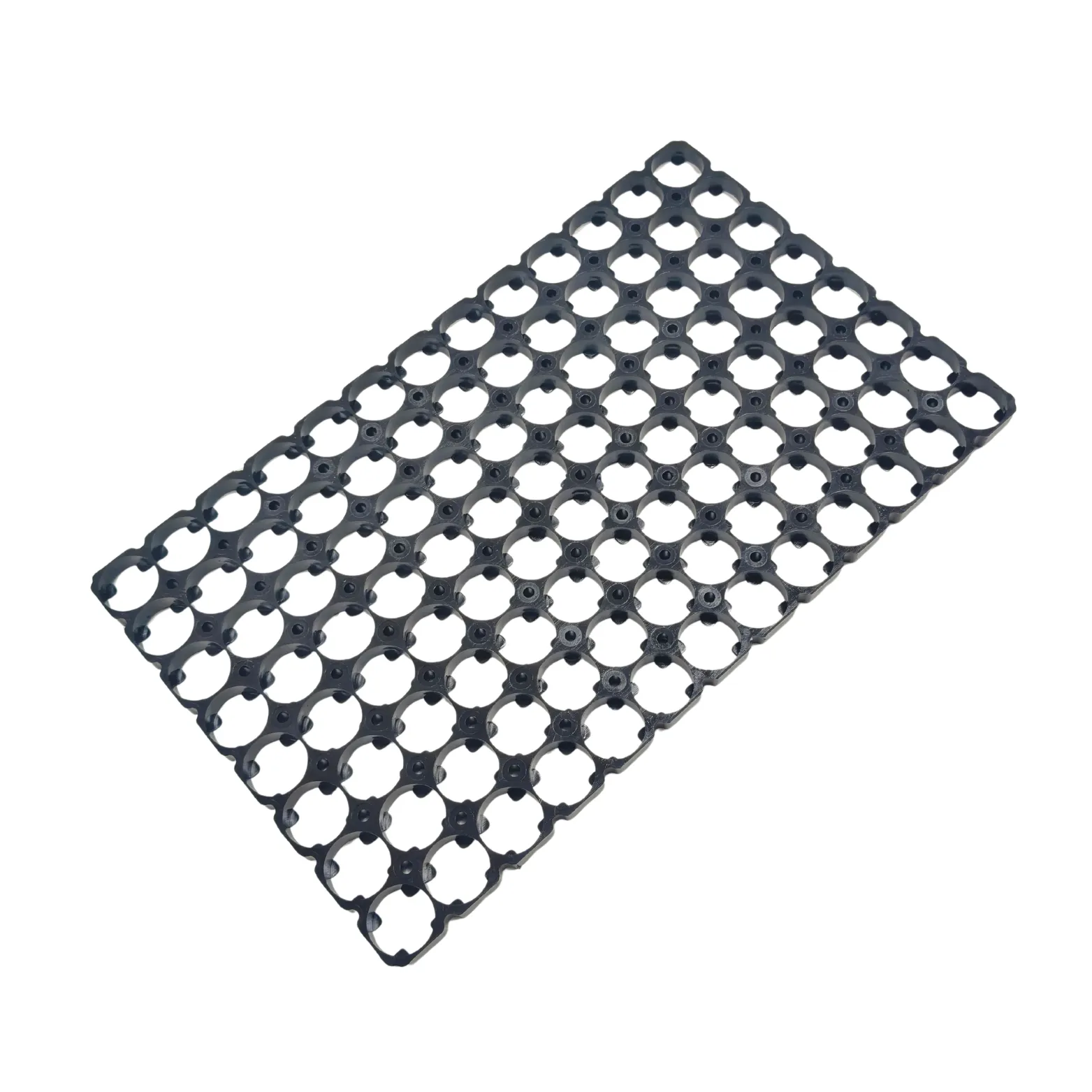

CELL HOLDER 21700 (8X13)

CELL HOLDER 21700 (8X13)

The CELL HOLDER 21700 (8X13) is a 21700 battery cell holder designed to organize cylindrical lithium cells in a repeatable 8×13 arrangement during battery-pack construction. Buyers searching for 21700 cell holder, lithium battery cell spacer, battery pack holder, cylindrical cell bracket or 8×13 battery holder can use this component to create consistent spacing and mechanical alignment before interconnection, insulation and enclosure assembly.

Cell holders are mechanical pack-building components rather than electrical protection devices. Their value is in positioning cells, maintaining separation between neighboring cylindrical cans and helping the builder create a stable pack geometry for welding, busbar planning, sensor placement and enclosure fitment. The holder must be matched to the exact cylindrical-cell format and the planned series-parallel layout; forcing a different cell diameter into the part can damage the cell sleeve, distort the array or create inconsistent spacing.

In a cylindrical lithium battery pack, mechanical layout influences the quality and repeatability of the electrical build. Consistent spacing gives the assembler predictable locations for nickel strip or busbars, insulation barriers and temperature sensors while reducing random cell movement during handling. A holder can also help keep metal cans from rubbing directly against each other, but it does not replace cell-level insulation rings, fish paper, heat barriers or structural support required by the pack design.

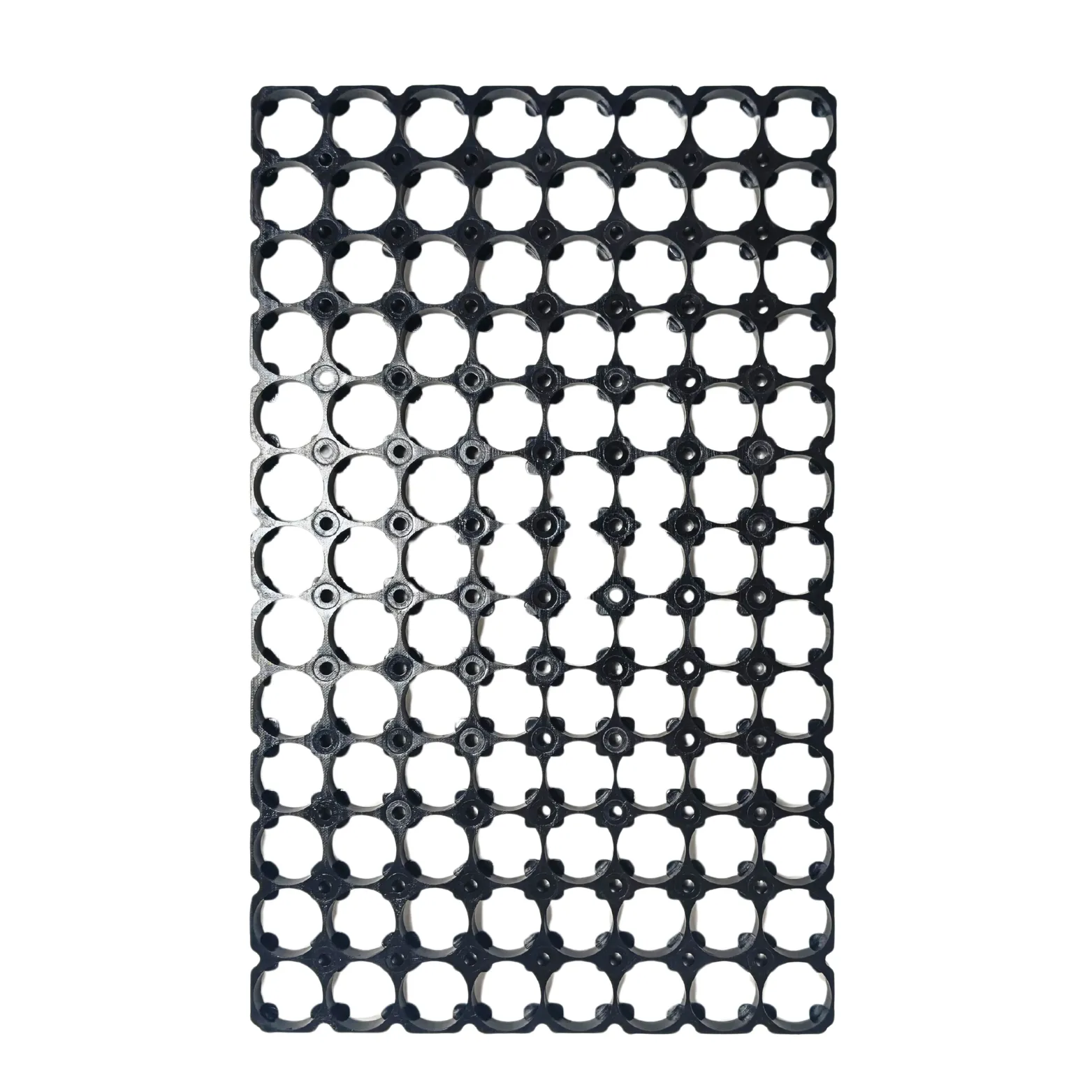

The 8×13 pattern describes the intended holder arrangement and should be checked against the required total cell count and enclosure footprint. Builders should confirm whether the supplied part is used as a top/bottom pair, a single frame, an interlocking module or another holder style before production assembly. Final pack dimensions depend on cell diameter, holder pitch, sidewalls and interlocking features, so enclosure clearance should be checked using the physical part rather than only multiplying nominal cell dimensions.

Choose this holder by matching the 21700 cell format, required 8×13 arrangement, pack geometry, holder pitch and available enclosure space. For repair work, compare the original holder shape and cell spacing rather than relying on the cell count alone. If the pack uses thick busbars, multiple nickel layers, thermal pads or sensor wiring, make sure the layout leaves enough routing space without pinching components or placing pressure on cell sleeves.

Applications

• 21700 cylindrical lithium-ion or compatible lithium battery pack assembly.

• EV, e-bike and e-scooter battery modules using the matching cell format.

• Solar, inverter and energy-storage battery modules built from cylindrical cells.

• Prototype cell arrays for welding trials, capacity testing and pack-layout development.

• Battery repair and rebuilding where a replacement 21700 holder is required.

Installation Guide

Inspect every cell wrapper before inserting cells into the holder and replace or re-insulate any cell with damaged sleeving before pack assembly. Confirm the positive and negative orientation of each cell before welding or fitting busbars. Do not force cells into an undersized opening or use a holder that cuts or deforms the wrapper. Keep loose nickel, tools and conductive debris away from exposed terminals to prevent short circuits. After assembling the array, verify alignment, pack dimensions and interconnect routing before spot welding.
