CELL HOLDER 18650 (9X8) HEXA

CELL HOLDER 18650 (9X8) HEXA

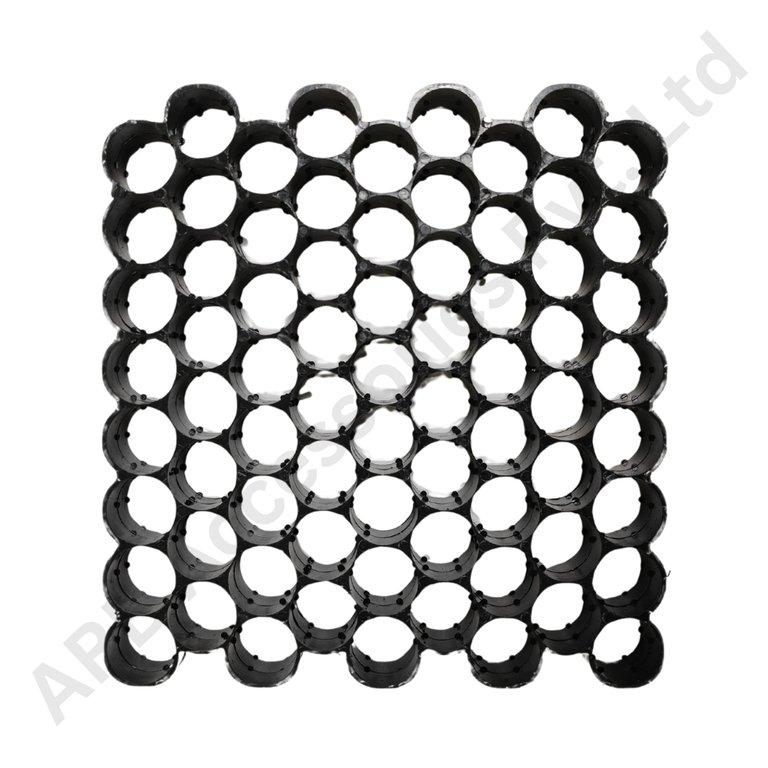

The CELL HOLDER 18650 (9X8) HEXA is a molded battery-pack spacer designed to organize 18650 cylindrical cells in a 9X8 array. Its function is mechanical: it keeps cells aligned, supports repeatable spacing and can simplify pack assembly before nickel-strip welding and enclosure installation. It is aimed at battery-pack builders, EV service workshops, system integrators and production teams that need a clearly specified component for repeatable assembly or maintenance.

The item should be selected as part of the complete electrical and mechanical system rather than in isolation. Battery equipment can experience high current, vibration, heat and repeated service cycles, so conductor sizing, insulation, mounting and compatible mating parts remain important even when the component itself has a straightforward headline specification.

Cell holders help reduce random movement and can create controlled spacing between cylindrical cells, but they do not provide electrical insulation by themselves at every possible contact point. Cell wraps, terminal insulation rings, fish-paper barriers and enclosure clearances remain part of the safety design. The most reliable installation is the one in which the full current path, insulation system and mechanical mounting are designed together. Avoid using a headline current, dimension or model number as a substitute for checking the actual part in hand.

For production use, maintain incoming inspection for dimensions, markings and supplied accessories. Where a component carries high current, check for low-resistance joints and abnormal heating during commissioning. Where the product is a consumable or mechanical part, verify consistency of size and material between batches before releasing it into mass production.

Confirm the actual cell diameter and the required 9X8 physical arrangement. Holders for 18650, 21700 and 26650 formats are not interchangeable. Also check whether the pack needs straight-grid or staggered/hexagonal geometry. If this is a replacement part, compare the original component side by side and confirm that contact geometry, mounting features and connection orientation match. If it is a new design, allow space for assembly tools, cable bend radius, insulation and future servicing rather than designing only to the nominal component dimensions.

Applications

• Lithium-ion and LiFePO4 battery-pack assembly where the component specification matches the design.

• Electric scooter, e-bike and light-EV production, repair and refurbishment workflows.

• Inverter, UPS, solar-storage and stationary battery systems using compatible DC hardware.

• Battery testing, prototyping and workshop projects requiring repeatable component selection.

• OEM and integrator projects where documentation, fitment and serviceability are controlled.

Installation Guide

Disconnect all energy sources before installation or replacement. Inspect the component for damage and confirm its rating against the project documentation. Use the correct tools and compatible mating hardware; do not force connectors, terminals or mechanical parts into a mismatched interface. After assembly, check polarity where applicable, secure all fasteners, protect exposed conductive areas and perform a controlled functional test. For current-carrying parts, monitor connection temperature during initial load testing and stop if unusual heating, odor, discoloration or voltage drop is observed.

Why Choose ARB Accessories?

ARB Accessories focuses on lithium-battery, EV and energy-storage components ranging from BMS boards and active balancers to cables, connectors, insulation, enclosures, test equipment and production machinery. A specialist catalog helps professional buyers source related components within one battery-building workflow. Final suitability should always be confirmed against the exact electrical design, battery chemistry, mechanical layout and safety requirements of the application.
