CELL HOLDER 18650 (1X1)

CELL HOLDER 18650 (1X1)

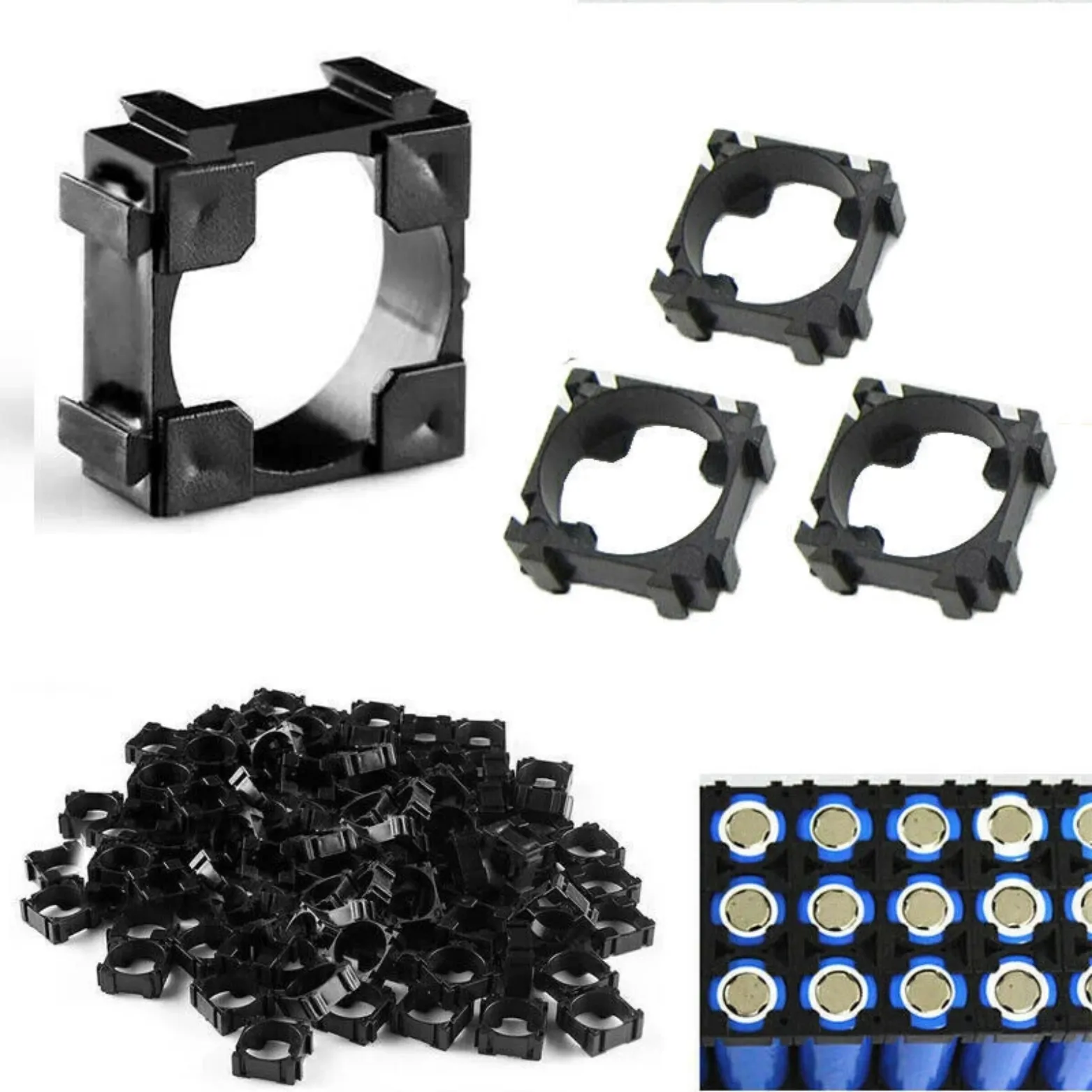

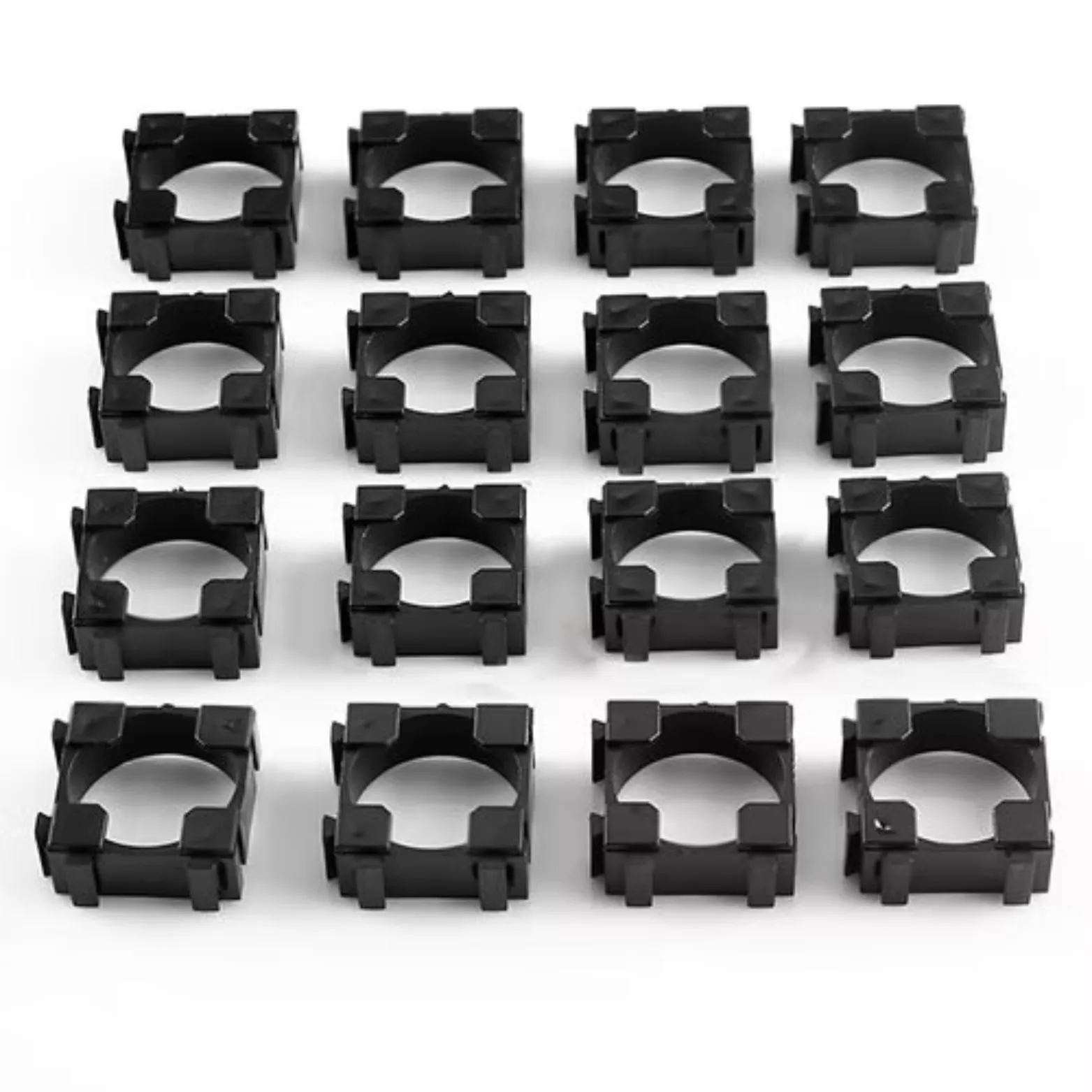

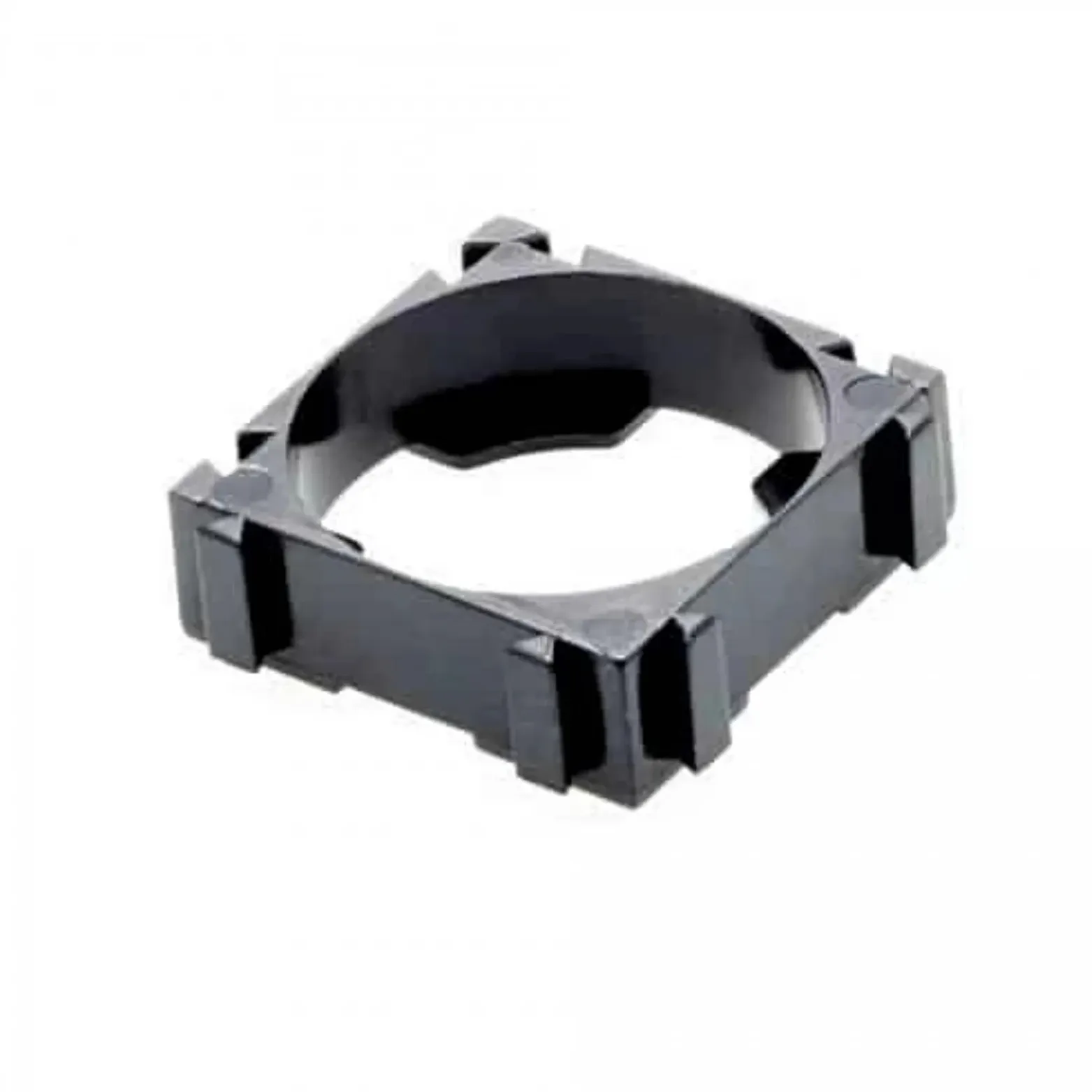

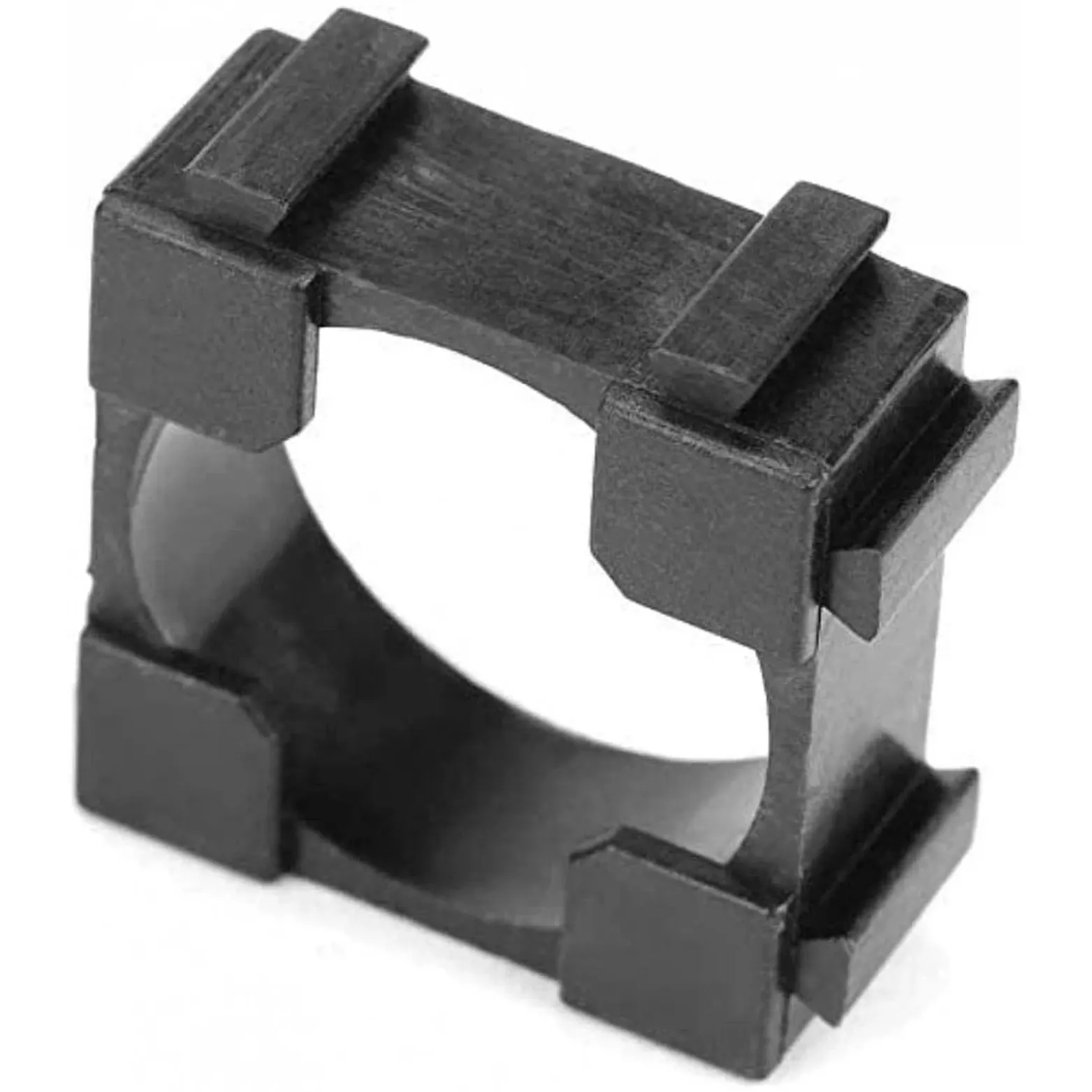

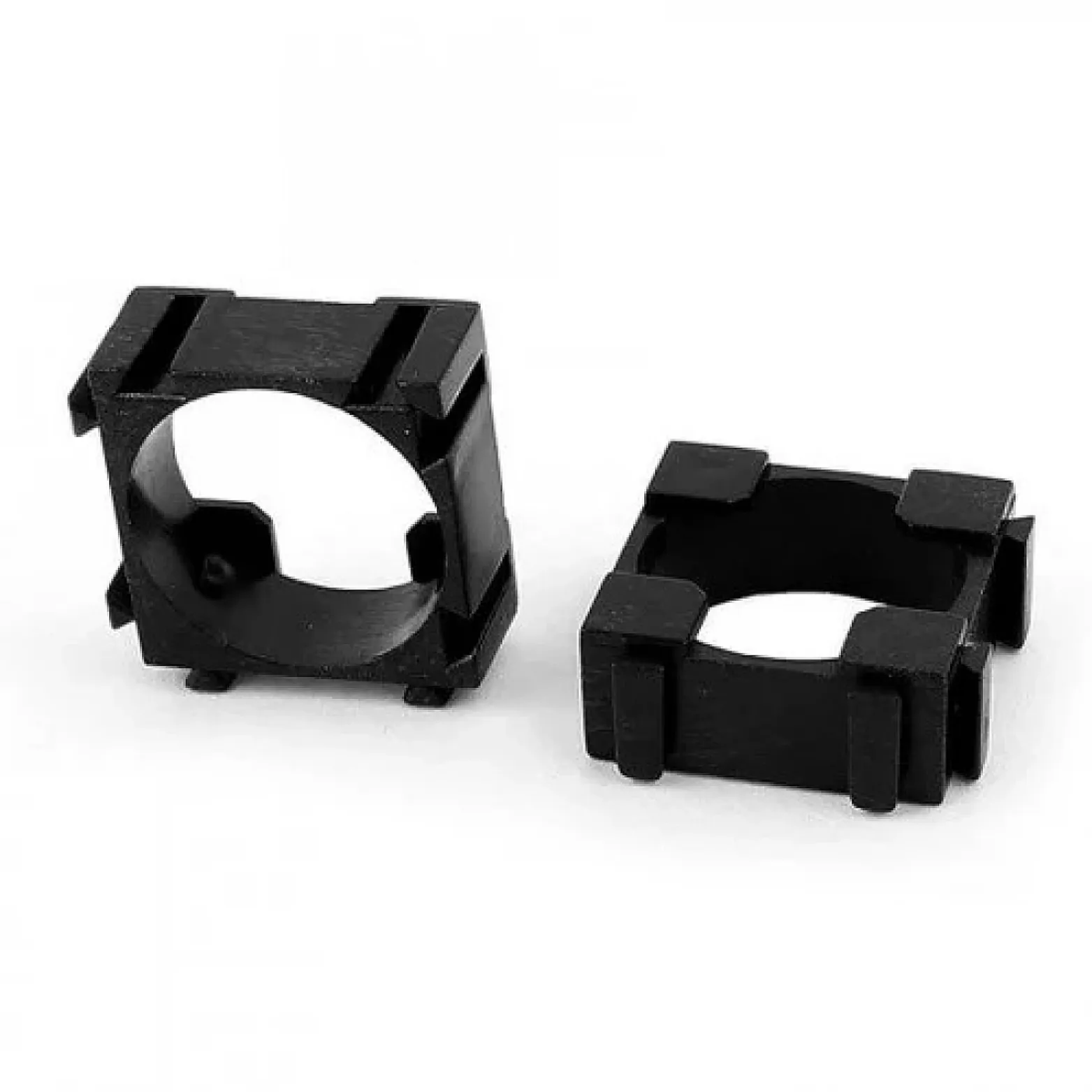

The CELL HOLDER 18650 (1X1) is a 18650-format lithium battery cell holder / spacer designed to organize cylindrical cells in a 1X1 grid layout. It helps maintain cell alignment, separation and a repeatable module shape before nickel-strip welding, BMS wiring, insulation and final enclosure assembly.

Battery packs built from cylindrical cells benefit from a defined mechanical pattern because every cell must remain correctly positioned while the electrical interconnects are added. This holder establishes the named 1X1 geometry for 18650 cells, reduces unnecessary cell movement and maintains a deliberate gap between neighboring metal cans. The result is a cleaner, more professional battery-module layout for prototype and repeat production. Current ARB listings and independent Indian battery-component sellers use the same commercial terms for this product class: 18650 cell holder, battery spacer, cell spacer and battery pack support bracket.

Durable insulating engineering plastic is widely used for this holder class because it provides lightweight mechanical support without forming a conductive path between adjacent cells. The holder keeps cell centers consistently arranged so nickel strip or other interconnects can be positioned more evenly during assembly. The spacing also leaves room for air movement around the cell group and helps reduce shell-to-shell rubbing in packs exposed to handling or vibration. The grid format gives production operators a clear row-by-column reference for cell placement and module kitting. In practical pack-building terms, it works as a 18650 cell holder 1x1, 18650 battery holder 1x1, lithium battery cell spacer, EV battery cell holder and battery pack spacer for organised cylindrical-cell module construction.

The CELL HOLDER 18650 (1X1) is intended for cells in the 18650 physical form factor. Selection is therefore based first on cell size and module geometry; the holder can support compatible lithium chemistries that use the same cylindrical format. Use the 1X1 version where the battery enclosure and interconnect plan are built around that layout, and use HEXA or L-type versions where the module design follows the corresponding specialized footprint. Pair the holder with suitable cell-end insulation, interconnect material, BMS, wiring and enclosure protection for the finished battery system.

Applications

• e-bike, e-scooter and light-EV battery packs.

• power-tool, robotics and portable-equipment battery modules.

• power-bank, UPS and compact backup battery assemblies.

• Battery production lines assembling 1X1 cell groups with repeatable spacing and polarity orientation.

• Prototype, repair and custom battery-pack projects requiring organised 18650 cell positioning before interconnection and enclosure assembly.

Installation Guide

Arrange the 18650 cells in the required polarity pattern and seat them evenly into the 1X1 holder without forcing the plastic. Where the pack uses holder pieces at both ends, keep the top and bottom patterns aligned so the cells remain parallel. Complete insulation and interconnection work only after the cell group is mechanically stable. Keep conductive tools controlled around exposed terminals and inspect the holder for cracks, pinched insulation or tilted cells before the battery module is closed inside its enclosure.

Why Choose ARB Accessories?

ARB Accessories supplies 18650 and other cylindrical cell holders together with lithium cells, BMS products, nickel strip, insulation paper, wires, connectors and battery-pack hardware for Indian pack assemblers, EV builders, solar and ESS manufacturers, service teams and custom projects. The CELL HOLDER 18650 (1X1) provides a ready-to-source mechanical spacer for organised battery-module construction and consistent BOM control across prototypes and repeat production.
