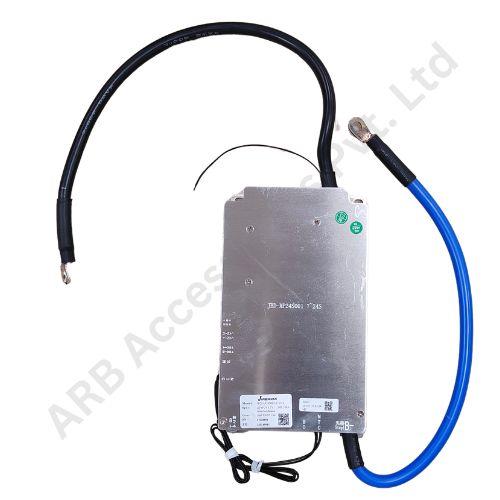

The BMS SMART JBD 200A WITH RELAY AP21S002 is a smart battery management system for a 7-21S LiFePO4 / Li-ion battery architecture with a 200A current class, giving lithium battery builders a dedicated protection and control layer for compatible packs. Buyers searching for JBD AP21S002 200A smart BMS, 7-21S battery management system, relay BMS, Bluetooth lithium BMS, CAN RS485 BMS and high-current EV battery BMS typically use this type of BMS in EV batteries, inverter batteries, solar energy-storage systems, backup batteries and custom lithium battery projects where chemistry, series count and load current must be matched correctly. Pack voltage depends on the selected 7S-21S configuration and chemistry profile.

A BMS supervises individual series groups and controls the pack power path when configured protection conditions are reached. Correct chemistry and series matching are essential because NMC and LiFePO4 cells use different voltage limits and sense-wire sequences. The BMS must work as part of the complete battery system with correctly sized cells, interconnects, cable, fuse, connectors and charger. A same-port design uses a shared main power path for charge and discharge, so the pack wiring and charger/load arrangement should be planned for that topology. Uart, rs485 and can can support commissioning and battery monitoring when the matching interface and protocol are used.

The core engineering parameters are the 7-21S configuration, LiFePO4 / Li-ion chemistry and 200A current class. Current capability should be evaluated together with cable cross-section, terminal resistance, crimp or weld quality, enclosure temperature, duty cycle and the pack's expected peak demand. A high-current BMS cannot correct undersized wiring, weak terminals or an incorrect charger profile, so the full DC path must be designed to stay within safe electrical and thermal limits.

Cell-sense wiring also requires careful handling. Each series group must be connected in the correct order and checked for correct voltage before the sense harness is attached. A reversed, skipped or misplaced sense lead can expose the electronics to an incorrect voltage sequence. During replacement work, compare the terminal layout, harness order and port arrangement with the existing pack before energizing the system.

Select this BMS by matching battery chemistry, exact series count, continuous and peak load current, charger voltage profile and physical wiring arrangement. Pack voltage depends on the selected 7S-21S configuration and chemistry profile. Confirm the actual cell specification and charger setting before commissioning. If monitoring or communication is required, match the exact display, Bluetooth, UART, RS485 or CAN accessory to the BMS version instead of assuming interfaces are interchangeable.

Applications

• Electric scooter, e-bike and electric motorcycle battery packs.

• Custom lithium battery packs for EV and mobility projects.

• Solar, inverter and stationary energy-storage battery systems.

• Battery repair, refurbishment and BMS replacement work.

• OEM, workshop and prototype lithium battery assemblies.

Installation Guide

Isolate the battery from the charger and load before fitting or replacing the BMS. Measure each series group, confirm polarity and verify total pack voltage before connecting the balance harness. Connect sense leads in the correct sequence and make the main current connections with secure, low-resistance joints and suitable strain relief. Keep the BMS insulated from loose metal, cell cans and conductive enclosure surfaces. After installation, perform a controlled charge and discharge check while monitoring pack voltage, current and temperature before applying the full intended load.

Why Choose ARB Accessories?

ARB Accessories focuses on lithium-battery, EV, energy-storage and battery-pack assembly components. The catalog brings together BMS boards, connectors, insulation materials, battery wiring, terminals, fuses, enclosures, testing equipment and assembly tools. For battery builders, repair workshops and OEM buyers, sourcing related components from one specialist catalog can make specification matching and procurement easier. Final suitability should still be checked against the exact battery design, equipment model and electrical requirements before installation.
