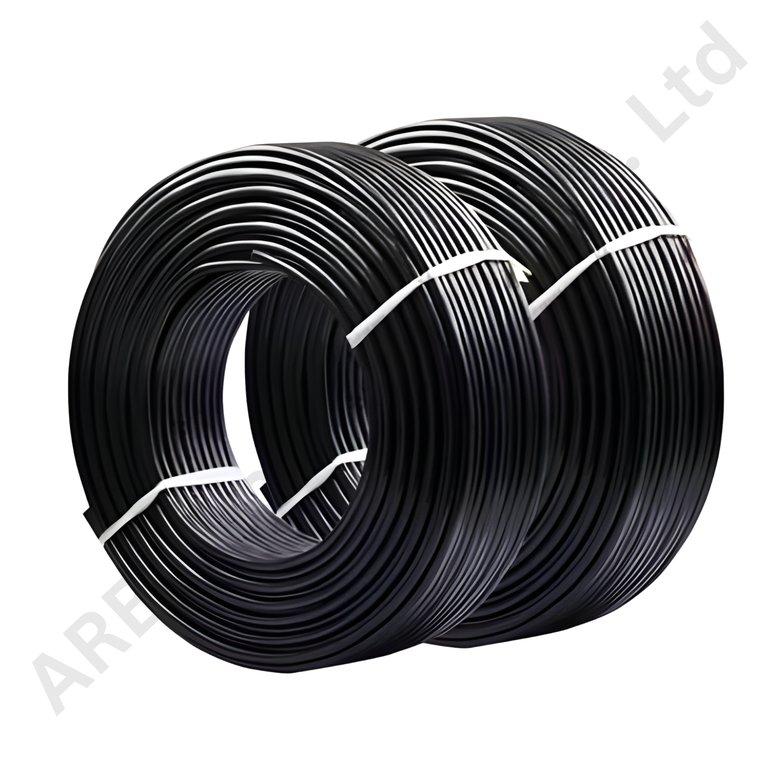

BATTERY DC WIRE 6 SQMM BLACK 100 MTR

Battery DC Wire 6 SQMM Black – 100 Meter Roll

The Battery DC Wire 6 SQMM Black – 100 Meter Roll is a larger-cross-section DC cable option for battery and electrical projects that require substantially more conductor area than 0.5, 0.75, 1 or 1.5 SQMM wiring. ARB lists the product as a 6 SQMM black battery DC wire in a 100 meter format, while comparable battery-component catalogs position 6 SQMM as part of the same size family used for battery-pack and DC distribution work.

A 6 mm² conductor provides lower resistance per meter than smaller conductor sizes when the conductor material and construction are otherwise comparable. That can make it useful for higher-load or longer-run circuits where voltage drop and conductor heating must be controlled. The correct application still depends on the actual cable construction, insulation rating, ambient temperature, duty cycle and installation method, so a fixed ampacity should not be copied from a generic chart without confirming the product specification.

The engineering advantage of 6 SQMM is its conductor area, but that does not create one universal current rating. Ampacity depends on conductor material, strand construction, insulation temperature rating, ambient temperature, cable bundling, enclosure ventilation, duty cycle and applicable standards. In battery systems, both positive and negative conductors should be sized for the actual load path, and the protective fuse or breaker should coordinate with the conductor and connected equipment.

Voltage drop should be calculated using the full current path and cable length. Larger cable can reduce loss, but the terminals and connectors must also support the intended current. A good cable terminated poorly can still create a high-resistance hot spot. Select lugs or terminals that are genuinely sized for 6 SQMM, use the correct crimp tooling and inspect the joint after crimping.

Use 6 SQMM only where the connector, terminal block, BMS power path, fuse system and enclosure can physically accept it. For lighter loads or compact control harnesses, smaller sizes are easier to route. For still higher-current systems, an even larger conductor may be required. If the project specifies a flame class, temperature rating, oil resistance or conductor standard, use the cable only when its documented construction meets that requirement.

Applications

• Battery-pack power wiring where a 6 SQMM conductor has been selected by electrical calculation.

• EV, ESS, inverter and solar DC circuits within the cable's documented operating limits.

• DC distribution links, battery enclosure wiring and compatible equipment power connections.

• Industrial control cabinets and custom power harnesses requiring a larger conductor cross-section.

• Production cable cutting from a 100-meter roll for repeated pack and harness builds.

Installation Guide

Cut the cable cleanly, strip only the length required by the terminal and avoid damaging strands. Use 6 SQMM-rated lugs or ferrules and a crimp tool designed for the terminal. Route the cable with an appropriate bend radius, protect it from sharp enclosure edges and secure heavy cable so its weight does not stress the terminal. Check fasteners after assembly according to the equipment manufacturer's torque guidance where applicable.
