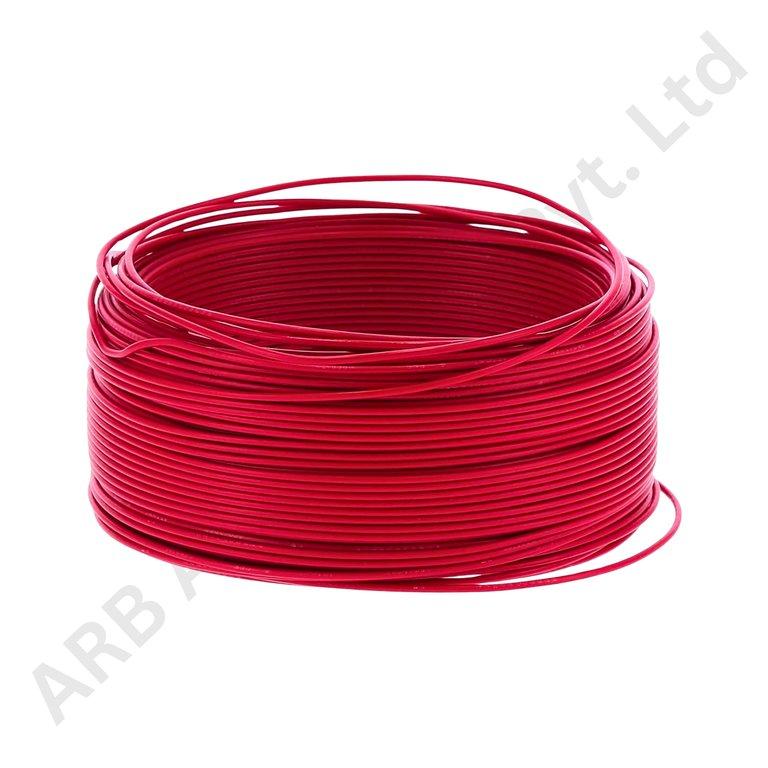

BATTERY DC WIRE 1SQMM RED 100 MTR

Battery DC Wire 1 SQMM Red 100 MTR

The Battery DC Wire 1 SQMM Red 100 MTR is a flexible DC electrical cable supplied for battery-pack assembly, BMS-related wiring, auxiliary power circuits, low-voltage equipment wiring, control panels, monitoring systems, and other compatible applications. Its primary specifications are a 1 square millimeter conductor cross-section, red insulation, and a 100-meter supply length.

A 1 SQMM conductor provides more conductor area than 0.5 or 0.75 SQMM wire of the same material, making it useful where the system design calls for a larger low-voltage conductor while still requiring easy routing through an enclosure or battery pack. The actual current that can safely be carried is not determined by cross-section alone. Conductor material, strand construction, insulation rating, cable length, ambient temperature, bundling, connection quality, and acceptable voltage drop all influence final cable selection.

Technical Details

For the same conductor material and length, increasing conductor cross-sectional area reduces electrical resistance. A 1 SQMM conductor therefore provides more conductive area than 0.5 or 0.75 SQMM wire, which can help control voltage drop in suitable DC circuits. A universal amp rating should not be inferred from cross-sectional area alone because safe current depends on conductor construction, insulation temperature rating, cable length, ambient temperature, bundling, terminal quality and the voltage-drop limit of the finished system. This is why wire size is selected as part of the complete electrical design rather than by one number in isolation.

Depending on the system design, this wire may be used for battery auxiliary connections, DC control wiring, BMS power or peripheral wiring, relay circuits, indicator wiring, monitoring equipment, charger-control circuits, small DC loads, equipment harnesses, and other electrical tasks where 1 SQMM is specified.

It should not be assumed to be suitable for the main current path of every lithium battery. High-current packs may require cable several times larger. The correct wire size is determined by the circuit current, run length, voltage-drop target, thermal conditions, protection device, and equipment requirements.

Red is widely used for positive DC conductors, but installers must follow the actual wiring diagram. In repair work especially, previous wiring may not follow normal color conventions. Confirm polarity electrically before making the final connection.

Applications

• Battery auxiliary power and compatible 1 SQMM DC wiring circuits.

• BMS power, peripheral and low-voltage control wiring.

• Relay circuits, indicator wiring and monitoring equipment connections.

• Charger-control circuits, small DC loads and equipment harnesses.

• Battery-pack production and service wiring where red 1 SQMM cable is specified.

Installation Guide

Select terminals rated for the wire size and conductor construction. Strip the insulation cleanly without nicking the strands. Use a correct crimp tool and die for crimp terminals, or an appropriate ferrule system when the wire is going into a screw-clamp terminal that calls for ferrules.

Support the cable near connectors to reduce flexing at the terminal. Protect it from sharp edges and abrasion. Avoid routing next to components that operate at temperatures beyond the insulation rating. Keep bend radius reasonable so the conductor is not repeatedly stressed.
