BATTERY DC WIRE 1SQMM BLACK 100 MTR

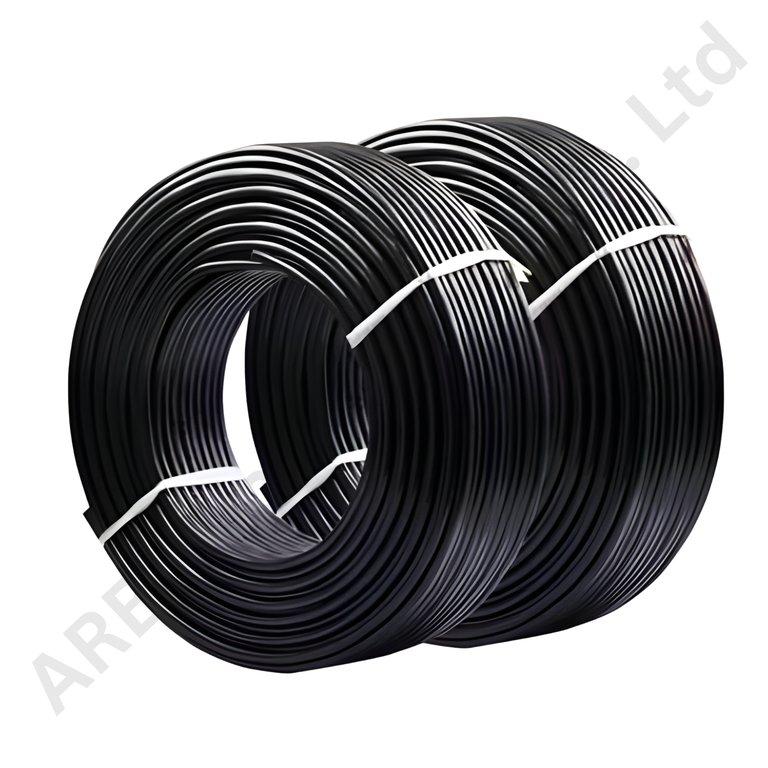

Battery DC Wire 1 SQMM Black – 100 Meter Roll

The Battery DC Wire 1 SQMM Black – 100 Meter Roll is a practical wiring size for low-voltage DC circuits, battery-pack assembly and equipment harness fabrication where a 1 mm² conductor cross-section is appropriate. The black insulation provides clear visual identification in organized wiring systems and is commonly used for negative or return conductors, although installers should always follow the wiring standard defined for the specific product or project.

The 1 SQMM size sits between smaller sensing/control conductors and larger power-cable sizes, making it a practical choice for auxiliary DC circuits, battery harnesses and equipment wiring when the calculated current and voltage-drop limits are suitable. The 100-meter roll format is convenient for repeated production cuts, workshop wiring and custom harness fabrication where consistent color identification is required.

Wire sizing should be based on allowable voltage drop and temperature rise, not on a single universal amp figure. The 1 SQMM cross-section has lower resistance per meter than smaller 0.5 or 0.75 SQMM conductors of the same material, but actual current capacity depends on conductor material, insulation temperature rating, ambient temperature, bundling, ventilation, duty cycle, run length and applicable electrical standards.

For longer DC runs, even modest current can create noticeable voltage drop. Designers should calculate the total loop length and expected load, then choose a wire size that keeps both conductor heating and voltage loss within the limits of the equipment. Terminal barrels, ferrules and crimp tools should also match the 1 SQMM conductor size. Do not force a 1 SQMM conductor into a terminal designed for a substantially different cross-section.

Compare 1 SQMM with neighboring sizes based on the circuit. Use smaller wire only where current and voltage-drop requirements permit. Step up to 1.5 SQMM, 2.5 SQMM, 4 SQMM or 6 SQMM when the load, run length or thermal environment requires more conductor area. Use an insulation type that meets the installation environment, especially near heat, chemicals or moving parts.

Applications

• Battery-pack auxiliary and low-voltage DC wiring where 1 SQMM conductor size is correctly sized.

• BMS power, control and accessory circuits that require more conductor area than small signal wiring.

• EV, solar and ESS auxiliary harnesses within the cable's electrical limits.

• Control panels, DC equipment and custom electrical enclosures.

• Production harness cutting and workshop wiring using a 100-meter supply roll.

Installation Guide

Use a wire stripper adjusted to the conductor size so strands are not cut or nicked. Crimp with terminals designed for 1 SQMM conductors and use a calibrated crimp tool where reliability is important. Route the cable away from sharp sheet-metal edges and high-temperature parts, add grommets or conduit where it passes through metal, and provide strain relief so vibration is not transferred into the terminal joint.
