BATTERY DC WIRE 1.5 SQMM BLACK 100 MTR

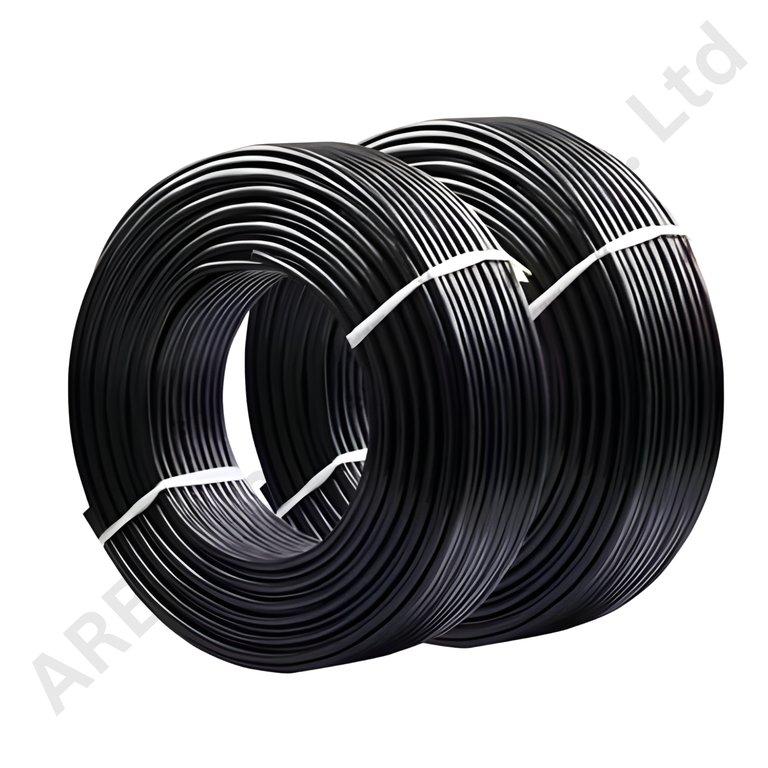

Battery DC Wire 1.5 SQMM Black – 100 Meter Roll

The Battery DC Wire 1.5 SQMM Black – 100 Meter Roll is intended for low-voltage DC wiring and battery-related electrical assemblies where a 1.5 mm² conductor cross-section is suitable. Compared with smaller 0.5, 0.75 and 1 SQMM wire sizes, the larger conductor area can reduce resistance and voltage drop for the same conductor material and length. That makes 1.5 SQMM a useful step-up size for auxiliary power feeds, control circuits and other wiring runs that need more conductor area without moving to heavy battery cable.

The black insulation supports clear circuit identification and is commonly assigned to negative or return wiring in DC systems. It should still be used according to the wiring diagram and color convention of the equipment being built. The 100 meter roll format is convenient for workshops, battery-pack production, custom harness fabrication and control-panel assembly where installers need to cut repeatable lengths from one continuous supply.

The 1.5 SQMM conductor area should be treated as an engineering input, not as a fixed amp rating. Cable ampacity changes with conductor material, insulation temperature class, ambient temperature, cable bundling, enclosure ventilation, duty cycle and installation method. Designers should calculate expected load current and total conductor length, then evaluate both voltage drop and thermal rise.

For DC battery systems, voltage drop can become important even at relatively low system voltages because a small loss represents a larger percentage of the available voltage. Increasing conductor area can reduce resistance, but oversized wire can also create practical problems if the terminal, connector or routing channel is not designed for it. Use terminals, lugs or ferrules that accept 1.5 SQMM conductors correctly, and crimp them with a tool matched to the terminal style.

Choose 1.5 SQMM where the calculated load and run length justify it. For lighter control or sensing circuits, 0.5, 0.75 or 1 SQMM may be easier to route. For higher-current or longer runs, 2.5, 4 or 6 SQMM may be more appropriate. For applications with defined temperature, flame, oil or chemical-resistance requirements, select the cable according to the documented insulation and conductor specification required by the project.

Applications

• Battery-pack and auxiliary DC wiring where 1.5 SQMM conductor size meets the load calculation.

• BMS, control, charger and accessory circuits requiring a larger cross-section than 1 SQMM wiring.

• EV, solar, inverter and ESS wiring within the cable's electrical limits.

• Control cabinets, equipment harnesses and custom DC assemblies.

• Production and workshop cable cutting from a 100-meter supply roll.

Installation Guide

Strip insulation using a correctly sized tool so individual strands are not damaged. Use terminals sized for 1.5 SQMM and verify the completed crimp mechanically. Protect wires from sharp edges with grommets or conduit, maintain separation from high-temperature surfaces and secure the harness with suitable clamps or ties so vibration does not load the terminal connection.

Why Choose ARB Accessories?

ARB Accessories focuses on lithium-ion batteries, ESS and EV components for B2B buyers across India. Its product range includes wiring, BMS products, connectors, terminals, battery-pack materials, testing equipment and production machinery, making it practical to source several related assembly items from one catalog.
