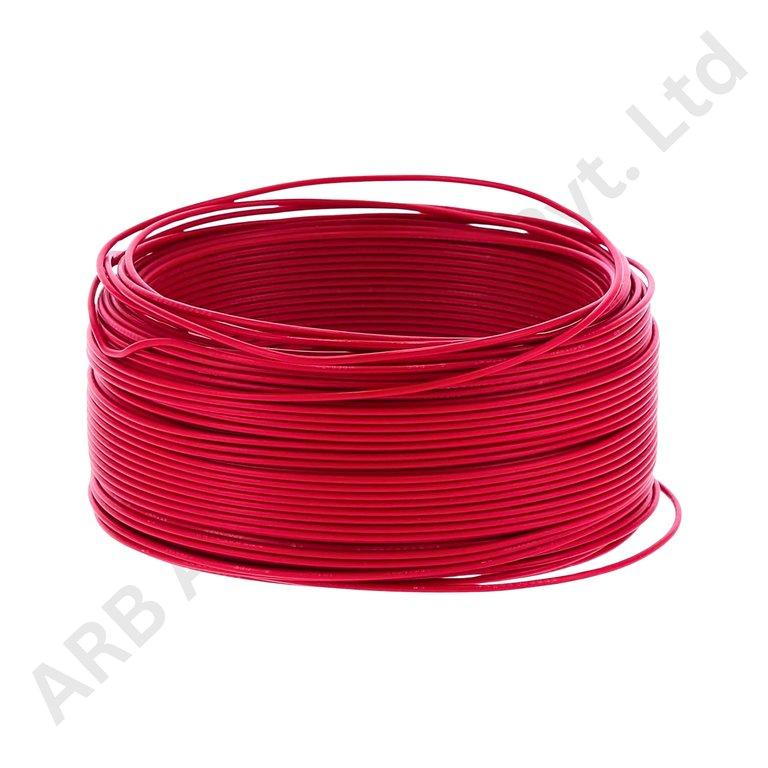

BATTERY DC WIRE 0.75 SQMM RED 100MTR

Battery DC Wire 0.75 SQMM Red 100 MTR

The Battery DC Wire 0.75 SQMM Red 100 MTR is a flexible DC wiring cable supplied for battery-pack assembly, BMS-related circuits, control wiring, auxiliary DC connections, monitoring circuits, and other compatible electrical applications. The item is defined by a 0.75 square millimeter conductor cross-section, red insulation, and a 100-meter supply length, giving battery builders a repeatable wire size for workshop and production use.

Compared with a 0.5 SQMM conductor of the same material and construction, 0.75 SQMM provides a larger conductive cross-section. That can be useful where the circuit designer wants additional conductor area while still keeping the wire relatively compact and easy to route. It does not, however, create a universal amp rating. Allowable current depends on conductor material, strand construction, insulation temperature rating, cable length, ambient temperature, bundling, termination quality, and the applicable electrical standard.

Technical Details

Conductor cross-section directly affects resistance and voltage drop. For the same conductor material and length, a 0.75 SQMM wire offers more conductive area than 0.5 SQMM wire, which can reduce resistance in a circuit when compared under the same conditions. The final current-carrying capability still depends on conductor construction, insulation temperature class, cable length, bundling, ambient temperature, termination quality and allowable voltage drop. In battery and BMS harnesses, this makes the 0.75 SQMM size useful where the design needs more conductor area than very light signal wire while retaining a compact, flexible routing format.

The 0.75 SQMM red wire can be considered for compatible battery-management wiring, voltage-sense circuits, auxiliary feeds, low-voltage control wiring, indicator circuits, relay-control wiring, equipment harnesses, and other applications where the electrical design specifies this conductor size. It can also be paired with a black 0.75 SQMM conductor where the project uses red and black to distinguish positive and negative DC paths.

The product should not be represented as suitable for every battery power connection. Main battery leads can carry much higher current and may require substantially larger conductors. Use the actual circuit current and voltage-drop requirement to choose the conductor size.

Red is commonly used for positive conductors in DC battery systems, but the system wiring diagram remains the final authority. Do not connect by color alone during repair work. Verify polarity with the equipment documentation and test instruments where appropriate.

Applications

• Battery-management wiring and compatible BMS auxiliary circuits.

• Voltage-sense, indicator and low-voltage control connections.

• Relay-control wiring and equipment harness fabrication.

• DC positive-path wiring where red insulation is used for identification.

• Battery-pack production and service work requiring 0.75 SQMM red wire in a 100-meter roll.

Installation Guide

Use terminals intended for the actual 0.75 SQMM conductor construction. Strip insulation carefully and avoid removing or cutting strands. If crimp contacts are used, select the correct crimp die and verify that the conductor and insulation crimps are secure. Pull-test representative production crimps where appropriate.

Route the cable away from sharp edges and high-temperature surfaces. Use cable ties, sleeving, channels, or harness tape where suitable, but avoid overtightening ties so much that the insulation is deformed. At enclosure pass-throughs, use suitable edge protection or grommets.
