ANL FUSE 40A

ANL Fuse 40A

The ANL Fuse 40A is a bolt-in style overcurrent protection component intended for compatible battery and DC electrical circuits where a 40-amp fuse rating is required by the system design. ANL-format fuses are commonly used in battery installations, inverter wiring, automotive and mobility systems, solar and backup-power assemblies, and other DC power circuits because they provide a replaceable protection point between a power source and downstream wiring or equipment.

The most important verified product characteristic in the name is the 40A current rating. A fuse should be selected to protect the conductor and connected circuit, not simply to match the highest current a battery can theoretically deliver. In a correctly designed installation, the fuse rating, cable size, expected continuous current, short-duration surge current, fuse holder, voltage rating, and downstream equipment requirements are considered together.

Technical Details

A fuse is installed in series with the conductor it is intended to protect. Under normal operating conditions, current passes through the fuse. If an overcurrent condition causes the fuse element to operate, the circuit opens and current flow is interrupted. The exact opening time depends on the fuse design and the magnitude of the overcurrent; a fuse should therefore never be described as an electronic current limiter or resettable protection device.

The fuse is normally positioned so that the length of unprotected conductor from the power source is minimized, subject to the equipment manufacturer's installation instructions and applicable electrical practice. In battery systems, this is particularly important because a battery can deliver high fault current into a short circuit.

Do not choose a 40A fuse only because the connected device is described as ""40A."" Determine the maximum normal operating current, expected inrush or surge behavior, cable current-carrying capability, system voltage, fuse time-current characteristic, and the equipment manufacturer's recommendation. The fuse voltage rating must also be suitable for the DC system voltage. A fuse with an unsuitable voltage rating may not safely interrupt a fault even if its current rating appears correct.

Applications

• Lithium battery pack main or branch circuits designed around a 40A ANL fuse.

• DC distribution systems requiring replaceable overcurrent protection.

• Inverter and solar battery feed circuits with correctly matched cable sizing.

• Automotive, mobility and auxiliary DC power installations.

• Battery test setups and other protected DC branches specified for 40A ANL protection.

Installation Guide

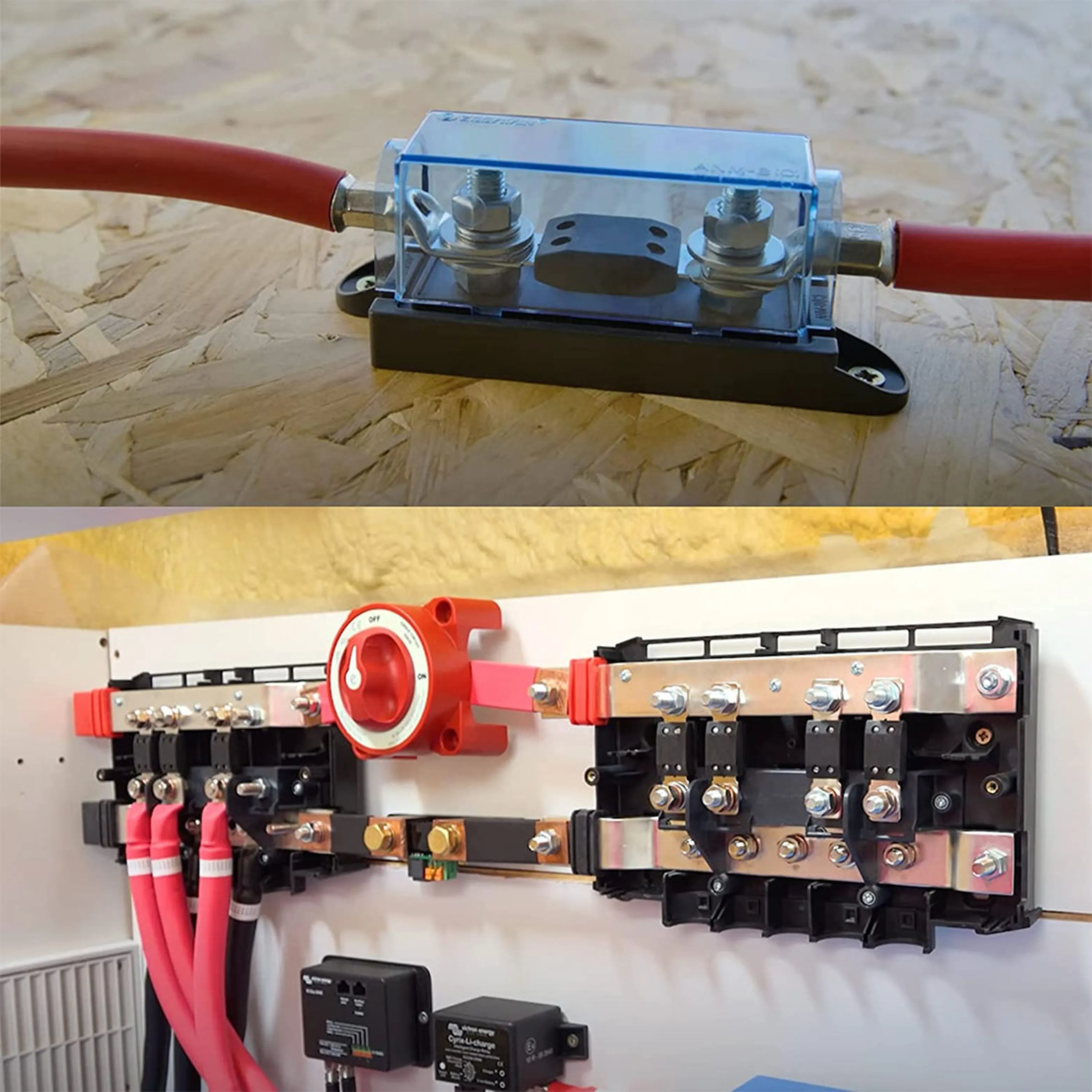

Use a fuse holder that is specifically compatible with the ANL form factor and system current. Disconnect and isolate the power source before installation. Keep mounting surfaces clean and tighten the fuse connections to the holder manufacturer's specified torque. Loose connections can create unwanted resistance and heating even when the fuse rating itself is correct.

If a fuse opens, identify and correct the cause before replacing it. Never bridge the fuse with wire, metal foil, or a higher-rated fuse simply to restore operation. Replace it with the correct type and rating specified for the circuit.
