5V 60A SQUARE BATTERY CAPACITY CABINET SKXD-5V60A-8CH

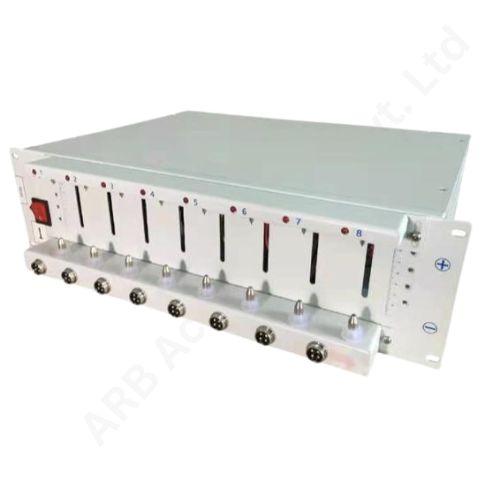

SunkaLead SKXD-5V60A-8CH Prismatic Cell Capacity Testing Cabinet

The SunkaLead SKXD-5V60A-8CH is a 5V-class, 60A battery cell capacity tester offered in an eight-channel configuration for suitable prismatic cells. It supports controlled charge-discharge evaluation where the required test current exceeds that of lower-current cell cabinets.

For a battery assembler, the useful result is a measured capacity and a traceable test record obtained under known conditions. The headline current rating alone does not determine whether a cell is suitable for a pack. Compare results only when the test method, temperature and acceptance limits are consistent.

The testing platform provides programmable charging and discharging sequences, with computer-based review of operating data and curves. Capacity evaluation records the electrical quantity delivered during the defined test rather than estimating capacity from open-circuit voltage alone. This makes the equipment relevant to incoming inspection and controlled comparison of approved cell batches.

The 60A rating identifies a current class, not a 60Ah cell-capacity limit. A cell with a different capacity may be tested when its permitted current, voltage range and connection requirements match the equipment. Test duration depends on the selected procedure and the cell's response.

Keep each measurement channel linked to a physical sample. A grading decision should be based on the completed record and approved acceptance criteria; software capacity grading is not the same as mechanically moving cells into separate sorting bins.

Select fixtures and leads for the actual prismatic cell terminal, dimensions and intended current. Check that the contact arrangement supports stable measurement throughout the test without imposing unsuitable mechanical loads on the terminals. Cells with similar capacities can still require different fixtures or connection hardware.

Compare both the upper charging limit and the required discharge endpoint with the ordered equipment's operating ranges. Discuss the exact eight-channel configuration, site power requirements, software access and supplied accessories in the purchase specification. Provide the required reporting fields and acceptance method so that commissioning demonstrates the intended workflow rather than only showing that the cabinet powers on.

Applications

• Capacity evaluation of suitably rated prismatic cells.

• Incoming cell-batch comparison for battery manufacturers.

• Higher-current testing under an approved cell procedure.

• Development of repeatable charge-discharge test recipes.

• Recording cell performance before module assembly.

Installation Guide

Have qualified personnel install the cabinet with the electrical services, protective earth and clearances specified for the supplied configuration. Use correctly rated leads and approved terminal connections, and maintain the required airflow around both the equipment and test samples. Follow the cell manufacturer's handling and connection instructions.

Commission a small approved sample set before loading production batches. Verify polarity, programmed limits, channel identification and the resulting records. Keep the accepted recipe with the test data and maintain a documented calibration and contact-inspection schedule. Stop any channel showing abnormal cell behaviour, a deteriorating connection or an unexpected result, and investigate before resuming.

Why Choose ARB Accessories?

ARB Accessories brings together battery cells, testing equipment, BMS boards, connectors and assembly consumables for Indian battery businesses. Discuss the cell specification, test current and fixture requirement together when selecting this machine. Coordinating these requirements through a specialist battery-production catalog helps procurement teams prepare a clearer enquiry and avoid ordering equipment solely by its headline channel count.
