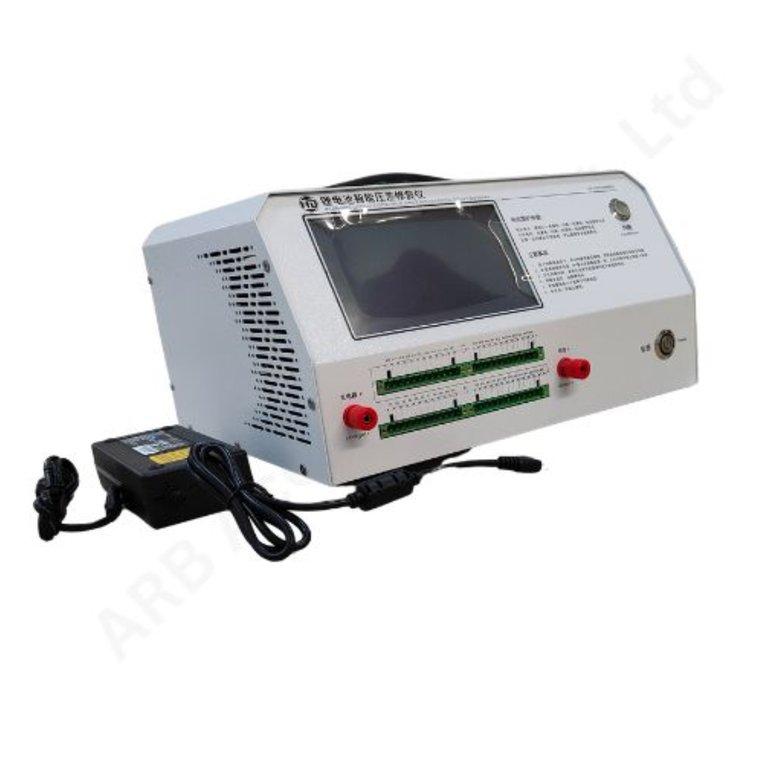

48S 7A Int Automatic Equalizer Without Adapter XY-FD07AS48CK

48S 7A Int Automatic Equalizer Without Adapter XY-FD07AS48CK

48S 7A Int Automatic Equalizer Without Adapter XY-FD07AS48CK is an intelligent automatic battery equalizer designed to manage voltage differences across series-connected lithium battery cells. Its 48S configuration makes it suited to multi-series battery packs, while the 7A balancing-current class identifies the balancing capability selected for this product. The XY equalizer range uses automatic voltage equalization and active energy transfer to move energy between higher-voltage and lower-voltage cells, helping a pack maintain more consistent cell voltages through its service life. This SKU is supplied without an external adapter, so its power arrangement is planned separately.

Automatic active equalization addresses voltage spread between cells without requiring a technician to manually balance each group throughout the process. The equalizer monitors cell-voltage differences and initiates balancing as needed, transferring energy from cells at higher voltage toward cells at lower voltage. Compared with passive balancing, which dissipates excess energy as heat, energy transfer keeps more of the transferred energy within the battery system.

The XY-FD07AS48CK listing identifies this model as a 48S unit with a 7A current class. That configuration makes it relevant to battery systems used in stationary storage, backup power, electric mobility and industrial equipment. In the higher-current XY-FD14AS24CK version, the product listing also identifies reverse-connection, overvoltage, low-voltage and misconnection protections, along with an external power input. These model-specific functions support consistent service and integration when the equalizer is installed using its designated wiring plan.

The listed 'Without Adapter' configuration means the external adapter is not part of the supplied listing. Correct power input, voltage, polarity and harness selection are essential for any active equalizer, especially in higher-series-count systems. A battery balancer works alongside the pack's BMS and protection hardware; it is not a substitute for the BMS, charger or pack-level electrical protection.

Select the XY equalizer according to the pack series count, balancing-current requirement and the exact electrical interface. The 24S models serve compatible 24-series lithium battery systems, while the XY-FD07AS48CK is listed for 48S installations. This distinction matters because the number of series groups determines the balance-lead arrangement and the pack voltage at the interface. The XY-FD07AS48CK is the model identifier to use when matching a wiring harness or replacing an existing unit.

The automatic equalization platform is suited to Li-ion and LiFePO₄ battery systems, with chemistry and per-cell voltage limits following the model specification. Match power input, connection protections and balance wiring to the installation design. Since the listing is without an external adapter, select the approved power arrangement shown in the model documentation; do not substitute a supply based only on plug fit.

Applications

• 48-series battery banks used in compatible industrial and stationary energy-storage systems.

• Large solar and inverter storage installations designed around the unit's documented pack configuration.

• High-series-count lithium battery assemblies used in industrial equipment and backup-power applications.

• Battery service workshops that manage 48S strings with a matching wiring harness and power arrangement.

• Pack integration and maintenance projects that benefit from automatic equalization across many series groups.

Installation Guide

Install the XY-FD07AS48CK with the pack isolated from loads and chargers. Check the battery's series count, chemistry and voltage range, then route the balance harness in the sequence shown in the wiring diagram. Confirm polarity and cell-group order before connecting the harness to the equalizer. The model is listed without an adapter, so use the specified power-input arrangement and voltage for the selected unit. Insulate exposed terminals, secure cables away from sharp edges and monitor initial operation for correct cell readings. Stop work if the pack, connector or wiring shows abnormal heating or damage. Installation should be performed by a technician trained to work on high-energy battery systems.
