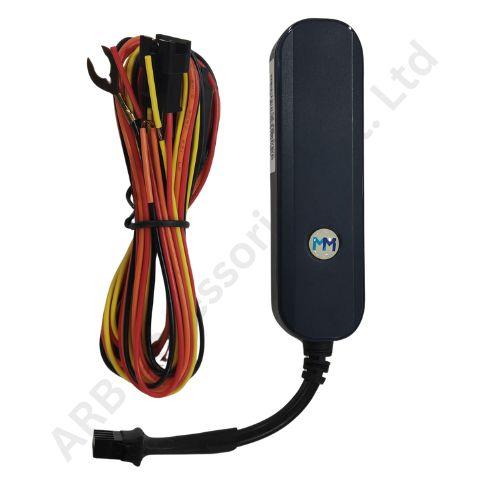

2G GPS DEVICE FOR HARDWARE BMS

2G GPS DEVICE FOR HARDWARE BMS

The 2G GPS Device for Hardware BMS is a communication and location-tracking accessory designed for compatible battery-management systems that support an external GPS/GSM module. It combines 2G mobile-network communication with GPS positioning so supported location and battery information can be transmitted to an application, server or monitoring platform rather than being available only at the battery itself.

This type of accessory is particularly useful in electric two-wheelers, e-scooters, rental fleets and distributed battery assets where the owner needs to know where the vehicle or battery is operating. Depending on the exact BMS and software platform, remote information may include position plus selected battery parameters or alarms. Those software functions are system-dependent, so they should not be promised universally from the GPS unit alone.

The module uses 2G GSM connectivity together with GPS positioning to create a remote communication link between a compatible hardware BMS and the supported monitoring platform. GPS provides location data, while LBS-assisted positioning can help maintain approximate location information when satellite reception is limited. GPRS or SMS-based communication may be used by the connected system to transmit supported battery and location data.

The module operates as an add-on communication layer rather than as the battery-protection device itself. The BMS continues to measure and protect the battery, while the GPS/GSM accessory provides a path for remote visibility. Reliable operation depends on correct BMS protocol matching, a compatible SIM service, stable 2G network coverage and correct antenna placement. This makes the device particularly useful for battery fleets, e-scooters and mobile energy assets that need location-aware monitoring.

Select this accessory by BMS compatibility first, not only by connector shape. Confirm that the hardware BMS exposes the communication port and protocol required by the module. Also confirm the connector pinout, supply voltage provided by the BMS, SIM format, 2G coverage and the software or cloud platform expected to receive data. If the application needs 4G/LTE or NB-IoT, this 2G-specific device should not be treated as an equivalent substitute.

Applications

1. Electric scooter and e-bike tracking

2. Battery fleet monitoring

3. Shared-mobility battery systems

4. Smart lithium battery packs

5. Remote asset-location projects

6. Battery service and field diagnostics where supported by the BMS platform

Installation Guide

Power down the battery system before connecting the module. Verify the communication connector and pinout from the BMS documentation or supplied harness, then install the SIM and activate the required network service before field deployment. Mount the GPS unit where the antenna can receive a usable signal and where the enclosure does not expose it to moisture, impact or excessive heat beyond the product's confirmed rating. After installation, test both location reporting and battery-data communication before the vehicle or battery is released for use.
