24S 5A Int Automatic Equalizer Without Adapter

24S 5A Int Automatic Equalizer Without Adapter

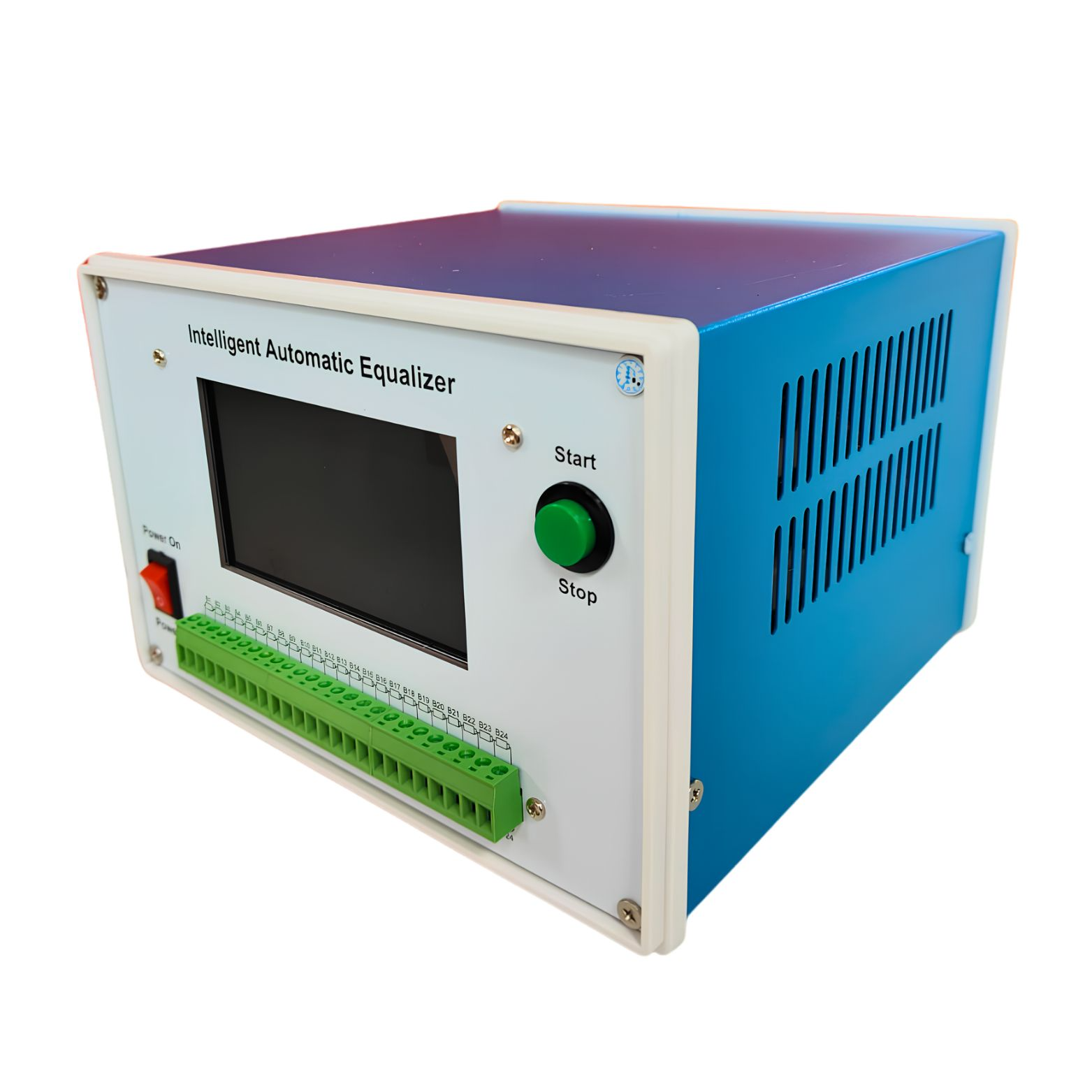

24S 5A Int Automatic Equalizer Without Adapter is an intelligent automatic battery equalizer designed to manage voltage differences across series-connected lithium battery cells. Its 24S configuration makes it suited to multi-series battery packs, while the 5A balancing-current class identifies the balancing capability selected for this product. The XY equalizer range uses automatic voltage equalization and active energy transfer to move energy between higher-voltage and lower-voltage cells, helping a pack maintain more consistent cell voltages through its service life. This SKU is supplied without an external adapter, so its power arrangement is planned separately.

Automatic active equalization addresses voltage spread between cells without requiring a technician to manually balance each group throughout the process. The equalizer monitors cell-voltage differences and initiates balancing as needed, transferring energy from cells at higher voltage toward cells at lower voltage. Compared with passive balancing, which dissipates excess energy as heat, energy transfer keeps more of the transferred energy within the battery system.

The listed 'Without Adapter' configuration means the external adapter is not part of the supplied listing. Correct power input, voltage, polarity and harness selection are essential for any active equalizer, especially in higher-series-count systems. A battery balancer works alongside the pack's BMS and protection hardware; it is not a substitute for the BMS, charger or pack-level electrical protection.

Select the XY equalizer according to the pack series count, balancing-current requirement and the exact electrical interface. The 24S models serve compatible 24-series lithium battery systems, while the XY-FD07AS48CK is listed for 48S installations. This distinction matters because the number of series groups determines the balance-lead arrangement and the pack voltage at the interface. The Model code not shown in supplied title is the model identifier to use when matching a wiring harness or replacing an existing unit.

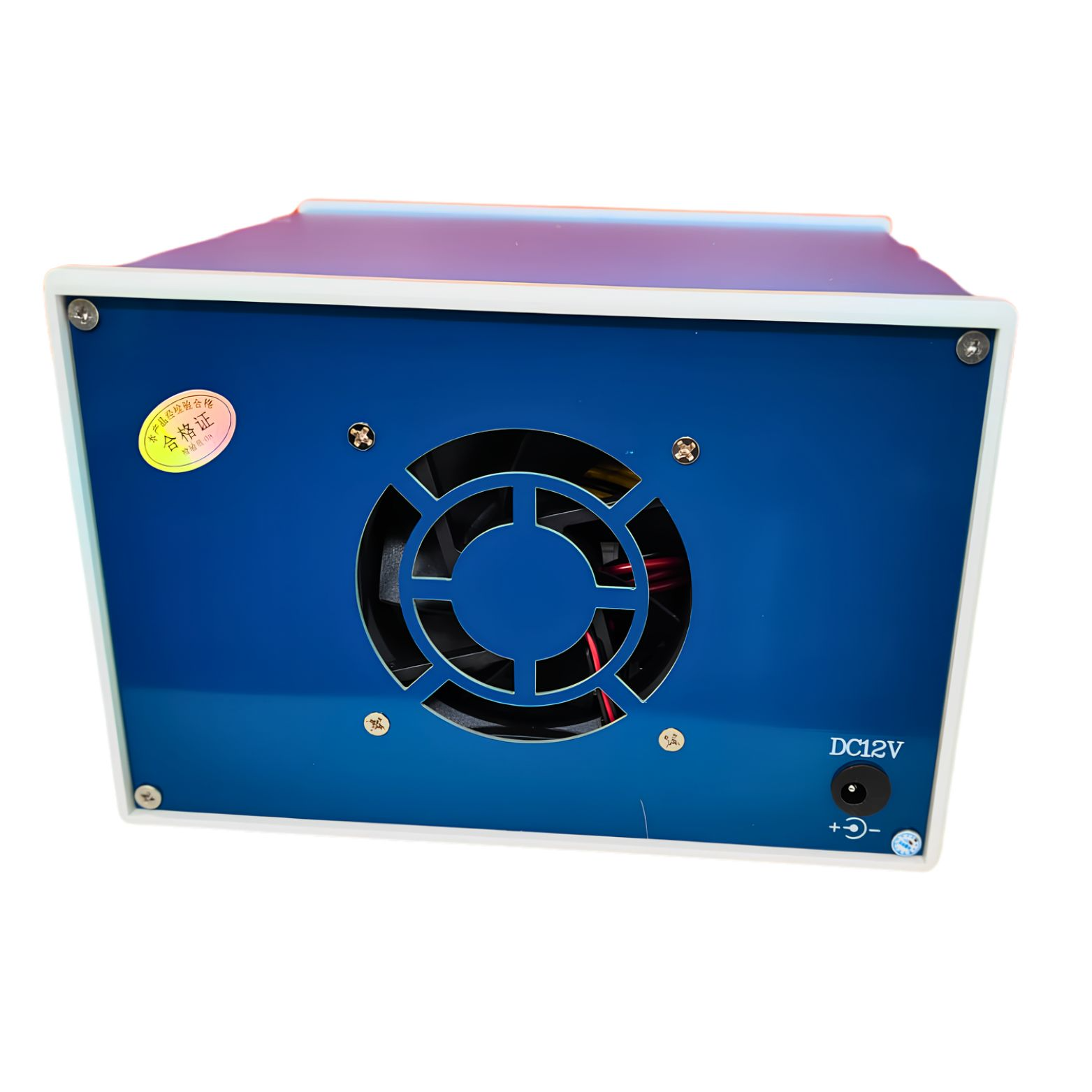

The automatic equalization platform is suited to Li-ion and LiFePO₄ battery systems, with chemistry and per-cell voltage limits following the model specification. Match power input, connection protections and balance wiring to the installation design. Since the listing is without an external adapter, select the approved power arrangement shown in the model documentation; do not substitute a supply based only on plug fit.

Applications

• Automatic balancing of 24S lithium battery systems in compatible storage, mobility and industrial installations.

• Solar energy-storage packs and inverter battery banks that need ongoing cell-voltage equalization.

• Electric-vehicle and e-rickshaw packs with the series count and wiring arrangement supported by the equalizer.

• UPS and telecom backup battery systems where consistent cell voltages support usable pack capacity.

• Battery assembly and service benches that require automated equalization rather than manual cell-by-cell correction.

Installation Guide

Install the Model code not shown in supplied title with the pack isolated from loads and chargers. Check the battery's series count, chemistry and voltage range, then route the balance harness in the sequence shown in the wiring diagram. Confirm polarity and cell-group order before connecting the harness to the equalizer. The model is listed without an adapter, so use the specified power-input arrangement and voltage for the selected unit. Insulate exposed terminals, secure cables away from sharp edges and monitor initial operation for correct cell readings. Stop work if the pack, connector or wiring shows abnormal heating or damage. Installation should be performed by a technician trained to work on high-energy battery systems.
